product origin:
Anhuibrand:
pvcellschainitem no.:
SUN1000G3-EU-230shipping port:
Shanghai Port or Any other Port in Chinapayment:
EXW, FOB, CIF, CFR, DDU, DAT, DAP, etc.,Power:
1000wVoltage:
230V/ 0.85Un-1.1Un
Specification
|
|
SUN500G3-EU-230
|
SUN600G3-EU-230
|
SUN800G3-EU-230
|
SUN1000G3-EU-230
|
SUN1300
G3-EU-
230
|
SUN1600G3-EU-
230
|
SUN2000
G3-EU-230
|
|
Input Data (DC)
|
|||||||
|
Recommended input Power(STC)
|
210~600W (1 Piece)
|
210~400W (2 Pieces)
|
210~500W (2 Pieces)
|
210~600W (2 Pieces)
|
210~400W (4 Pieces)
|
210~500W (4 Pieces)
|
210~600W (4 Pieces)
|
|
Maximum input DC Voltage
|
60V
|
||||||
|
MPPT Voltage Range
|
25~55V
|
||||||
|
Full Load DC Voltage Range (V)
|
40~55V
|
24.5~55V
|
33~55V
|
40~55V
|
26.5~55V
|
33~55V
|
40~55V
|
|
Max. DC Short Circuit Current
|
19.5A
|
2×19.5A
|
4×19.5A
|
||||
|
Max. input Current
|
13A
|
2×13A
|
4×13A
|
||||
|
No.of MPP Trackers
|
1
|
2
|
4
|
||||
|
No.of Strings per MPP Tracker
|
1
|
||||||
|
Output Data (AC)
|
|||||||
|
Rated output Power
|
500W
|
600W
|
800W
|
1000W
|
1300W
|
1600W
|
2000W
|
|
Rated output Current
|
2.2A
|
2.6A
|
3.5A
|
4.4A
|
5.7A
|
7A
|
8.7A
|
|
Nominal Voltage / Range (this may
vary with grid standards) |
230V/0.85Un-1.1Un
|
||||||
|
Nominal Frequency / Range
|
50 / 60Hz
|
||||||
|
Extended Frequency / Range
|
45~55Hz / 55~65Hz
|
||||||
|
Power Factor
|
>0.99
|
||||||
|
Maximum units per branch
|
10
|
8
|
6
|
5
|
4
|
4
|
3
|
|
Mechanical Data
|
|||||||
|
Ambient Temperature Range
|
-40~65℃
|
||||||
|
|
189W×184H×31.5D (Without mounting bracket and cable)
|
212W×230H×40D (Without mounting bracket and cable)
|
267W×300H×42D (Without mounting bracket and cable)
|
||||
|
Weight (kg)
|
2.15
|
3.15
|
5.2
|
||||
|
Cooling
|
Natural cooling
|
||||||
|
Enclosure Environmental Rating
|
IP67
|
||||||
|
Features
|
|||||||
|
Compatibility
|
Compatible with 60~72 cell PV modules
|
||||||
|
Communication
|
Power line / WIFI / Zigbee
|
||||||
|
Grid Connection Standard
|
EN50549-1, VDE0126-1-1, VDE 4105, ABNT NBR 16149, ABNT NBR 16150, ABNT NBR 62116,
RD1699, UNE 206006 IN, UNE 206007-1 IN, IEEE1547
|
||||||
|
Safety EMC / Standard
|
UL 1741, IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-2, IEC61000-3-3
|
||||||
|
Warranty
|
10 years
|
||||||

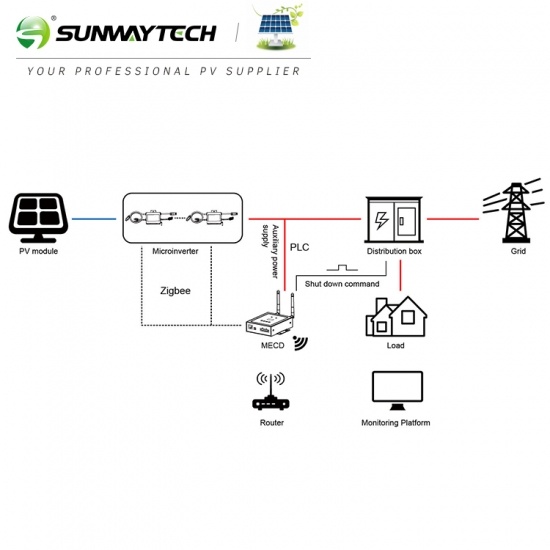

Typical System Diagram
This series microinverter come with built-in WIFI module so that it can communicate with router directly

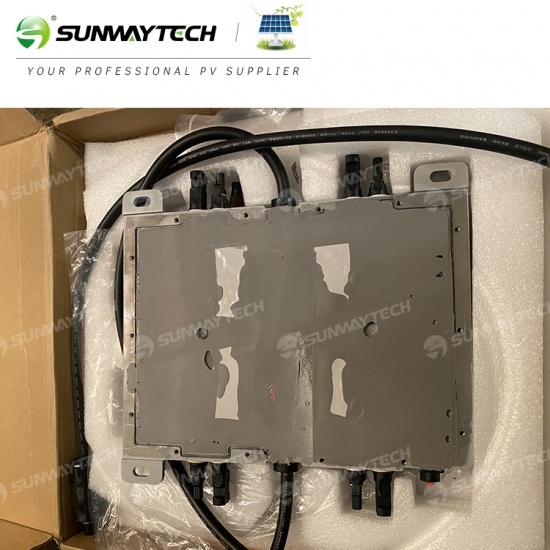

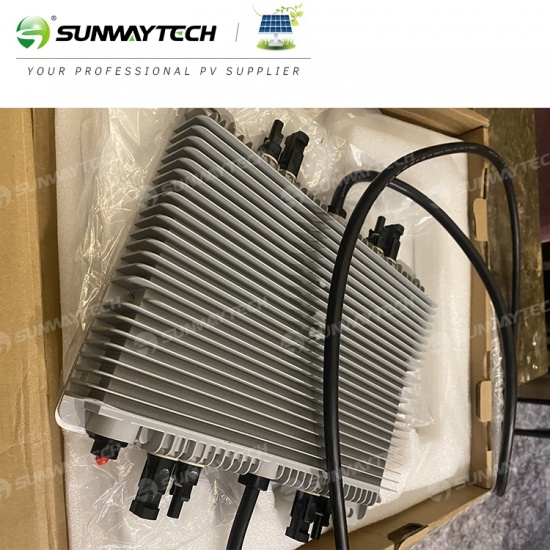

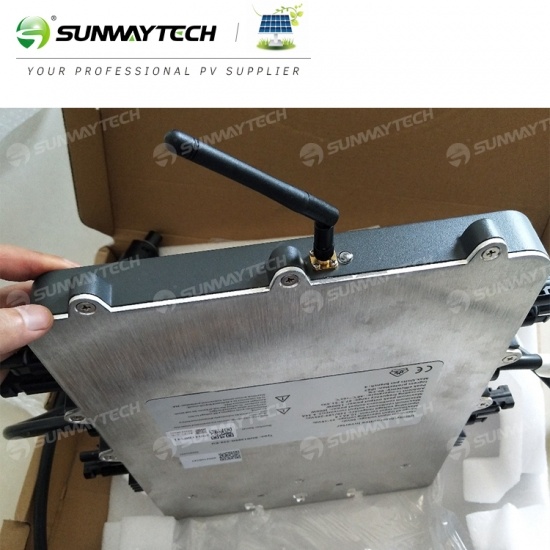

Product Packaging
Project Case
Deye microinverters power ranges from 300W to 2000W, and it comes with different output voltage 220V/230V/127V. It supports multiple communication methods WIFI/PLC/Zigbee. Thanks to the MECD, communication gateway, the microinverter can be turned off remotely and immediately.
Deye microinverters power ranges from 300W to 2000W, and it comes with different output voltage 220V/230V/127V. It supports multiple communication methods WIFI/PLC/Zigbee. Thanks to the MECD, communication gateway, the microinverter can be turned off remotely and immediately.
Deye microinverters power ranges from 300W to 2000W, and it comes with different output voltage 220V/230V/127V. It supports multiple communication methods WIFI/PLC/Zigbee. Thanks to the MECD, communication gateway, the microinverter can be turned off remotely and immediately.
Deye microinverters power ranges from 300W to 2000W, and it comes with different output voltage 220V/230V/127V. It supports multiple communication methods WIFI/PLC/Zigbee. Thanks to the MECD, communication gateway, the microinverter can be turned off remotely and immediately.
Deye microinverters power ranges from 300W to 2000W, and it comes with different output voltage 220V/230V/127V. It supports multiple communication methods WIFI/PLC/Zigbee. Thanks to the MECD, communication gateway, the microinverter can be turned off remotely and immediately.
Deye microinverters power ranges from 300W to 2000W, and it comes with different output voltage 220V/230V/127V. It supports multiple communication methods WIFI/PLC/Zigbee. Thanks to the MECD, communication gateway, the microinverter can be turned off remotely and immediately.
