brand:
pvcellschainitem no.:
SUNPAX 5.5KPower:
5.5KW/5500WVoltage:
230VACCertificate:
CEPayment:
T/T, L/C, Alipay, Paypal, Western UnionWarranty:
1 Year

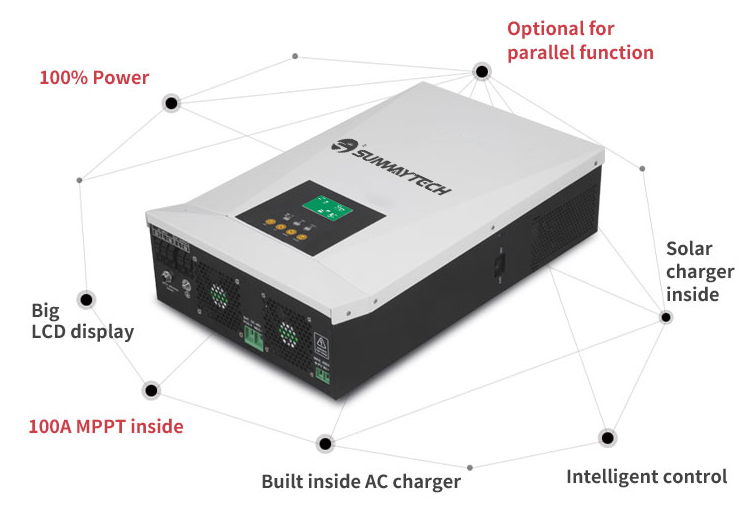

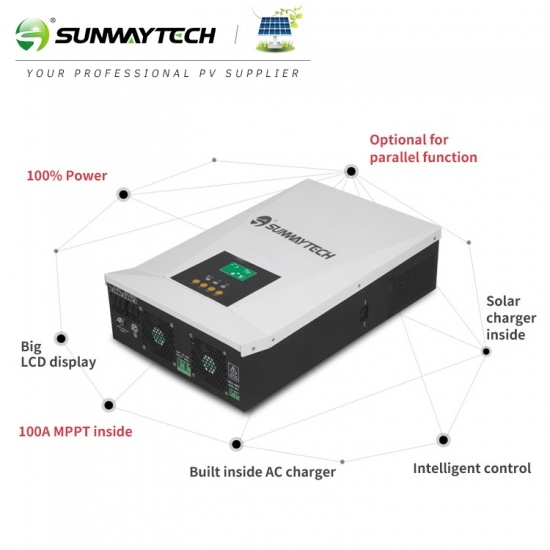

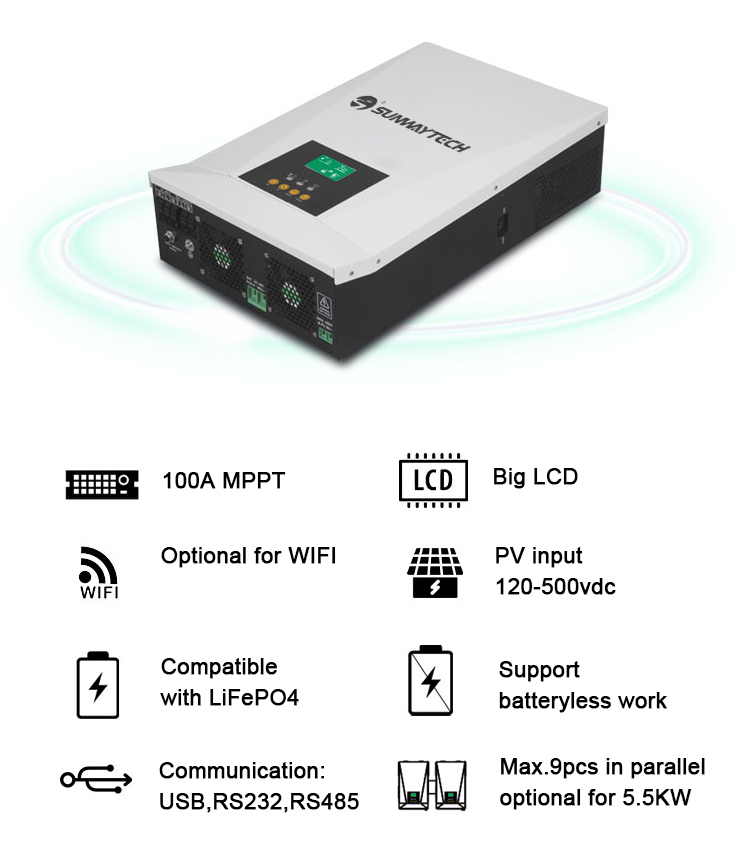

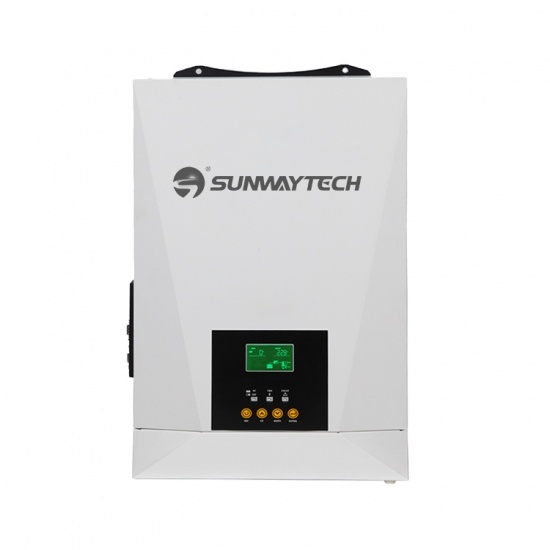

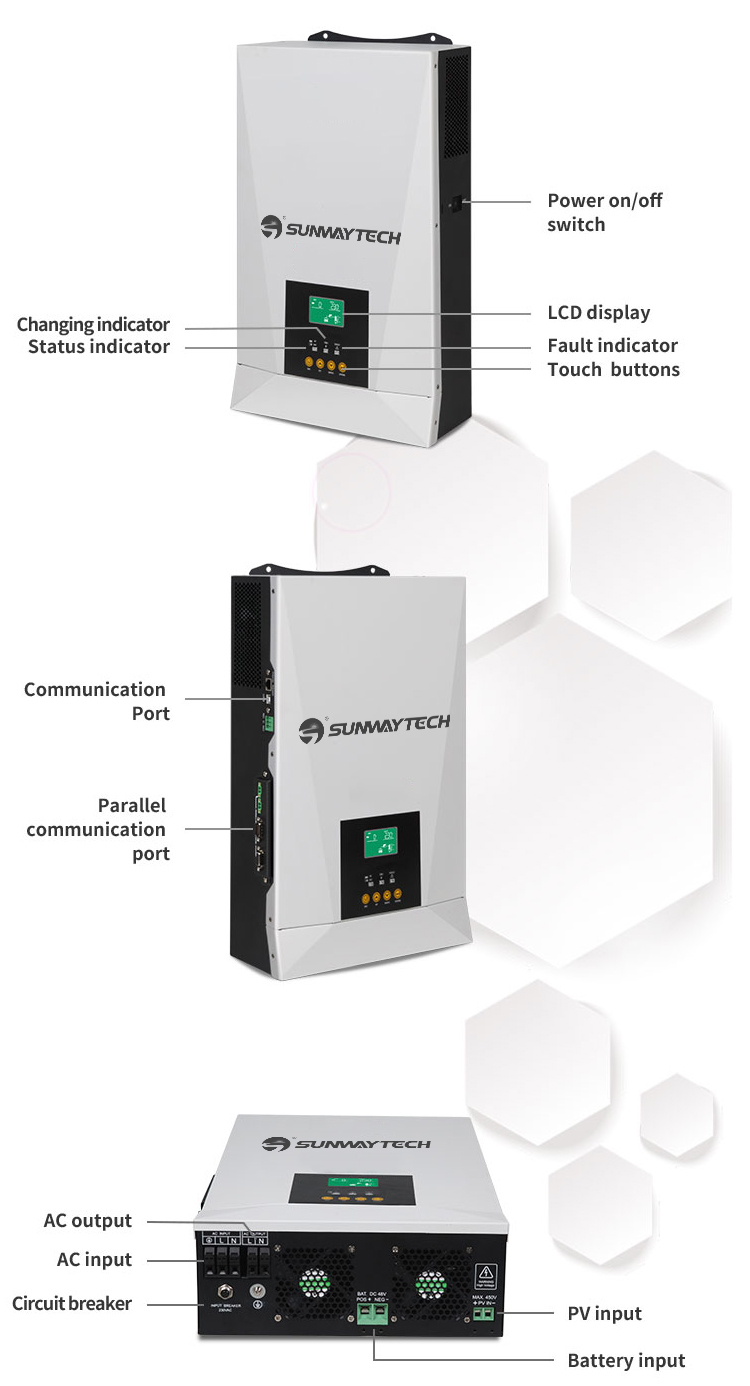

Product Details
Product Paramenters
|

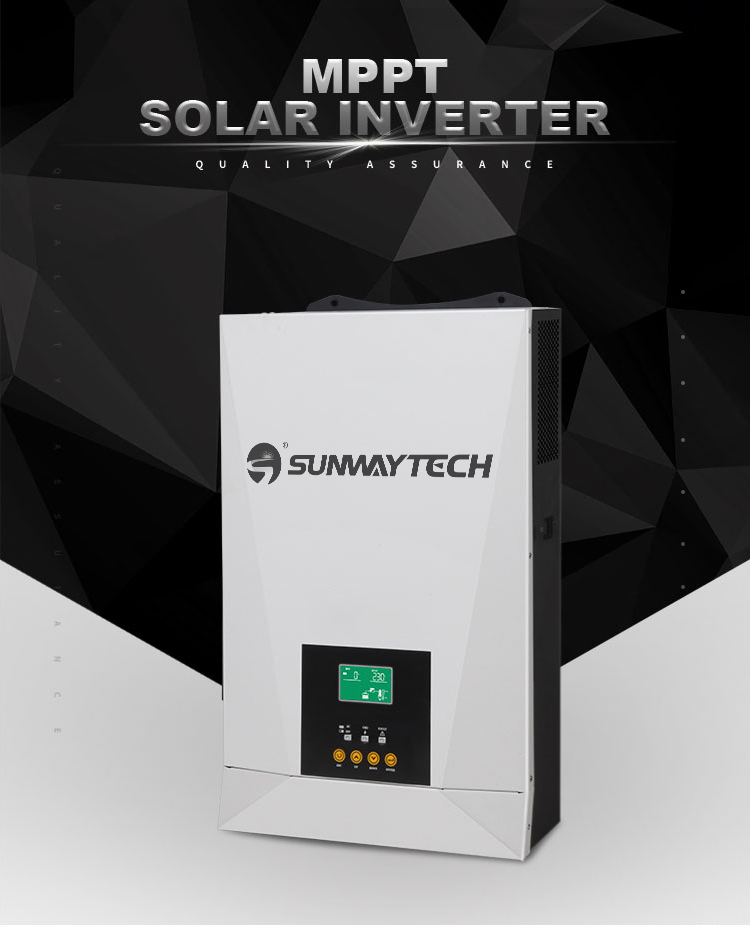

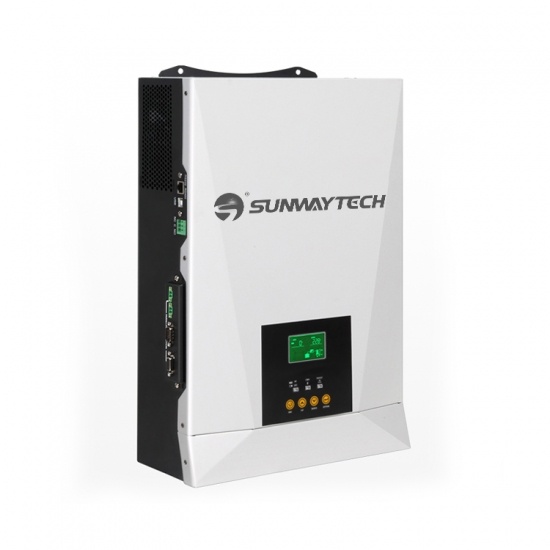

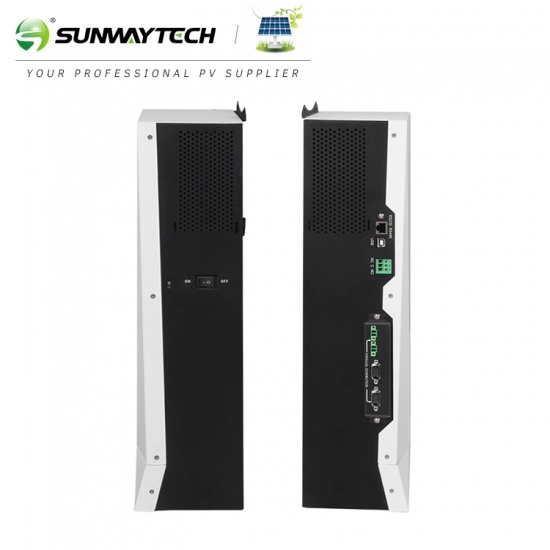

Model
|
SUNPAX 5.5K
|
|
The rated power
|
5500VA/5500W
|
|
INPUT
|
|
|
Voltage
|
230VAC
|
|
Selectable Voltage Range
|
170-280VAC (UPS),120-280VAC (Appliances)
|
|
Frequnecy Range
|
50Hz/60Hz (Auto sensing)
|
|
OUTPUT
|
|
|
AC Voltage Regulation (Batt. Model)
|
230VAC ± 5%
|
|
Surge Power
|
11000VA
|
|
Power factor
|
1.0
|
|
Efficiency(Peak)
|
> 92%
|
|
Transfer Time
|
10ms (UPS), 20ms (Appliances)
|
|
Wave form
|
Pure sine wave
|
|
No load current
|
1.3A
|
|
BATTERY
|
|
|
Battery voltage
|
48VDC
|
|
Low battery alarming voltage
|
36.0-50.0VDC
|
|
Low battery cut off protection voltage
|
36.0-50.0VDC
|
|
Low battery recovery voltage
|
44.0VDC
|
|
Floating Charge Voltage
|
54.0VDC
|
|
Overcharge Protection
|
60.0VDC
|
|
MPPT SOLAR CHARGER & AC CHARGER
|
|
|
Maximum PV Array Power
|
5500W
|
|
MPPT Range Operation Vol
|
120-420VDC
|
|
Maximum PV Array Open Circuit Vol.
|
450VDC
|
|
Number of MPPT trackers / Max output current
|
100A
|
|
Maxmum AC Charge Current
|
80A
|
|
Maxmum Charge Current
|
100A
|
|
Maxmum Efficiency
|
98%
|
|
Communication
|
|
|
Communication Interface
|
USB/RS232/RS458/Dry-contact/BMS
Parallal model(MAX.9PCS) |
|
BEST PANEL CONFIGUTATION
|
|
|
Maximum PV Array Power
|
5500W
|
|
Best Panel configuration
|
300Wp*9pcs*30V(2700Wp)*2Parallel
|
|
PHYSICAL
|
|
|
Products Dimension, D*W*H(mm)
|
498mm*313mm*123mm
|
|
Packing size, D*W*H(mm)
|
577mm*395mm*217mm
|
|
Net Weight (kgs)
|
10.0
|
|
G.W. kg
|
11.3
|
|
OPERATING ENVIRONMENT
|
|
|
Humidity
|
5% to 95% Relative Humidity (Non-condensing)
|
|
Operation Temperature
|
-10℃-50℃
|

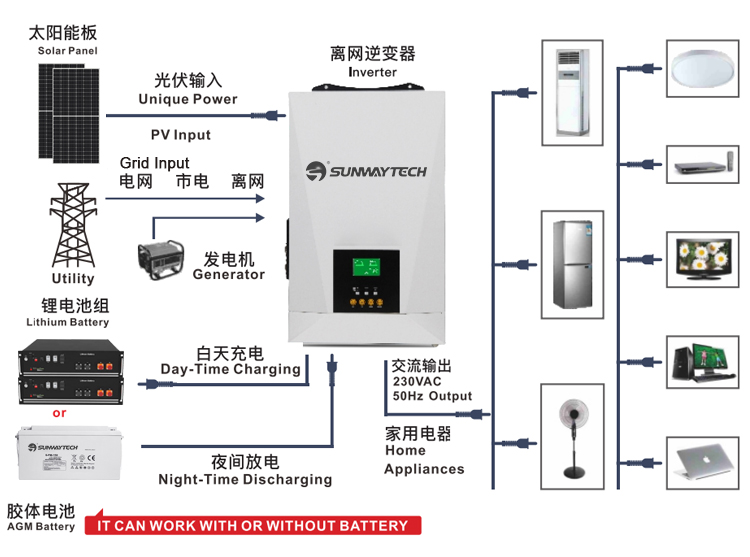

Wiring Diagram

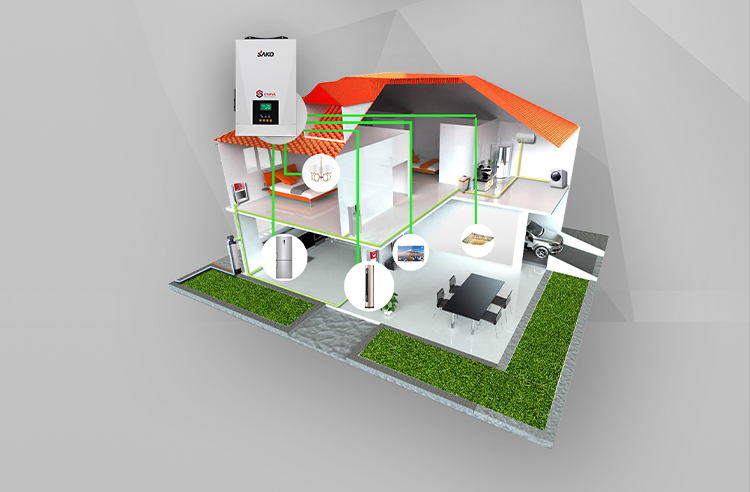

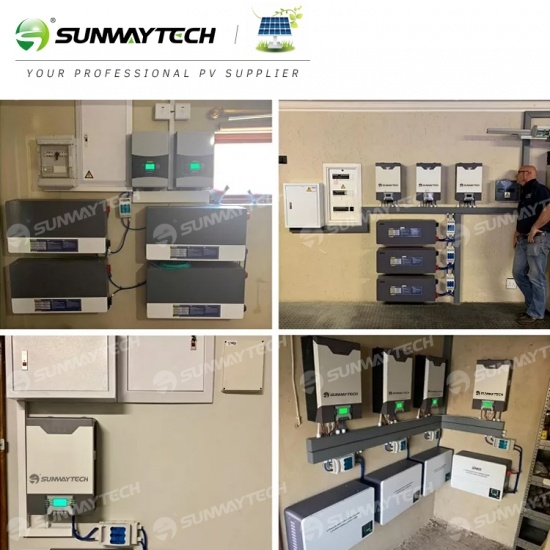

Project Case
