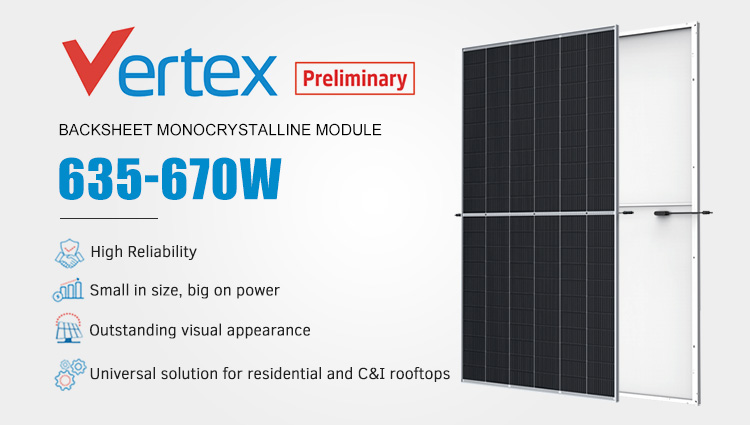

product origin:
Anhuibrand:
pvcellschainitem no.:
TSM-DE21shipping port:
Shanghai Port or Any other Port in Chinapayment:
EXW, FOB, CIF, CFR, DDU, DAT, DAP, etc.,Solar Cell:
MonocrystallineNumber Of Cells:

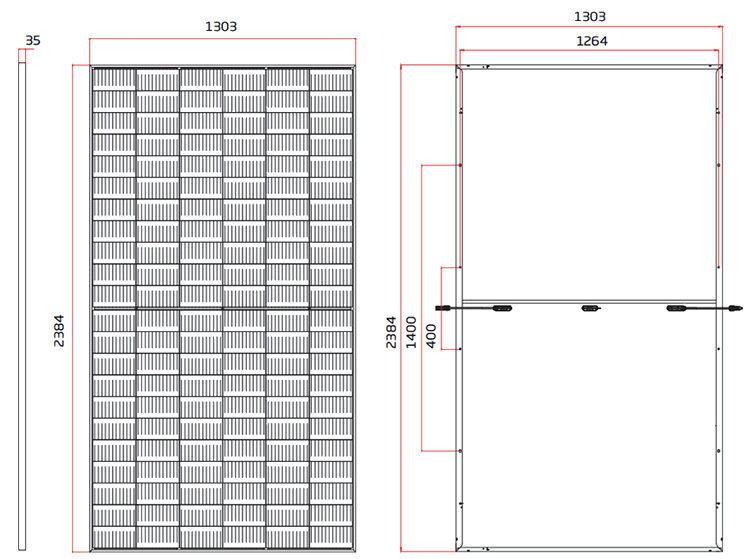

2384*1303(mm)Certificate:
CE/TUV
Specifications
|

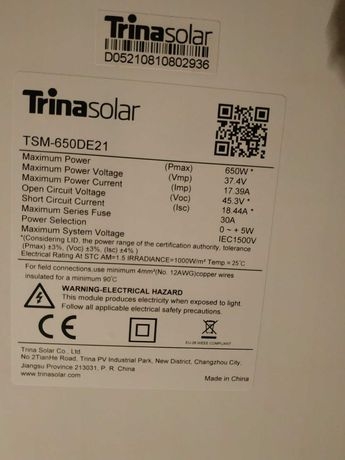

ELECTRICAL DATA (STC)
|
||||||||
|
Peak Power Watts-Pmax(Wp)*
|
635
|
640
|
645
|
650
|
655
|
660
|
665
|
670
|
|
Power Tolerance-Pmax(W)
|
0~+5
|
|||||||
|
Maximum Power Voltage-Vmpp(V)
|
36.8
|
37.0
|
37.2
|
37.4
|
37.6
|
37.8
|
38.0
|
38.2
|
|
Maximum Power Current-Impp(A)
|
17.26
|
17.30
|
17.35
|
17.39
|
17.43
|
17.47
|
17.51
|
17.55
|
|
Open Circuit Voltage-Voc(V)
|
44.7
|
44.9
|
45.1
|
45.3
|
45.5
|
45.7
|
45.9
|
46.1
|
|
Short Circuit Current-Isc(A)
|
18.30
|
18.34
|
18.39
|
18.44
|
18.48
|
18.53
|
18.57
|
18.62
|
|
Module Efficiency η m(%)
|
20.4
|
20.6
|
20.8
|
20.9
|
21.1
|
21.2
|
21.4
|
21.6
|
|
STC: Irrdiance 1000W/m2, Cell Temperature 25ºC, Air Mass AM1.5. *Measuring tolerance: ±3%.
|
||||||||
|
ELECTRICAL DATA (NOCT)
|
||||||||
|
Maximum Power-PMAX (Wp)
|
481
|
485
|
488
|
492
|
496
|
500
|
504
|
508
|
|
Maximum Power Voltage-VMPP (V)
|
34.3
|
34.6
|
34.8
|
34.9
|
35.1
|
35.3
|
35.4
|
35.6
|
|
Maximum Power Current-IMPP (A)
|
13.97
|
14.01
|
14.05
|
14.09
|
14.13
|
14.17
|
14.22
|
14.26
|
|
Open Circuit Voltage-VOC (V)
|
42.1
|
42.3
|
42.5
|
42.7
|
42.9
|
43.0
|
43.2
|
43.4
|
|
Short Circuit Current-ISC (A)
|
14.75
|
14.78
|
14.82
|
14.86
|
14.89
|
14.93
|
14.96
|
15.01
|
|
NOCT: Irradiance at 800W/m2, Ambient Temperature 20°C, Wind Speed 1m/s.
|
||||||||

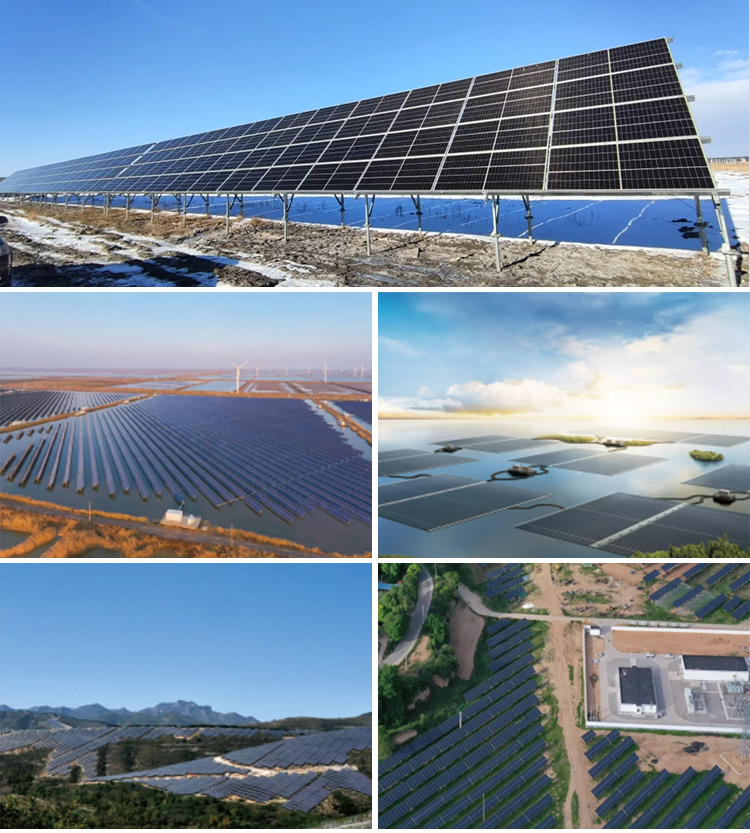

Project Case
Hybrid Solar Inverter is compatible with both on-grid and off-grid PV systems. It can control the flow of energy intelligently. During daytime, the PV plant generates electricity which can be provided to the loads, fed into the grid or charge the battery. The electricity stored can be released when the loads require it, for example during the night. Additionally, the grid can also be used to charge the storage devices via the inverter (UPS function).
A variant of these types of batteries that are valve regulated and have gel electrolyte are called OPZV. These are a maintenance free variant of OPZV.
Our all-in-one 5kW BIPV solar solution provides efficient, independent home energy.
Energy Solar System : Microgrid mainly has solar power system(Inverter, Solar panels), Energy storage system( AGM, GEL or lithium battery), can be also connect with generator
Front Terminal GEL Storage Battery 12V 150AH Lead Acid Battery Products Specification Model 6-GFM-150Ah 6-GFM(G)-150Ah Cells Per Unit 6 Voltage Per Unit 12 Capacity 150Ah@10hr-rate to 1.80V per cell @25°C Weight 43kg 47kg Internal Resistance Approx. 3.5 mΩ Approx. 4 mΩ Terminal F8 Max.Discharge Current 2250A (5 sec) Design Life 6~8 years 10~15 years Maximum Charging Current 37.5A Reference Capacity C10 150.0AH C3 115.0AH C1 82.8AH C10 150.0AH C3 108.7AH C1 82.4AH Float Charging Voltage 13.6 V~13.8 V @ 25°C Temperature Compensation: -20mV/°C/Cell Cycle Use Voltage 14.4 V~14.9 V @ 25°C Temperature Compensation: -30mV/°C/Cell Operating Temperature Range Discharge: -15°C~50°C Charge: 0°C~40°C Storage: -15°C~40°C Discharge: -20°C~60°C Charge: 0°C~50°C Storage: -20°C~60°C Normal Operating Temperature Range 25°C±5°C Self Discharge Less than 3% at 25°C per month Container Material A.B.S. UL94-HB, UL94-V0 Optional Detailed Images
182mm Monocrystallin Half Cell Solar Panels
Hot Sale & Clean Energy On-Grid Solar Energy System is easy to install. Accept specially customized to meet your different requirements.
Hybrid solar system is a solar system, suitable for a place where is no grid network or grid power is not stable. This solar can be described as off-grid solar system with utility backup power, or grid-tied solar system with extra battery storage.
pvcellschain solar panel 144Cells 9BB Mono 48v Solar Panel 440W 480 Watt for Solar Home Power System, This high-power monocrystalline solar panel operates at 21.26% efficiency to maximize the light absorption area.
pvcellschain Ess battery energy storage system (BESS) containers are based on a modular design. They can be configured to match the required power and capacity requirements of client’s application. Our containerised energy storage system (BESS) is the perfect solution for large-scale energy storage projects. The energy storage containers can be used in the integration of various storage technologies and for different purposes.
182mm Monocrystallin Half Cell Solar Panels
