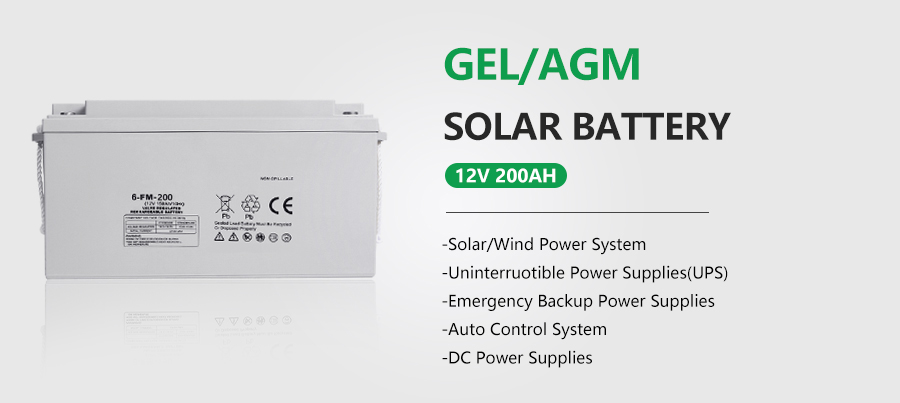

Deep Cycle 12V 200Ah GEL Solar Battery AGM Storage Battery

Front Terminal GEL Storage Battery 12V 150AH Lead Acid Battery Products  Specification Model 6-GFM-150Ah 6-GFM(G)-150Ah Cells Per Unit 6 Voltage Per Unit 12 Capacity 150Ah@10hr-rate to 1.80V per cell @25°C Weight 43kg 47kg Internal Resistance Approx. 3.5 mΩ Approx. 4 mΩ Terminal F8 Max.Discharge Current 2250A (5 sec) Design Life 6~8 years 10~15 years Maximum Charging Current 37.5A Reference Capacity C10 150.0AH  C3 115.0AH C1 82.8AH C10 150.0AH  C3 108.7AH C1 82.4AH Float Charging Voltage 13.6 V~13.8 V @ 25°C  Temperature Compensation: -20mV/°C/Cell Cycle Use Voltage 14.4 V~14.9 V @ 25°C  Temperature Compensation: -30mV/°C/Cell Operating Temperature Range Discharge: -15°C~50°C  Charge: 0°C~40°C  Storage: -15°C~40°C Discharge: -20°C~60°C  Charge: 0°C~50°C  Storage: -20°C~60°C Normal Operating Temperature Range 25°C±5°C Self Discharge Less than 3% at 25°C per month Container Material A.B.S. UL94-HB, UL94-V0 Optional Detailed Images

Deep Cycle  Lead Acid 12V250AH Gel Solar Battery Price Products  Specification Model 6-GFM-250Ah 6-GFM(G)-250Ah Cells Per Unit 6 Voltage Per Unit 12 Capacity 250Ah@10hr-rate to 1.80V per cell @25°C Weight Approx. 70.0 Kg (Tolerance±1.5%) Internal Resistance Approx. 2.0 mΩ Approx. 2.5 mΩ Terminal F8 Max.Discharge Current 3750A (5 sec) Design Life 6~8 years 10~15 years Maximum Charging Current 62.5A Reference Capacity C10 250.0AH  C3 191.7AH C1 138.1AH C10 250.0AH  C3 181.0AH C1 137.6AH Float Charging Voltage 13.6 V~13.8 V @ 25°C  Temperature Compensation: -20mV/°C/Cell Cycle Use Voltage 14.4 V~14.9 V @ 25°C  Temperature Compensation: -30mV/°C/Cell Operating Temperature Range Discharge: -15°C~50°C  Charge: 0°C~40°C  Storage: -15°C~40°C Discharge: -20°C~60°C  Charge: 0°C~50°C  Storage: -20°C~60°C Normal Operating Temperature Range 25°C±5°C Self Discharge Less than 3% at 25°C per month Container Material A.B.S. UL94-HB, UL94-V0 Optional Detailed Images Products Projects

Gel Battery 12V 100Ah Agm Solar Lead Acid Battery Price Products  Specification Model 6-GFM-100Ah 6-GFM(G)-100Ah Cells Per Unit 6 Voltage Per Unit 12 Capacity 100Ah@10hr-rate to 1.80V per cell @25°C Weight 28.3kg 30.8kg Internal Resistance Approx. 4.5 mΩ Approx. 6 mΩ Terminal F8 Max.Discharge Current 1500A (5 sec) Design Life 6~8 years 10~15 years Maximum Charging Current 25A Reference Capacity C10 100.0AH  C3 76.8AH C1 55.2AH C10 100.0AH  C3 74.6AH C1 56.8AH Float Charging Voltage 13.6 V~13.8 V @ 25°C  Temperature Compensation: -20mV/°C/Cell Cycle Use Voltage 14.4 V~14.9 V @ 25°C  Temperature Compensation: -30mV/°C/Cell Operating Temperature Range Discharge: -15°C~50°C  Charge: 0°C~40°C  Storage: -15°C~40°C Discharge: -20°C~60°C  Charge: 0°C~50°C  Storage: -20°C~60°C Normal Operating Temperature Range 25°C±5°C Self Discharge Less than 3% at 25°C per month Container Material A.B.S. UL94-HB, UL94-V0 Optional Detailed Images Products Projects

Battery Type: Lithium Ion, Lead Acid Replacement Lithium Battery

Power Energy Storage Li-ion Battery Pack High Voltage 192V 100ah LiFePO4 Battery Modules 5kwh 10kwh 20kwh Lithium Battery

pvcellschain Ground Eco battery is a Ground mounted lithium battery pack which consists of long life-span LiFePO4 battery cells and functional BMS. It can store and release electric energy based on the requirements of the inverter controller. It is mainly for home energy storage system.

pvcellschain Team Customize and Design Full Set of 12KW On Grid Solar Energy System for Your House or Hotel or Villa. If you have any good ideas or advice, pls feel free to contact us.

Deye microinverters power ranges from 300W to 2000W, and it comes with different output voltage 220V/230V/127V. It supports multiple communication methods WIFI/PLC/Zigbee. Thanks to the MECD, communication gateway, the microinverter can be turned off remotely and immediately.

Roof Monocrystalline 495W 150-Cell Nominal Solar Panels,maximizes the use of light and enhances its reliability, 2% more power generation. Brand name, solar panel color, designed unique patterns available for customization.

Tailored for commercial and power plant PV systems, ranging from 30kW. Built with anodized aluminum housing for corrosion resistance and durability. External inductors enhance heat dissipation, ensuring reliability and longevity. Sensor touch buttons activate the inverter menu. Connect through Wi-Fi, Ethernet, or GPRS for remote system monitoring via an online portal or app.

pvcellschain Ess battery energy storage system (BESS) containers are based on a modular design. They can be configured to match the required power and capacity requirements of client’s application. Our containerised energy storage system (BESS) is the perfect solution for large-scale energy storage projects. The energy storage containers can be used in the integration of various storage technologies and for different purposes.

Surface pumps are designed to pump water from surface sources like springs, ponds, tanks, or shallow wells. Most of our surface pumps are either diaphragm pumps or rotary vane pumps and can run solar-direct for simple, inexpensive operation.
