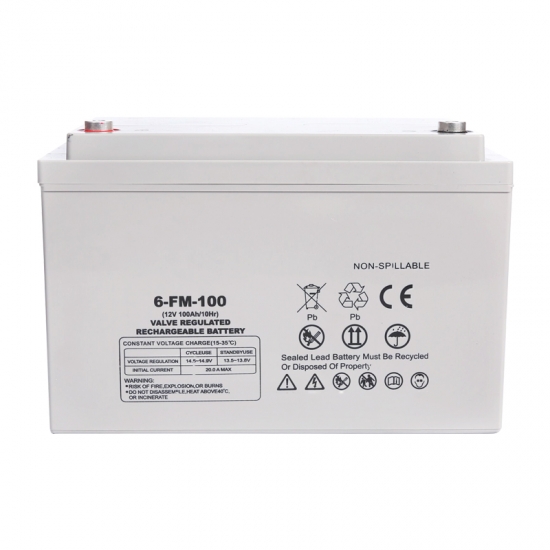

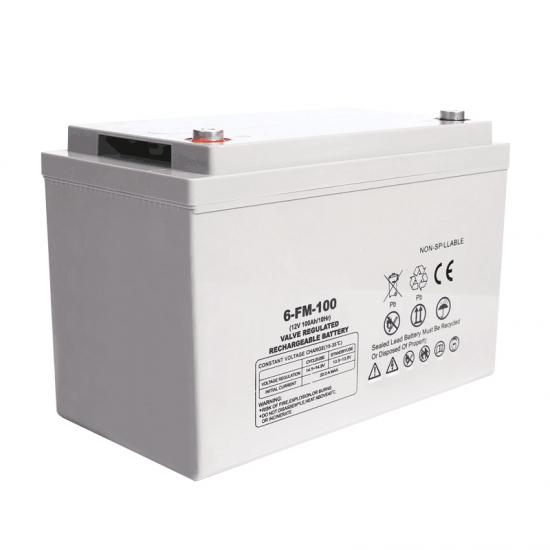

Gel Battery 12V 100Ah Agm Solar Lead Acid Battery Price

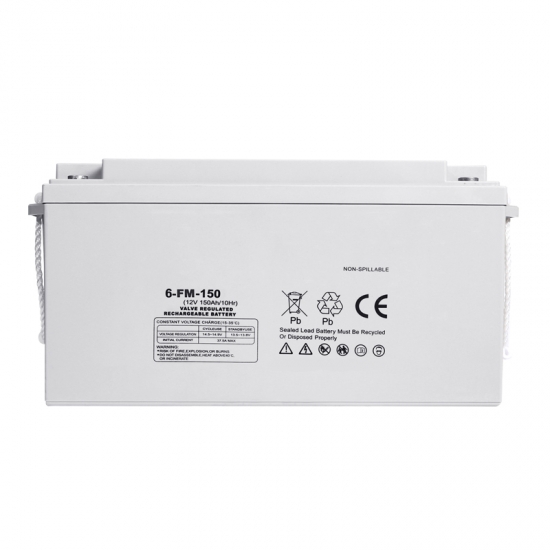

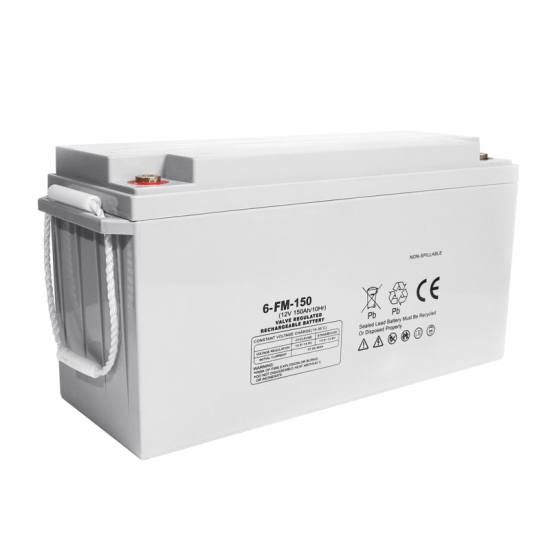

Front Terminal GEL Storage Battery 12V 150AH Lead Acid Battery Products  Specification Model 6-GFM-150Ah 6-GFM(G)-150Ah Cells Per Unit 6 Voltage Per Unit 12 Capacity 150Ah@10hr-rate to 1.80V per cell @25°C Weight 43kg 47kg Internal Resistance Approx. 3.5 mΩ Approx. 4 mΩ Terminal F8 Max.Discharge Current 2250A (5 sec) Design Life 6~8 years 10~15 years Maximum Charging Current 37.5A Reference Capacity C10 150.0AH  C3 115.0AH C1 82.8AH C10 150.0AH  C3 108.7AH C1 82.4AH Float Charging Voltage 13.6 V~13.8 V @ 25°C  Temperature Compensation: -20mV/°C/Cell Cycle Use Voltage 14.4 V~14.9 V @ 25°C  Temperature Compensation: -30mV/°C/Cell Operating Temperature Range Discharge: -15°C~50°C  Charge: 0°C~40°C  Storage: -15°C~40°C Discharge: -20°C~60°C  Charge: 0°C~50°C  Storage: -20°C~60°C Normal Operating Temperature Range 25°C±5°C Self Discharge Less than 3% at 25°C per month Container Material A.B.S. UL94-HB, UL94-V0 Optional Detailed Images

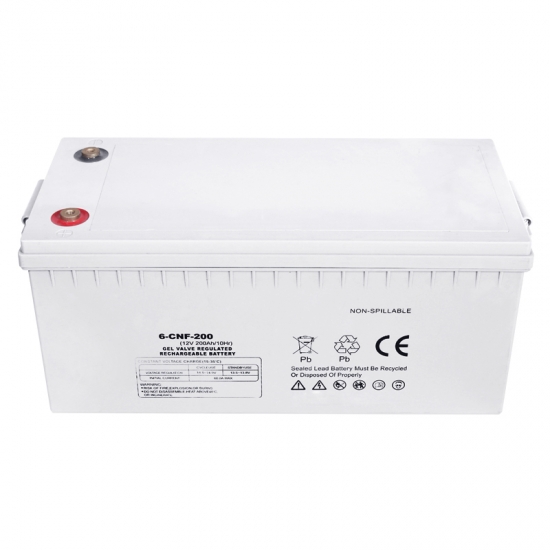

Deep Cycle 12V 200Ah GEL Solar Battery AGM Storage Battery Products  Specification Model 6-GFM-200Ah 6-GFM(G)-200Ah Cells Per Unit 6 Voltage Per Unit 12 Capacity 200Ah@10hr-rate to 1.80V per cell @25°C Weight 57.9kg 62.4kg Internal Resistance Approx. 3 mΩ Approx. 3.5 mΩ Terminal F8 Max.Discharge Current 3000A (5 sec) Design Life 6~8 years 10~15 years Maximum Charging Current 50A Reference Capacity C10 200.0AH  C3 153.3AH C1 110.4AH C10 200.0AH  C3 144.7AH C1 110.1AH Float Charging Voltage 13.6 V~13.8 V @ 25°C  Temperature Compensation: -20mV/°C/Cell Cycle Use Voltage 14.4 V~14.9 V @ 25°C  Temperature Compensation: -30mV/°C/Cell Operating Temperature Range Discharge: -15°C~50°C  Charge: 0°C~40°C  Storage: -15°C~40°C Discharge: -20°C~60°C  Charge: 0°C~50°C  Storage: -20°C~60°C Normal Operating Temperature Range 25°C±5°C Self Discharge Less than 3% at 25°C per month Container Material A.B.S. UL94-HB, UL94-V0 Optional Detailed Images Products Projects

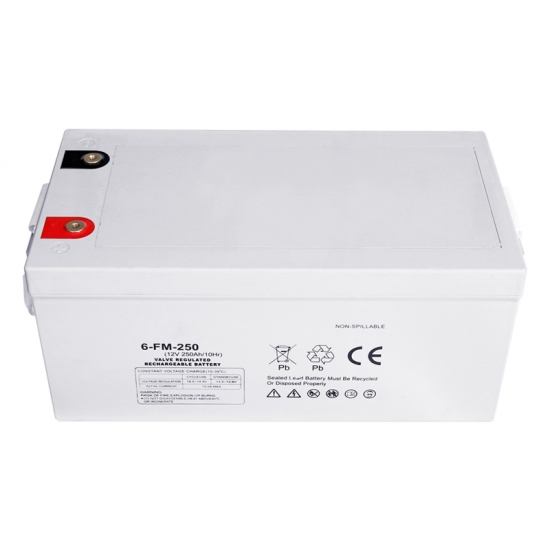

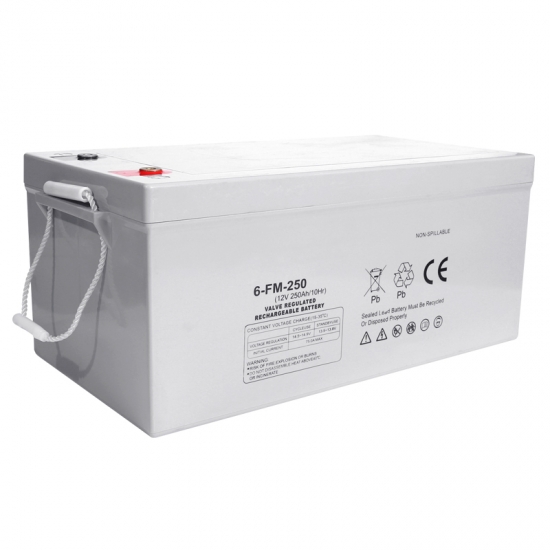

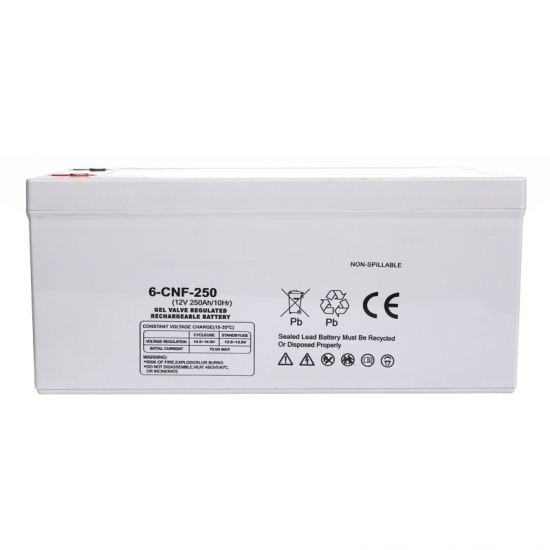

Deep Cycle  Lead Acid 12V250AH Gel Solar Battery Price Products  Specification Model 6-GFM-250Ah 6-GFM(G)-250Ah Cells Per Unit 6 Voltage Per Unit 12 Capacity 250Ah@10hr-rate to 1.80V per cell @25°C Weight Approx. 70.0 Kg (Tolerance±1.5%) Internal Resistance Approx. 2.0 mΩ Approx. 2.5 mΩ Terminal F8 Max.Discharge Current 3750A (5 sec) Design Life 6~8 years 10~15 years Maximum Charging Current 62.5A Reference Capacity C10 250.0AH  C3 191.7AH C1 138.1AH C10 250.0AH  C3 181.0AH C1 137.6AH Float Charging Voltage 13.6 V~13.8 V @ 25°C  Temperature Compensation: -20mV/°C/Cell Cycle Use Voltage 14.4 V~14.9 V @ 25°C  Temperature Compensation: -30mV/°C/Cell Operating Temperature Range Discharge: -15°C~50°C  Charge: 0°C~40°C  Storage: -15°C~40°C Discharge: -20°C~60°C  Charge: 0°C~50°C  Storage: -20°C~60°C Normal Operating Temperature Range 25°C±5°C Self Discharge Less than 3% at 25°C per month Container Material A.B.S. UL94-HB, UL94-V0 Optional Detailed Images Products Projects

Battery Type: Lithium Ion, Lead Acid Replacement Lithium Battery

25w led solar powered flood lights use high-intensity discharge lamps based on metal halides or high-pressure sodium

100w led solar powered flood lights use high-intensity discharge lamps based on metal halides or high-pressure sodium

The pvcellschain 5000es solar inverter provides efficient and reliable 3200W to 5500W power for off-grid solar systems with intelligent power management, wide voltage input range and corrosion-resistant aluminum casing.

The OPzV batteries feature tubular grids and multi-tube guantlets that encapsulate the positive plate active material resulting in cycling stability, longer life and higher capacity than flat plate batteries.

SUNPOLO 6KW pure sine wave solar hybrid inverter adopts advanced MPPT technology, it converts DC power from solar panels into AC power and provides continuous power to connected loads.

A 50-80kW residential solar solution provides renewable energy for the whole house with grid-tie and intelligent wifi monitoring.

The lithium iron phosphate rechargeable battery system features wall mounting, IP65 protection for outdoor use, over 4000 charge cycles or 10-year lifespan, easy 5kWh modular expandability up to 15kWh, and compatibility with popular off-grid inverters through standard CAN and RS485 communication protocols.

pvcellschain Ess battery energy storage system (BESS) containers are based on a modular design. They can be configured to match the required power and capacity requirements of client’s application. Our containerised energy storage system (BESS) is the perfect solution for large-scale energy storage projects. The energy storage containers can be used in the integration of various storage technologies and for different purposes.
