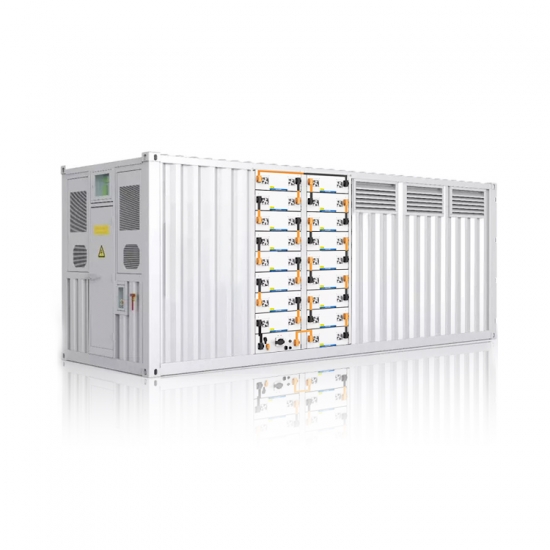

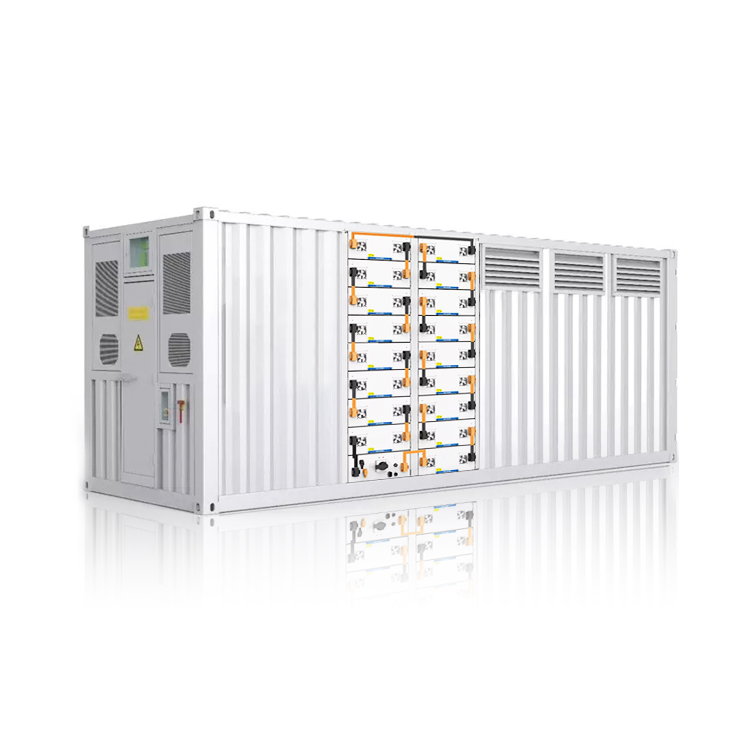

Energy Storage System Container Ess Container 500kw 800kw 1mw Container Energy Storage System Manufacturer

pvcellschain Ess battery energy storage system (BESS) containers are based on a modular design. They can be configured to match the required power and capacity requirements of client’s application.

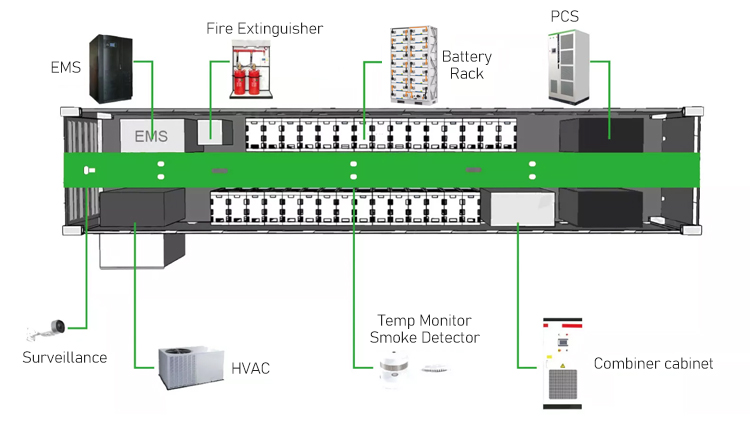

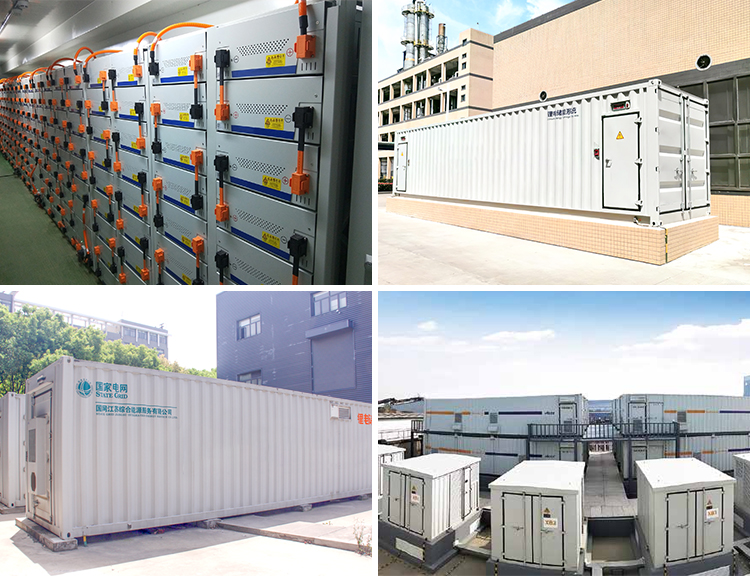

Our containerised energy storage system (BESS) is the perfect solution for large-scale energy storage projects. The energy storage containers can be used in the integration of various storage technologies and for different purposes.
  • product origin:

    Anhui
  • item no.:

    SWS1MW-BESS
  • shipping port:

    Shanghai
  • lead time:

    20-40
  • payment:

    EXW, FOB, CIF, CFR, DDU, DAT, DAP, etc.,
  • product details

Features of pvcellschain Energy Storage Container Energy Storage System
1、Multilevel protection strategy to ensure the safe and stable operation of the system.
2、The technology is mature and stable through inspection and testing by many stakeholders.
3、Multi-scenario application, flexible configuration and compatibility, adapting to various energy storage requirements.
4、It is suitable for use in special and harsh areas such as high altitude and cold areas.
5、High degree of standardization, integration, rapid deployment, short construction and commissioning period, simplicity and easy maintenance.

product model
HJESLFP-38240

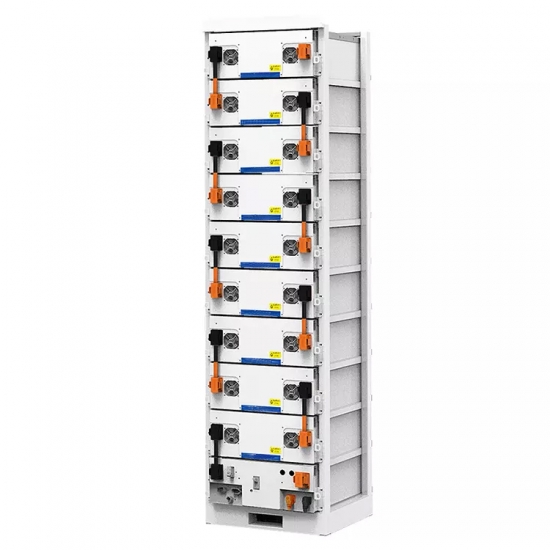

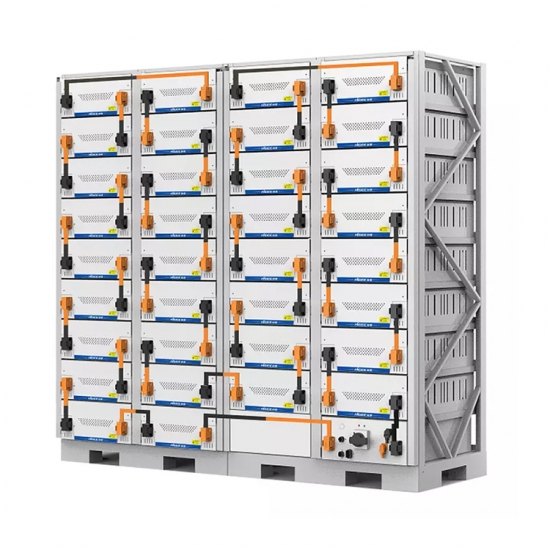

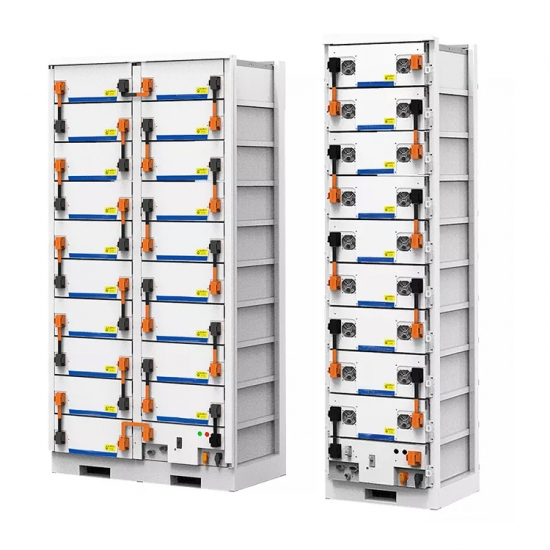

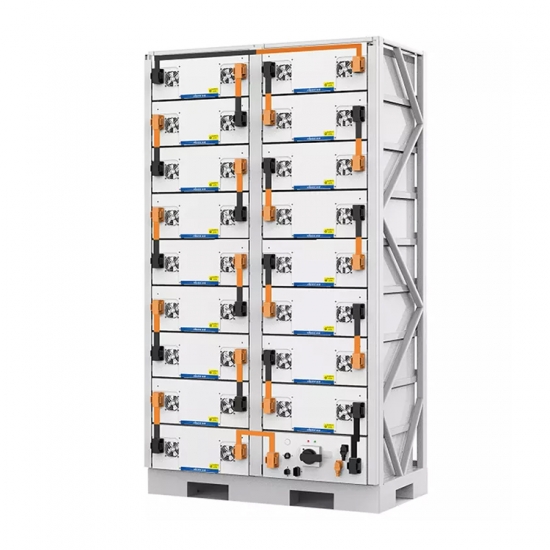

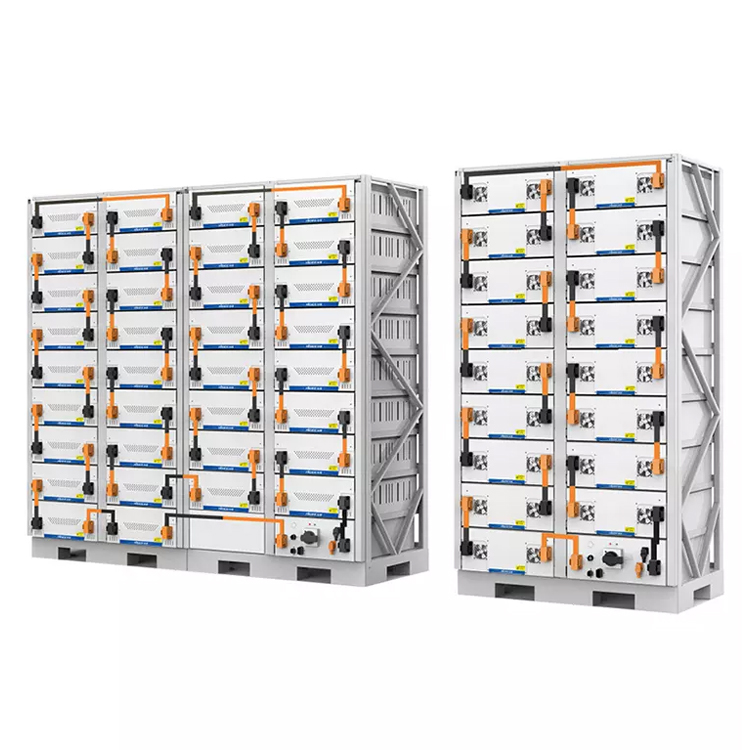

Battery clusters
HJESLFP-76120
Battery clusters
HJESLFP-38240
Battery clusters (1500VDC)
HJESLFP-76120
Battery clusters (1500VDC)
Cell type
LFP48173170E-120Ah
LFP48173170E-120Ah
LFP48173170E-120Ah
LFP48173170E-120Ah
Module type
HJESLFP-38240
HJESLFP-76120
HJESLFP-38240
HJESLFP-76120
compound mode
2P(192S~240S)
1P(192S~240S)
2P (348S ~ 420S)
1P(360S~408S)
nominal voltage
614.4 ~ 768 V
614.4 ~ 768 V
1113.6-1344 V
1152-1305.6 V
Rated capacity
240 Ah
120 Ah
240 Ah
120 Ah
Nominal energy
147.46 ~ 184.32 kWh
73.73 ~ 92.16 kWh
267.26 ~ 322.56 kWh
138.24 〜156.67 kWh
Standard charging current
120 (0.5 C) A
120 (1 C) A
120 (0.5 C) A
120 (1 C) A
Maximum charging current
150 (0.625 C) A @5S
150 (1.25 C) A @5S
150 (0.625 C) A @5S
150 (1.25 C) A @5S
Standard discharge current
120 (0.5 C) A
120 (1 C) A
120 (0.5 C) A
120 (1 C) A
maximum discharge current
150 (0.625 C) A @5S
150 (1.25 C) A @5S
150 (0.625 C) A @5S
150 (1.25 C) A @5S
running voltage
500~ 850V
500 ~ 850 V
950~1500V
950 ~ 1500 V
Size (width * depth * height)
1086x732.5x2220 mm
551x732.5x2270 mm
2172x732.5x2014 mm
1086x732.5x2014 mm
weight
≤1900㎏
≤950㎏
≤3550㎏
≤1800㎏
product model
Medium and small container energy storage power station system
Large container energy storage power station system
Cell type
LFP48173170E-120Ah
LFP48173170E-120Ah
rated power
≤1 MW
≤1.5 MW
Charge and discharge rate
≤0.5C
≤0.5C
compound mode
228S2P*12
228S2P*18
nominal capacity
2880 Ah
4320 Ah
Nominal energy
1 MW/2.1 MWh
3.15 MWh
nominal voltage
729.6 V
729.6 V
the protection grades
IP54
IP54
Operating voltage range
638.4 ~ 809.4 V
638.4-809.4 V
Operating humidity range
0-95% (Non-condensation)
0-95% (Non-condensation)
Energy storage inverter
<1MW (Including PCS and isolation transformer)
March-Past(Including PCS and isolation transformer)
protocol
CAN、RS485、 IEC104、TCP/IP
CAN、RS485、IEC104、TCP/IP
Dimensions (width x depth x height)
40-foot high standard container
40-foot high standard container
weight
35 T
45 T
