pvcellschain Solar System Power Energy ground LiFePO4 Battery 10kw 30Kw 60Kw Solar System Home Solar Energy System Cabinet

pvcellschain Electric Power Systems
  • product origin:

    Anhui
  • brand:

    pvcellschain
  • item no.:

    LFP3048
  • shipping port:

    Shanghai
  • payment:

    EXW, FOB, CIF, CFR, DDU, DAT, DAP, etc.,
  • Max.Power:

    30KW
  • Output voltagey:

    460V
  • Payment:

    T/T, L/C, Alipay, Paypal, Western Union
  • product details

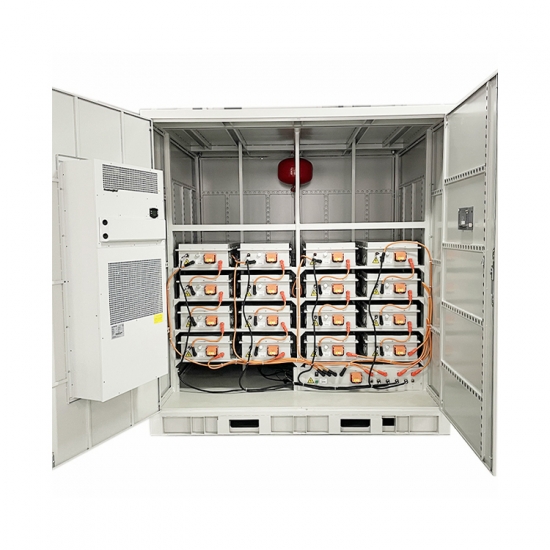

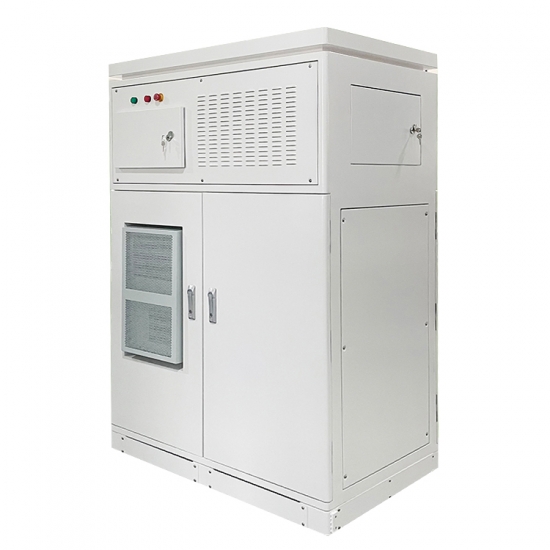

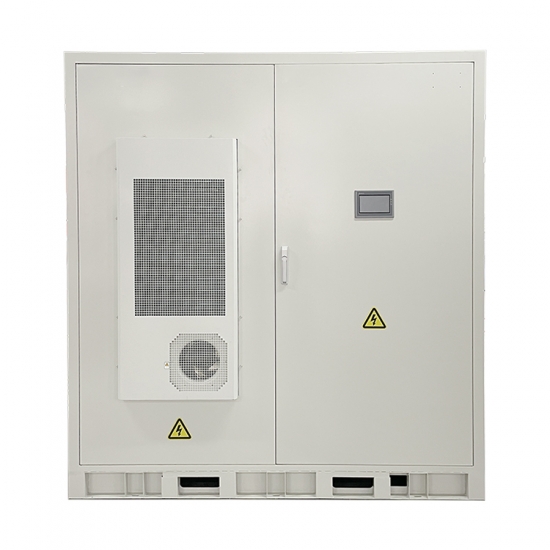

1.The integrated cabinet design of on-grid and off-grid supports a maximum of eight parallel units on the power grid

2.10KW/ 30KW/ 60KW/ 120KW/, 1 h to 3 h energy storage capacity of the lithium iron phosphate for options

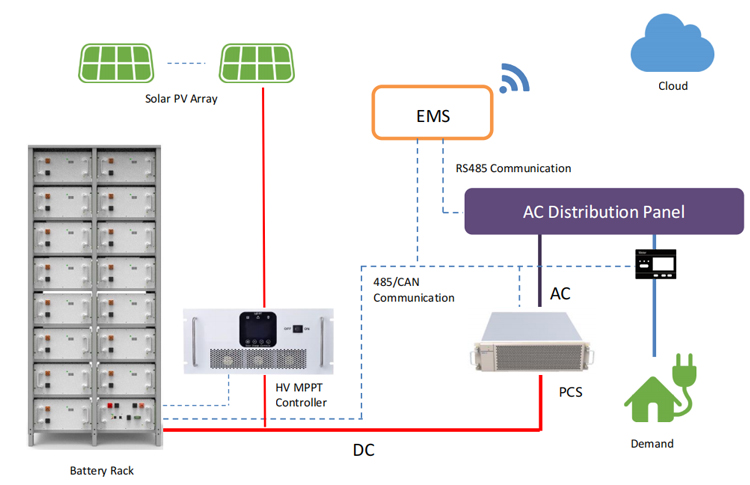

3.PV DC networking, improve PV power generation efficiency by 5-8%

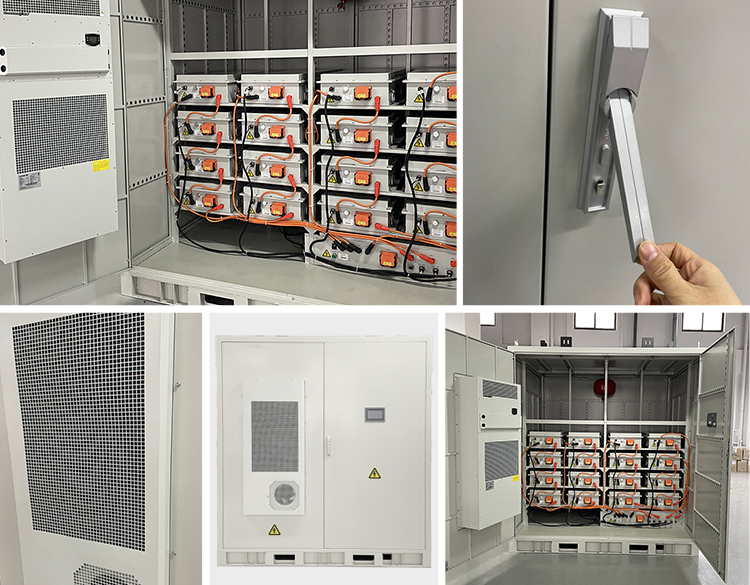

4.Cabinet level and PACK level fire protection, system thermal out of control detection and active fire protection

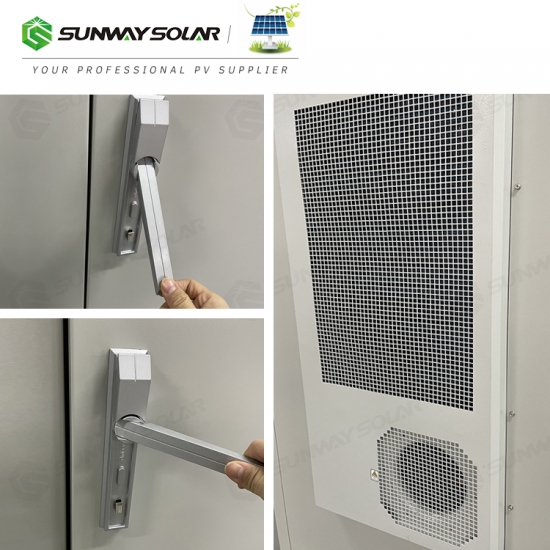

5.Cabinet thermal insulation and hot and cold air conditioning thermal management, stable operation -20℃ to 50℃
6.User-defined 4 Working Modes. Peak cutting and valley filling, self-use, and hybrid grid, off grid
7.C4-Grade anti corrosion, IP65 protection, outdoor and indoor installation

8.Support OTA, remote online monitoring and maintenance


Catagory
Project
Product model
3032
3040
3048
3064
3075
3086


Battery
Cell type
Lithium iron phosphate
Cell capacity(Ah)
105
210
Cell nominal voltage (V)
3.2
Battery capacity (kWh)
32.256
40.32
48.384
64.512
75.264
86.016
Voltage range(V)
273.6~340.8
273.6~340.8
342~
426
410.4~511.2
319.2~397.6
364.8~454.4
Maximum charging /discharging current (A)
52.5
97
83
73
Maximum charging /discharging power (kW)
16
20
24
30
30
30
Life cycle(25℃,85%DOD)
≥6000


Photovoltaic (pv) interface
Maximum DC input voltage(V)
850
MPPT Operating voltage range (V)
150~550
Starting voltage (V)
150
Maximum input current (A)
100
Maximum DC input power (kW)
30
MPPT input numb
1
MPPT efficiency
≥99%


AC side
Rated input power (kW)
30
Input type
three phase five wire system
Rated voltage (Vac)
380 ±15%
Rated current (A)
45
Rated frequency and range (Hz)
50/60
Power factory adjustment range
±1
Harmonic content THDi
≤3%
System Working mode
Grid mode
Self-use / peak cutting and valley filling /power backup
Off grid mode
Y


Others
Maximum net weight of system (kg)
650
700
750
870
950
1030
System size (mm)
1220*860*1850
Installation
Ground mounted
Protaction grade
IP65
Operating temperature
-10℃~45℃
Storage temperature
-20℃~55℃
Relative humidity
0~95%
Working altitude
Altitude < 2000m, no derating
Temperature control mode
air conditioner
Fire control mode
FM200
Noise level
≤50dB
