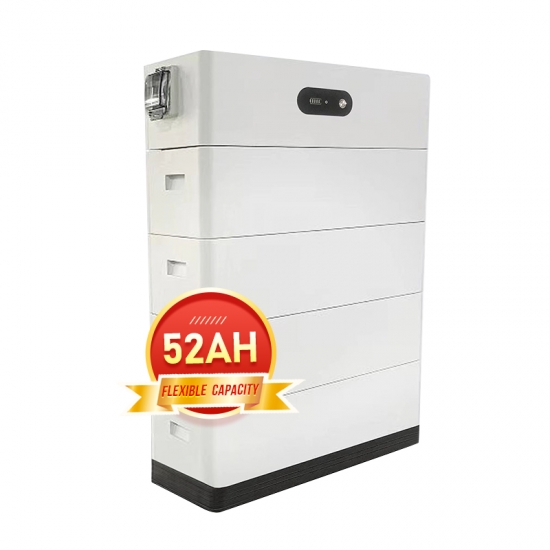

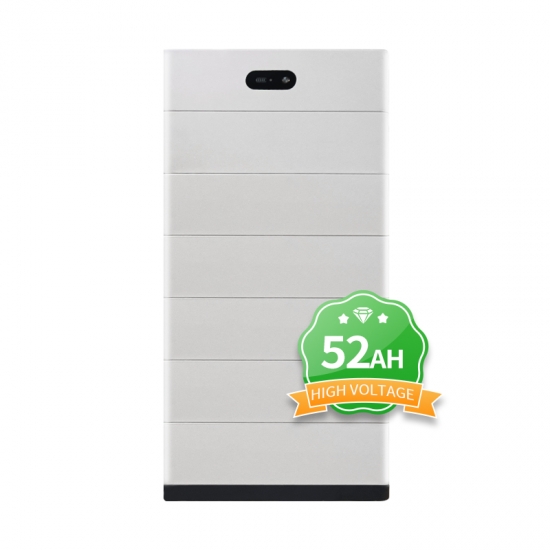

Power Energy Storage Li-ion Battery Pack High Voltage 192V 100ah LiFePO4 Battery Modules 5kwh 10kwh 20kwh Lithium Battery
brand:
pvcellschainitem no.:
SW48B-HV-2500Voltage:
48Vcapacity:
52AhCycle Life:
≥6000Battery type:
Lithium Ion, LiFePO4Battery Size:
580*220*1530mm

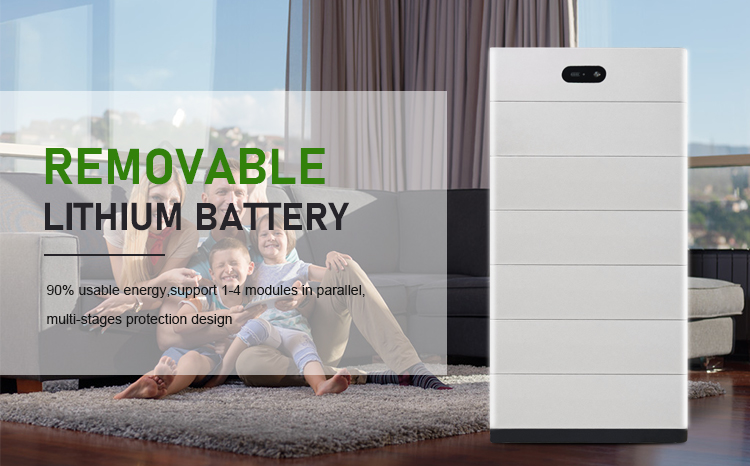

Features of All in one removable lithium battery
|
Model
|
SW48B-HV-2500
|
|||
|
Units
|
1Unit
|
2Unit
|
4Unit
|
8Unit
|
|
Battery Type
|
LiFePO4
|
|||
|
Typical Capacity (Ah)
|
52Ah
|
|||
|
Typical Voltage (V)
|
48V
|
96V
|
192V
|
384V
|
|
Connection
|
1P15S
|
1P30S
|
1P60S
|
1P120S
|
|
Voltage Working Range (V)
|
43.95~53.25V
|
87.9~106.5V
|
175.8~213V
|
351.6~426V
|
|
Nominal Energy(kWh)
|
2.5kWh
|
5kWh
|
10kWh
|
20kWh
|
|
|
Charge:0℃~+55°C,
Discharge:-20℃~+60℃
|
|||
|
Storage Temperature(℃)
|
-20℃~+35℃
|
|||
|
Max. Charge Current(A)
|
35A
|
|||
|
Max. Discharge Current(A)
|
35A
|
|||
|
Cycle Life
|
>=6000
|
|||
|
SOC Accuracy
|
<8%
|
|||
|
Weight(kg)
|
23.5kg
|
47kg
|
94kg
|
188kg
|
|
Dimensions(D*W*H)
|
580*220*202.5mm
|
580*220*510mm
|
580*220*850mm
|
580*220*1530mm
|
|
Certifications
|
CE,EMC,UN38.3
|
|||
|
IP Grade
|
IP65
|
|||
Home Power Storage Brick Battery uses the latest HVLL( High Voltage Less Loss) technology to efficiently utilize the
electricity stored in lithium batteries by reducing normal consumption in power transmission. The higher voltage, the lower current and the less losses of the internal resistance, so the battery generates less heat at high power than at low power.
Product Details
Product Packaging
Project Case
Company Profile
