brand:
pvcellschainitem no.:
20HV ESSshipping port:
Shanghai, NingboVoltage:
736(690-828)capacity:
1296kwhMaintenance Type:
Powercube-20H-M1Certificate:
ce/tuvLead Time:
15dayWarranty:
15yearBattery type:
Lithium BatteryBattery Size:
6.058*2.438*2.896m
|
Basic Parameters
|

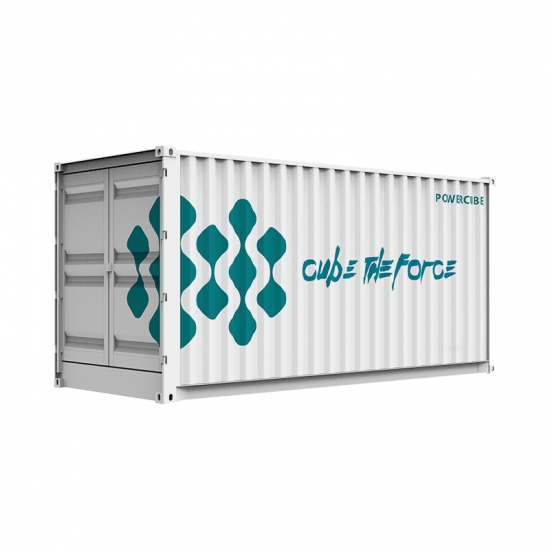

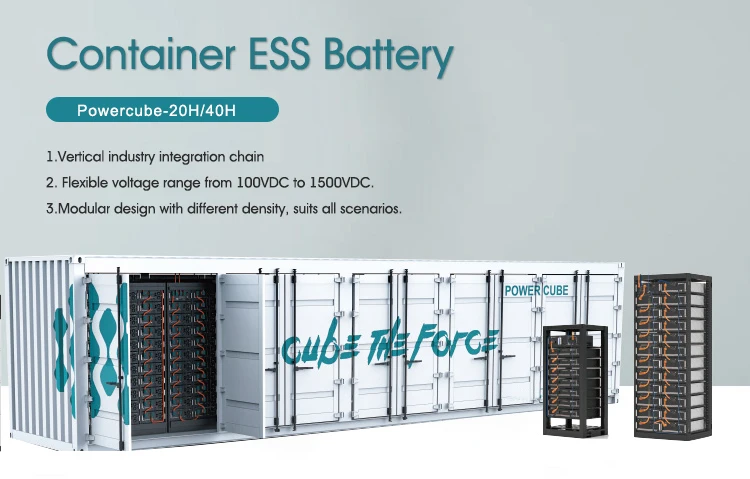

20ft High Voltage System Container
|

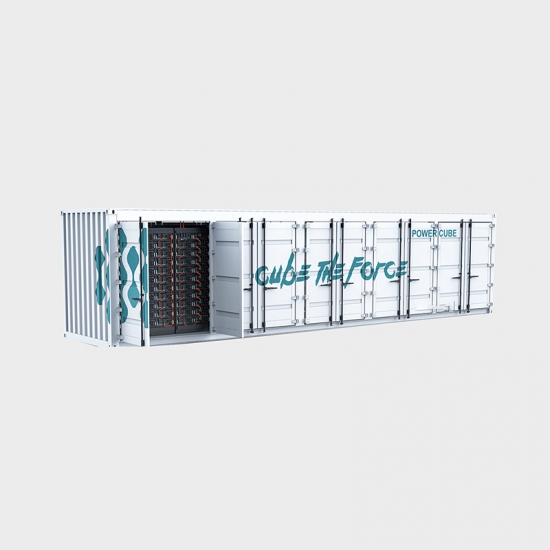

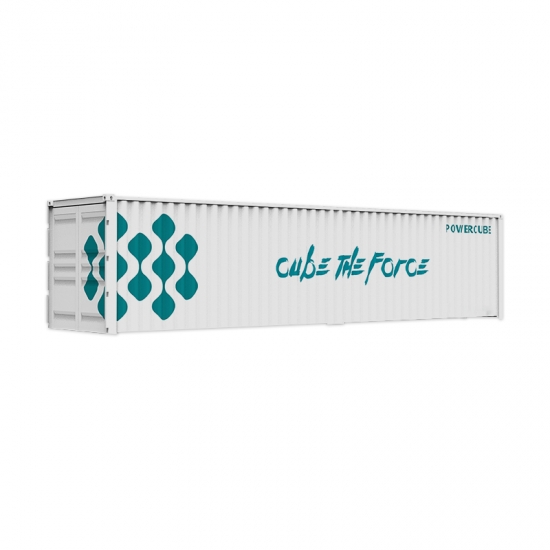

40ft High Voltage System Container
|
||
|
Container System Type
|
Powercube-20H-M1
|
Powercube-40H-M1
|
||
|
System Charge/Discharge Rate
|
0.5 C
|
|||
|
System Voltage Range(Vdc)
|
736(690-828)
|
|||
|
System Capacity (kWh)
|
1296
|
2592
|
||
|
Container System Type
|
Powercube-20H-M2
|
Powercube-40H-M2
|
||
|
System Charge/Discharge Rate
|
0.5 C
|
|||
|
System Voltage Range(Vdc)
|
806 (680-907)
|
1228 (1036-1382)
|
806 (680-907)
|
1228 (1036-1382)
|
|
System Capacity (kWh)
|
1432
|
1454
|
2983
|
3273
|
|
Container System Type
|
Powercube-20H-M3
|
Powercube-40H-M3
|
||
|
System Charge/Discharge Rate
|
1 C
|
|||
|
System Voltage Range(Vdc)
|
806(680-907)
|
1228(1036-1382)
|
806(680-907)
|
1228(1036-1382)
|
|
System Capacity (kWh)
|
1194
|
1091
|
2625
|
2546
|
|
Dimension (L*W*H,M)
|
6.058*2.438*2.896
|
12.192*2.438*2.896
|
||
|
Ambient Temperature(℃）
|
-20~50
|
|||
|
Communication
|
CANBUS/ModbusTCP/IP
|
|||
pvcellschain megawatt scale Lifepo4 Container ESS Energy Battery systems for grids,With up to 2 MW of power or 2500KWh storage capacity in a single 20-foot container
