product origin:
Chinabrand:
pvcellschainitem no.:
SW-48100shipping port:
Shanghai, Ningbocolor:
Optionallead time:
1weekpayment:
T/T,Alibaba Trade Assurance,Western Union, CrSealed Type:
(Li-ion) batteryVoltage:
48Vcapacity:
100AHCycle Life:
6000Certificate:
CE/TUVWarranty:
15YearsUsage:
Power Tools, Home Appliances, Consumer Electronics,

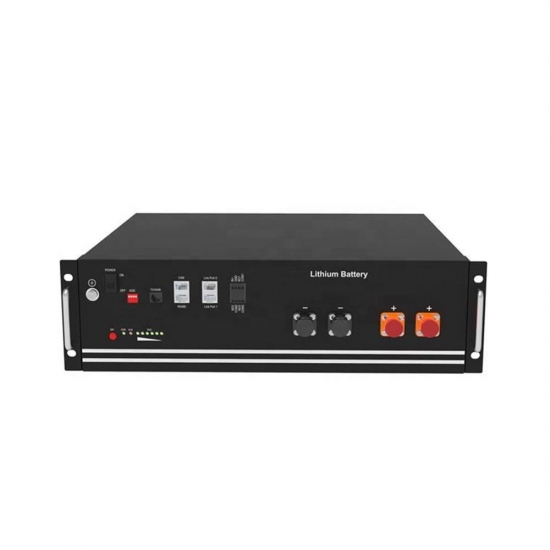

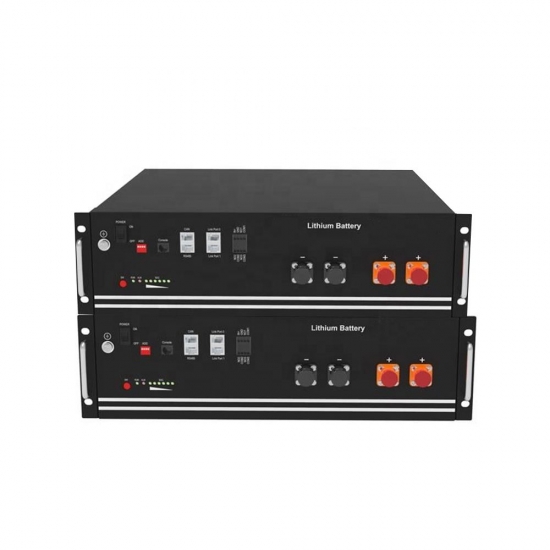

Lithium 48v 100ah Lithium Iron Phosphate Battery Pack
|
Basic Parameters
|
US2000
|
Phantom-S
|
SW-48100
|
|
Nominal Voltage (V)
|
48
|
48
|
51.2
|
|
Nominal Capacity (Wh)
|
2400
|
2400
|
5120
|
|
Usable Capacity (Wh)
|
2200
|
2200
|
4196
|
|
Dimension (mm)
|
442*410*89
|
440*440*88.5
|
482*400*177
|
|
Weight (Kg)
|
24
|
24
|
45
|
|
Discharge Voltage (V)
|
45 ~ 53.5
|
45 ~ 53.5
|
37.5-54.7
|
|
Charge Voltage (V)
|
52.5 ~ 53.5
|
52.5-53.5
|
48-54.7
|
|
Charge / Discharge Current (A)
|
25(Recommend)
|
25(Recommend)
|
50 (Recommend)
|
|
50 (Max)
|
50 (Max)
|
100(Max)
|
|
|
100 (Peak© 15s)
|
100 (Peak© 15s)
|
100 (Peak@15s)
|
|
|
Communication Port
|
RS485, CAN
|
RS485. CAN
|
RS485. CAN
|
|
Single string quantity(pcs)
|
8
|
8
|
8
|
|
Working Temperature/"C
|
-20~60
|
-80
|
-80
|
|
Shelf Temperature/°C
|
-80
|
-20 〜60
|
-80
|
|
Humidity
|
5%~85%
|
5%~85%
|
5%~85%
|
|
Altitude (m)
|
<4000
|
<4000
|
<4000
|
|
Design life
|
15+Years (25°C/77°F)
|
15+Years (25°C/77T)
|
15+Years (25aC/77T)
|
|
Cycle Life
|
>6000, 25C
|
>6000, 25 C
|
>6000, 25C
|
|
Authentication Level
|
IEC62619/CE/UN38.3
|
IEC62619/CE /UN38.3
|
IEC62619/CE /UN38.3
|

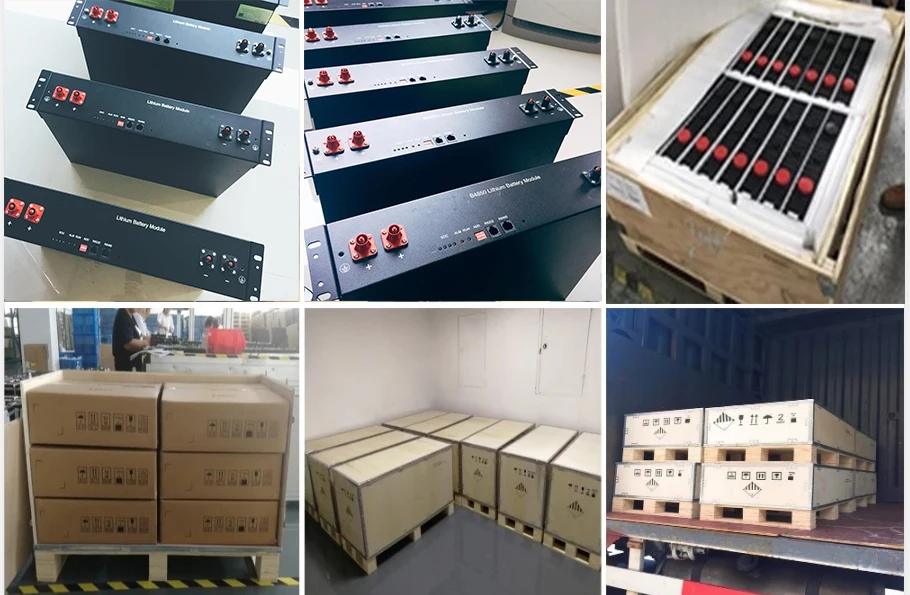

Product Packaging
A lithium-ion battery or Li-ion battery is a type of rechargeable battery.
A lithium-ion battery or Li-ion battery is a type of rechargeable battery.
A lithium-ion battery or Li-ion battery is a type of rechargeable battery.
A lithium-ion battery or Li-ion battery is a type of rechargeable battery.
A lithium-ion battery or Li-ion battery is a type of rechargeable battery.
Advantages of lithium iron phosphate battery pack: *Long life, lithium iron phosphate battery, cycle life of more than 5000 times. *Rechargeable batteries usually work when fully charged and never discharge. No matter what state the battery is in, it can be charged and used without having to discharge and recharge. *Small in size, light in weight and large in capacity, lithium-ion batteries with the same specifications and capacity are 2/3 the volume and 1/3 of the weight of lead-acid batteries.
Features of pvcellschain Solar Home Battery Storage Solution 1. Adopting the latest Latest LifePo4 prismatic cell technology 2. Warranted throughout of 10MWh per 1kWh of stored capacity 3. 1C Discharge rate and 0.5C Charge rate 4. 158Wh per Kg+/-5% for cells 5. 2.6kWh 5kWh 10kWh optional 6. 5000 cycles @25℃ 0.7C conditions 7. Plug and Play functionality 8. Multiple BMS functionality allowing greater control and monitor 9. Scalable Battery Packs 10.Wall mounted and Ground type selectable 11.Multiple Energy Capacity options 12.BMS Compatible with Growatt, Goodwe, Deye, SMA, etc., 13.Wall mounted lithium battery is mainly for home energy stoarge solutions.
