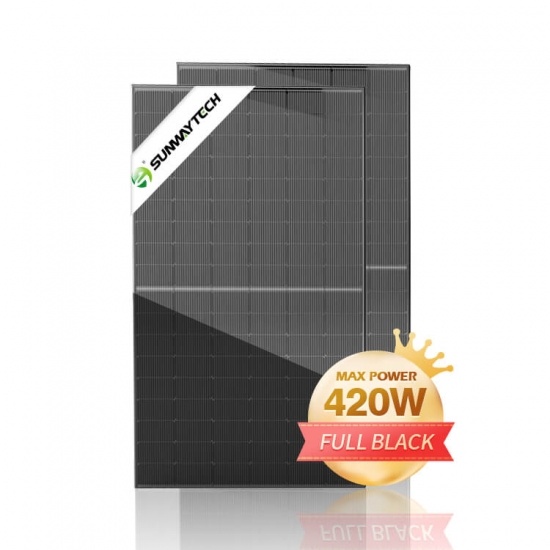

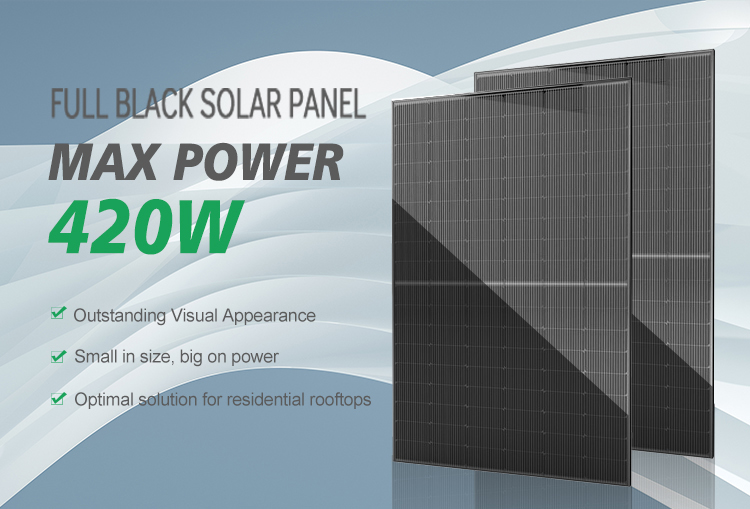

brand:
pvcellschainitem no.:
SW420M-108Number Of Cells:
108 CellPower Range:
400-420WCertificate:
CE/TUVWarranty:
30 Years
|
Electrical Parameters
|
|||||
|
Module
|
SW400M-108 ~ SW420M-108
|
||||
|
Encapsulation
|
Class/Eva/Cell/Eva/Backsheet
|
||||
|
Maximum Power Pmax (W)
|
400
|
405
|
410
|
415
|
420
|
|
Maximum Power Voltage (Vmp/V)
|
31.00
|
31.15
|
31.30
|
31.45
|
31.60
|
|
Maximum Power Current (Imp/A)
|
12.91
|
13.01
|
13.10
|
13.20
|
13.30
|
|
Open Circuit Voltage (Voc/V)
|
36.96
|
37.11
|
37.26
|
37.41
|
37.56
|
|
Short Circuit Current (Isc/A)
|
13.60
|
13.70
|
13.79
|
13.89
|
13.98
|
|
Module Efficiency (%)
|
20.48
|
20.74
|
21.00
|
21.25
|
21.51
|
|
Power Tolerance (W)
|
0 ~ +5W
|
||||
|
Temperature Coefficient of Isc (αIsc)
|
+0.048%/℃
|
||||
|
Temperature Coefficient of Voc (βVoc)
|
-0.27%/℃
|
||||
|
Temperature Coefficient of Pmax (γPmp)
|
-0.34%/℃
|
||||
|
STC
|
Irradiance 1000W/㎡, Cell Temperature 25℃ , Spectrum AM 1.5
|
||||

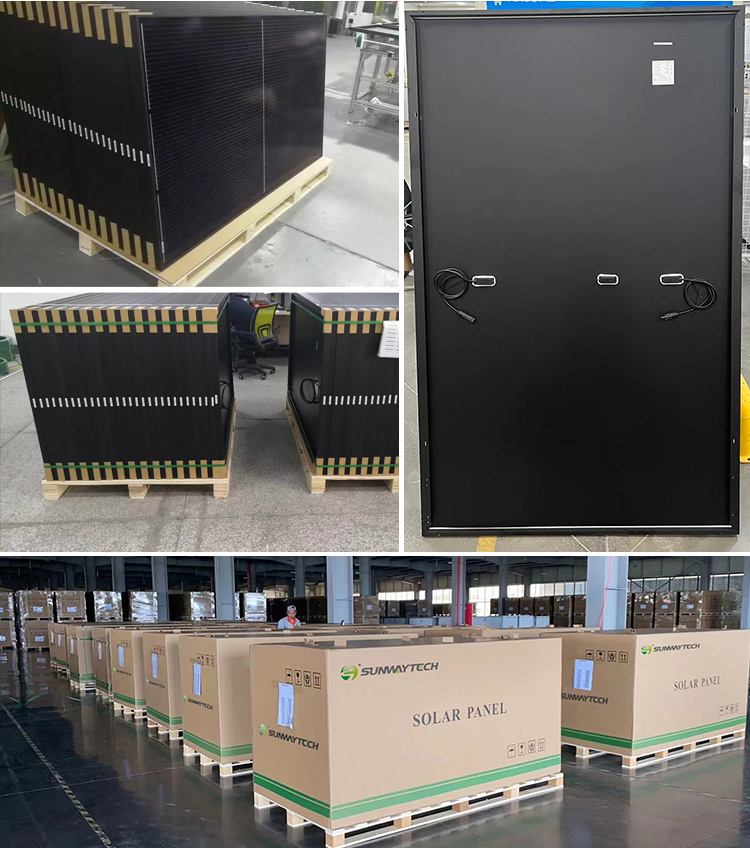

Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.
