brand:
pvcellschainSealed Type:
VRLAVoltage:
12Vcapacity:
100Ah - 250AhMaintenance Type:
Free MaintenanceCycle Life:
Deep CycleCertificate:
CE, ISO14001, ISO9001Lead Time:
7 DaysPayment:
T/T, Paypal, Western UnionWarranty:

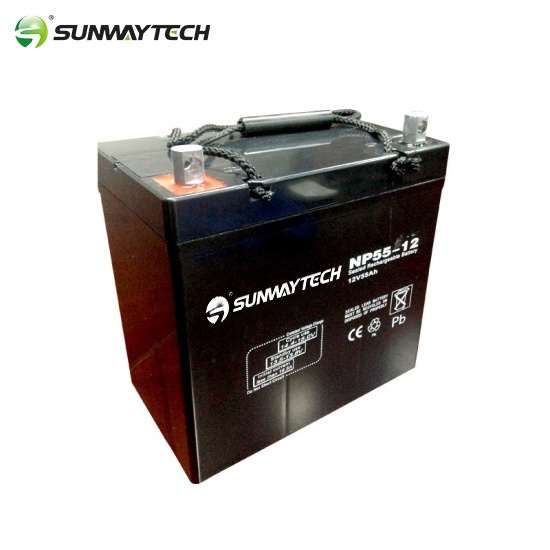

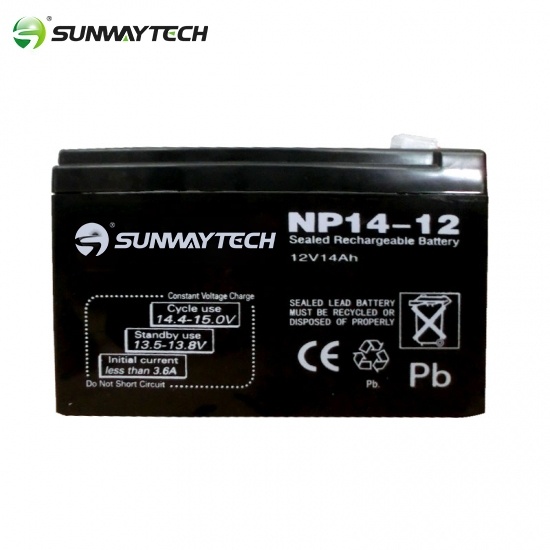

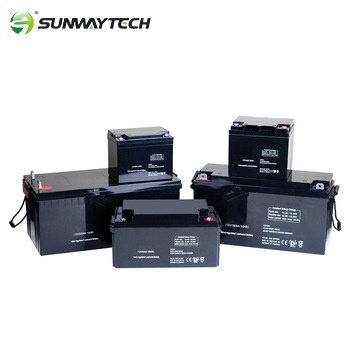

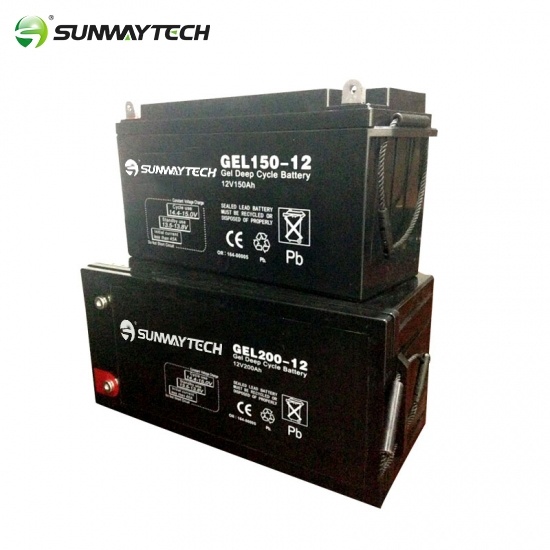

3 YearsProduct Name:12V Deep Cycle GEL VRLA Battery
Voltage:12V
Capacity:From 100Ah to 200Ah
Designed floating service life: 12 Years at 20°C/68°F)
General Features
Low Self-discharge rate
Long Shelf Life
Sealed and Maintenance-free Operation
Electrolyte immobilized as gel state, no leakage and no stratification
Supper deep cycle life and stability at high temperature
Excellent deep discharge recovery capability
Construction
Positive plate – Thick high Sn low Ca 3D flat pasted plate
Negative plate – Balanced Pb-Ca grid and AM with Supper-C addtives
Separator – Imported Daramic PVC separator for Gel battery
Electrolyte – nano GEL electrolyte
Battery container and cover – ABS for higher temperature
Pillar seal – 100% factory tested, proven two layers epoxy resin seal
Relief valve – Complete with integrated flame arrestor
Charging Voltage
Constant voltage charging is recommended
Recommended float charge voltage: 2.25Vpc @ 20~25°C
Float voltage temperature compensation: -3mV/°C/cell
Float voltage range: 2.25 to 2.28 Vpc @ 20~25°C
Cyclic application charge voltage : 2.35 to 2.40Vpc @ 20~25°C
Max. charge current allowable : 0.25C10A
Typical Applications
Telecom
Solar and wind energy system
Other applications with high temperature and frequent power failure
Pitched Roof Mounting Support for Solar Panels, Pre-assembly and flexibility, Low cost and high application, Anti-corrosion, 100% recycled, Portable and beautiful.
pvcellschain 12V 24V 48V 30A 40A 50A 60A Mppt Solar Charge Controller Easy to set up and operate, suitable for home, industrial, commercial etc.
20A 30A 40A 50A 60A MPPT Solar Charge Controller Easy to set up and operate, suitable for home, industrial, commercial etc.
A variant of these types of batteries that are valve regulated and have gel electrolyte are called OPZV. These are a maintenance free variant of OPZV.
A lithium-ion battery or Li-ion battery is a type of rechargeable battery.
Gel Battery 12V 100Ah Agm Solar Lead Acid Battery Price Products Specification Model 6-GFM-100Ah 6-GFM(G)-100Ah Cells Per Unit 6 Voltage Per Unit 12 Capacity 100Ah@10hr-rate to 1.80V per cell @25°C Weight 28.3kg 30.8kg Internal Resistance Approx. 4.5 mΩ Approx. 6 mΩ Terminal F8 Max.Discharge Current 1500A (5 sec) Design Life 6~8 years 10~15 years Maximum Charging Current 25A Reference Capacity C10 100.0AH C3 76.8AH C1 55.2AH C10 100.0AH C3 74.6AH C1 56.8AH Float Charging Voltage 13.6 V~13.8 V @ 25°C Temperature Compensation: -20mV/°C/Cell Cycle Use Voltage 14.4 V~14.9 V @ 25°C Temperature Compensation: -30mV/°C/Cell Operating Temperature Range Discharge: -15°C~50°C Charge: 0°C~40°C Storage: -15°C~40°C Discharge: -20°C~60°C Charge: 0°C~50°C Storage: -20°C~60°C Normal Operating Temperature Range 25°C±5°C Self Discharge Less than 3% at 25°C per month Container Material A.B.S. UL94-HB, UL94-V0 Optional Detailed Images Products Projects
