product origin:
Anhuibrand:
pvcellschainitem no.:
pv cableshipping port:
Shanghaicolor:
Black, redlead time:
10-30payment:
EXW, FOB, CIF, CFR, DDU, DAT, DAP, etc.,Payment:
T/T, L/C, Alipay, Paypal, Western Union

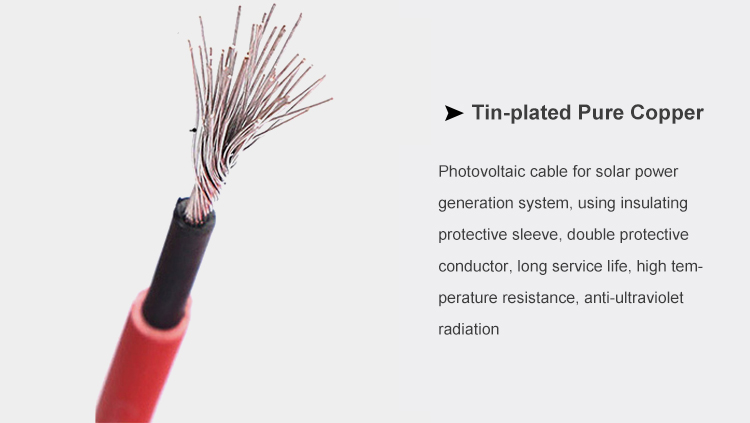

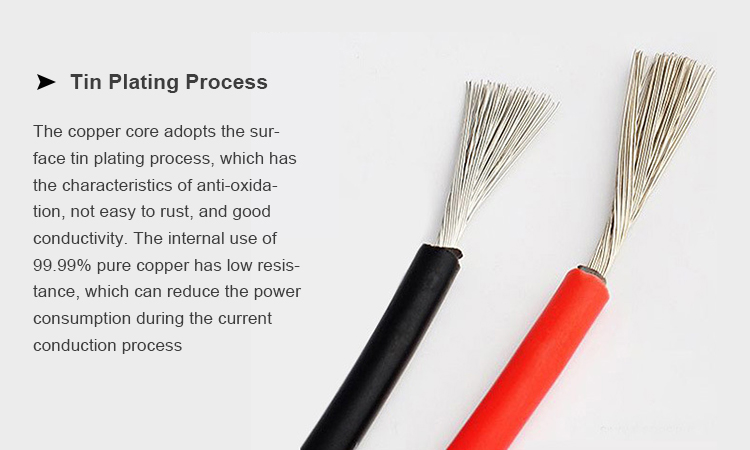

1.Corrosion resistance: the conductor adopts tinned soft copper wire, which has good corrosion resistance
|
Type
|
Specification (mm2）
|
Conductor Construction
|
Outer Diameter (mm)
|
Max. Conductor Resistance at 20°C (C/KM)
|
Current Carring Capacity
|
|

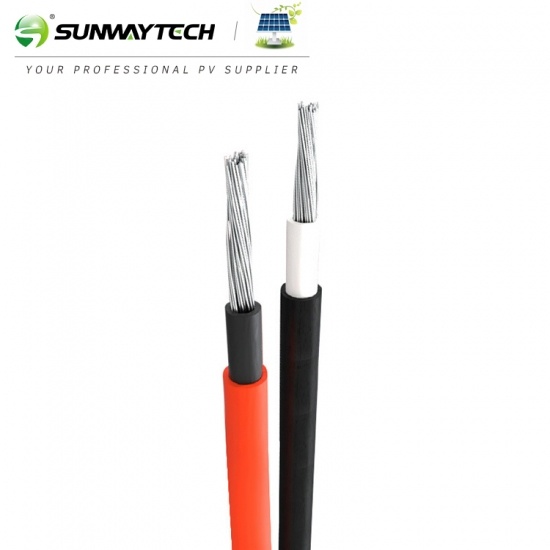

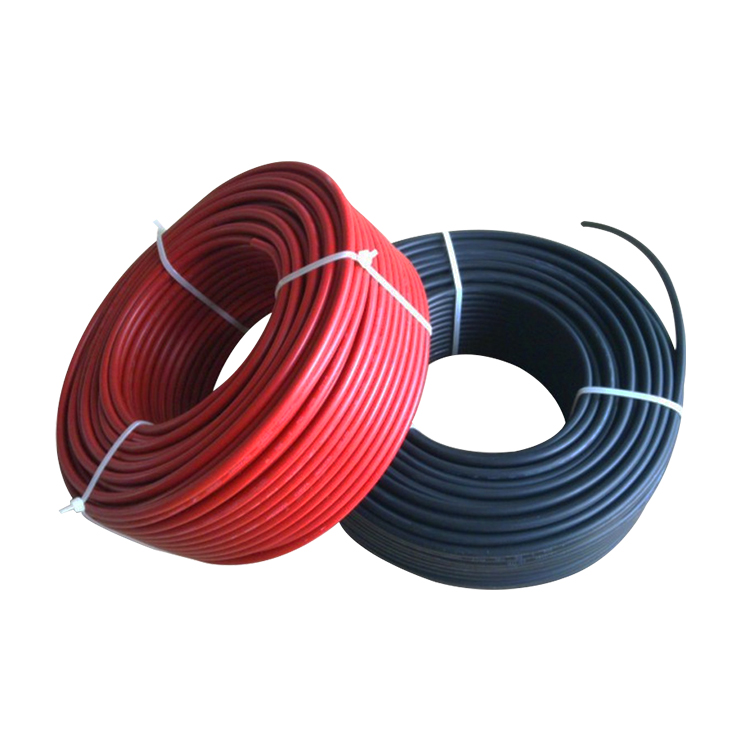

Single core solar pv power cable
|
1x1.5
|
30/0.25
|
4.9
|
13.3
|
30
|
|
1x2.5
|
50/0.25
|
5.4
|
7.98
|
41
|
|
|
1x4
|
56/0.3
|
6.1
|
4.75
|
50
|
|
|
1x6
|
84/0.3
|
7.2
|
3.39
|
70
|
|
|
1x10
|
142/03
|
9
|
1.95
|
98
|
|
|
1x16
|
228/0.3
|
10.2
|
1.24
|
132
|
|
|
1x25
|
361/0.3
|
12
|
0.795
|
176
|
|
|
1x35
|
525/0.3
|
13.8
|
0.565
|
218
|
|
|
1x50
|
720/0.3
|
14.8
|
0.393
|
280
|
|
|
1x70
|
988/0.3
|
16.9
|
0.277
|
350
|
|
|
1x95
|
1349/0.3
|
18.7
|
0.21
|
410
|
|
|
1x120
|
1691/0.3
|
20.7
|
0.164
|
480
|
|
|

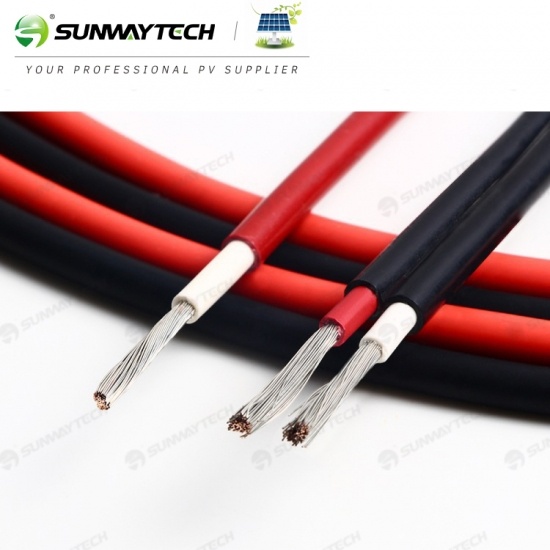

Twin/Dual core round solar pv power cable
|
2x1.5
|
30/0.25
|
83
|
13.3
|
30
|
|
2x2.5
|
50/0.25
|
9.2
|
7.98
|
41
|
|
|
2x4
|
56/0.3
|
12
|
4.75
|
50
|
|
|
2x6
|
84/0.3
|
13.5
|
3.39
|
70
|
|
|
2x10
|
142/0.3
|
17.6
|
1.95
|
98
|
|
|
2x16
|
228/0.3
|
19.8
|
1.24
|
132
|
|
|

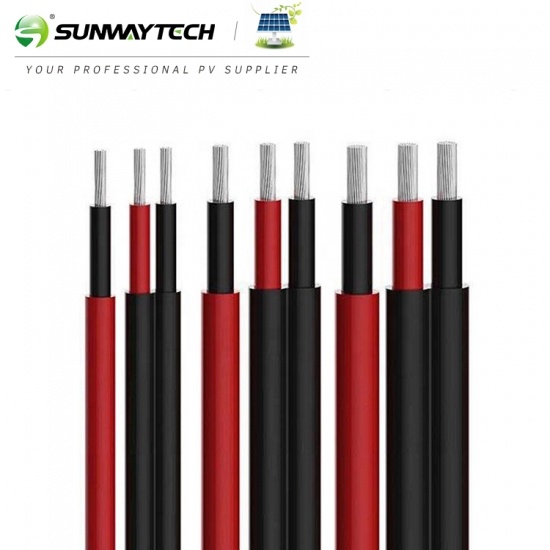

Twin/Dual core flat solar pv power cable
|
2x2.5
|
50/0.25
|
5.4x10.9
|
7.98
|
41
|
|
2x4
|
56/0.3
|
6.1x12.3
|
4.75
|
50
|
|
|
2x6
|
84/0.3
|
7.2x12.9
|
3.39
|
70
|
