brand:
pvcellschainitem no.:
20HV ESSshipping port:
Shanghai, NingboSealed Type:
High Voltage System ContainerVoltage:
736(690-828)capacity:
2592kwhMaintenance Type:
Powercube-40H-M1Certificate:
ce/tuvLead Time:
15dayWarranty:
15yearBattery type:
Lithium BatteryBattery Size:
12.192*2.438*2.896
40ft High Capacity Deep Cycle Lithium Battery 2.5MWh
Product Parameter
|
Basic Parameters
|

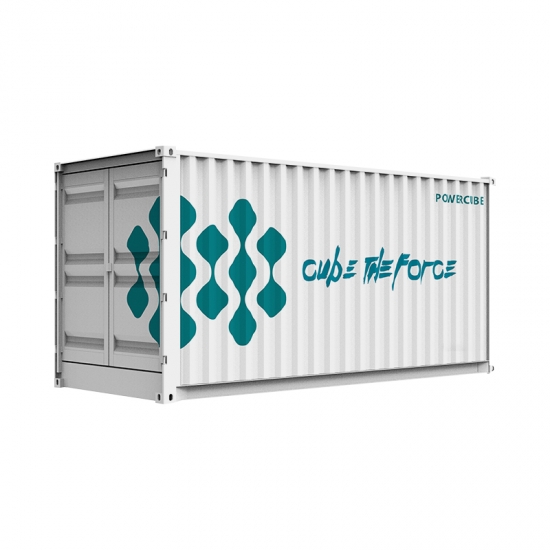

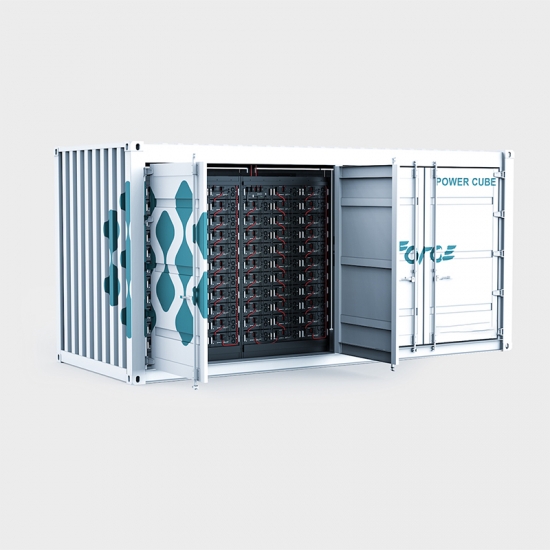

20ft High Voltage System Container
|

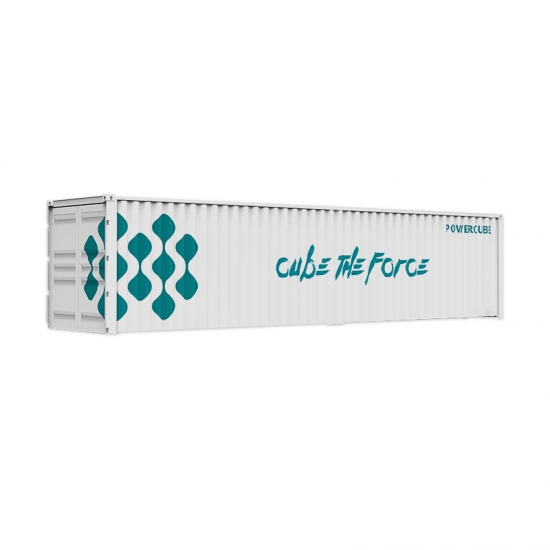

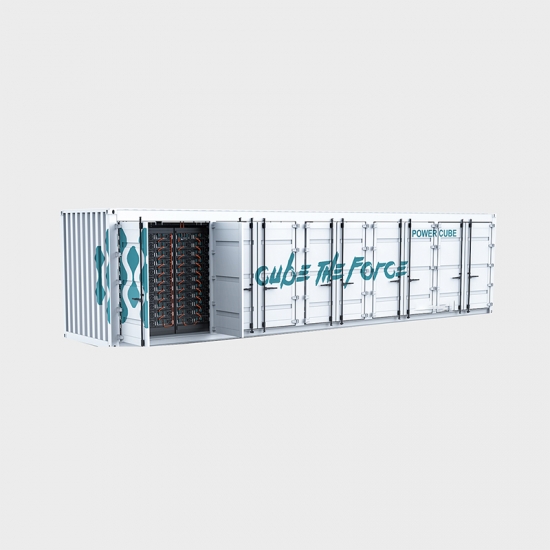

40ft High Voltage System Container
|
||
|
Container System Type
|
Powercube-20H-M1
|
Powercube-40H-M1
|
||
|
System Charge/Discharge Rate
|
0.5 C
|
|||
|
System Voltage Range(Vdc)
|
736(690-828)
|
|||
|
System Capacity (kWh)
|
1296
|
2592
|
||
|
Container System Type
|
Powercube-20H-M2
|
Powercube-40H-M2
|
||
|
System Charge/Discharge Rate
|
0.5 C
|
|||
|
System Voltage Range(Vdc)
|
806 (680-907)
|
1228 (1036-1382)
|
806 (680-907)
|
1228 (1036-1382)
|
|
System Capacity (kWh)
|
1432
|
1454
|
2983
|
3273
|
|
Container System Type
|
Powercube-20H-M3
|
Powercube-40H-M3
|
||
|
System Charge/Discharge Rate
|
1 C
|
|||
|
System Voltage Range(Vdc)
|
806(680-907)
|
1228(1036-1382)
|
806(680-907)
|
1228(1036-1382)
|
|
System Capacity (kWh)
|
1194
|
1091
|
2625
|
2546
|
|
Dimension (L*W*H,M)
|
6.058*2.438*2.896
|
12.192*2.438*2.896
|
||
|
Ambient Temperature(℃）
|
-20~50
|
|||
|
Communication
|
CANBUS/ModbusTCP/IP
|
|||
1200kwh High Voltage Battery energy storage system Vertical industry integration chain, Modular design with different density, suits all scenarios.
pvcellschain megawatt scale Lifepo4 Container ESS Energy Battery systems for grids,With up to 2 MW of power or 2500KWh storage capacity in a single 20-foot container
Our 60W Endurance Solar Lights provide a cost effective, energy efficient, and long term outdoor lighting solution, giving you a completely off the grid option.
This compact all-in-one portable solar power generator offers emergency backup power for off-grid and outdoor applications.
Deye microinverters power ranges from 300W to 2000W, and it comes with different output voltage 220V/230V/127V. It supports multiple communication methods WIFI/PLC/Zigbee. Thanks to the MECD, communication gateway, the microinverter can be turned off remotely and immediately.
Hybrid Solar Inverter is compatible with both on-grid and off-grid PV systems. It can control the flow of energy intelligently. During daytime, the PV plant generates electricity which can be provided to the loads, fed into the grid or charge the battery. The electricity stored can be released when the loads require it, for example during the night. Additionally, the grid can also be used to charge the storage devices via the inverter (UPS function).
The perfect choice for residential and small commercial PV systems. Ranging from 3kW to 25kW, our anodized aluminum, unibody inverters ensure durability. Monitor your system remotely with Wi-Fi, Ethernet, or GPRS connectivity. Stay connected through our online portal or app.
A variant of these types of batteries that are valve regulated and have gel electrolyte are called OPZV. These are a maintenance free variant of OPZV.
The perfect plug-and-play solution for harnessing solar energy. With power outputs ranging from 210w to 230w, these high-quality panels are designed for easy installation on your balcony or house roof.
Hybrid solar system is a solar system, suitable for a place where is no grid network or grid power is not stable. This solar can be described as off-grid solar system with utility backup power, or grid-tied solar system with extra battery storage.
10KW 20KW Photovoltaics Solar Off-grid system is suitable for areas without grid-connected or unstable geid-connected power for home Energy Systems
Gel Battery 12V 100Ah Agm Solar Lead Acid Battery Price Products Specification Model 6-GFM-100Ah 6-GFM(G)-100Ah Cells Per Unit 6 Voltage Per Unit 12 Capacity 100Ah@10hr-rate to 1.80V per cell @25°C Weight 28.3kg 30.8kg Internal Resistance Approx. 4.5 mΩ Approx. 6 mΩ Terminal F8 Max.Discharge Current 1500A (5 sec) Design Life 6~8 years 10~15 years Maximum Charging Current 25A Reference Capacity C10 100.0AH C3 76.8AH C1 55.2AH C10 100.0AH C3 74.6AH C1 56.8AH Float Charging Voltage 13.6 V~13.8 V @ 25°C Temperature Compensation: -20mV/°C/Cell Cycle Use Voltage 14.4 V~14.9 V @ 25°C Temperature Compensation: -30mV/°C/Cell Operating Temperature Range Discharge: -15°C~50°C Charge: 0°C~40°C Storage: -15°C~40°C Discharge: -20°C~60°C Charge: 0°C~50°C Storage: -20°C~60°C Normal Operating Temperature Range 25°C±5°C Self Discharge Less than 3% at 25°C per month Container Material A.B.S. UL94-HB, UL94-V0 Optional Detailed Images Products Projects
