brand:
pvcellschainSealed Type:
VRLAVoltage:
12Vcapacity:
20Ah - 250AhMaintenance Type:
Free MaintenanceCycle Life:
Deep CycleCertificate:
CE ISO9001, ISO14001Lead Time:
7 DaysPayment:
T/T, Paypal, Western UnionWarranty:

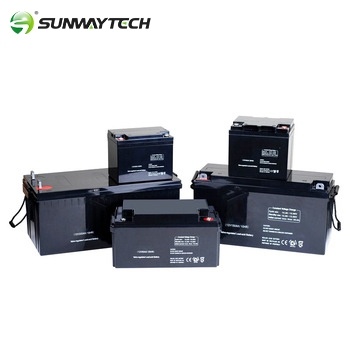

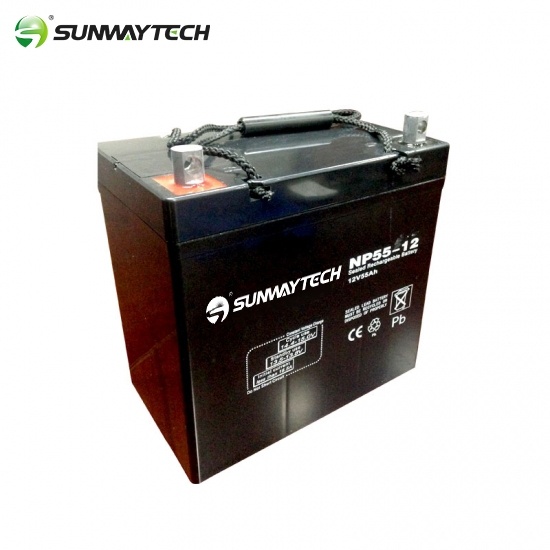

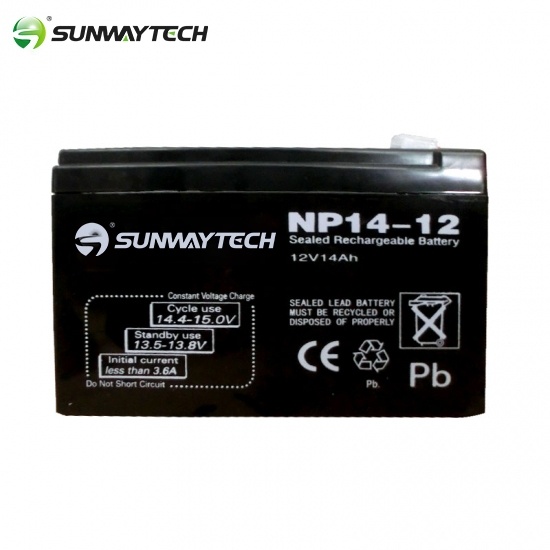

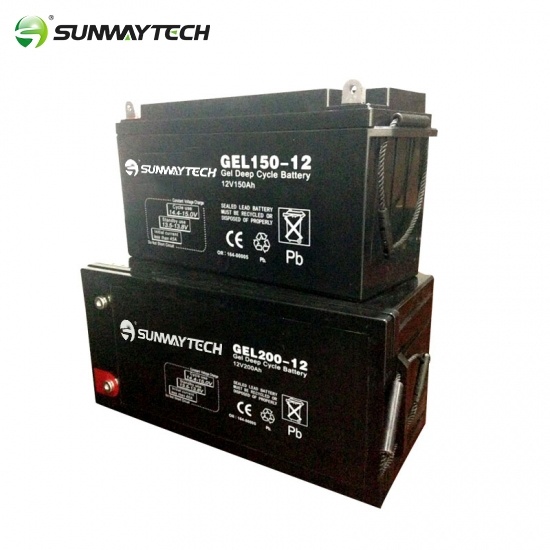

3 YearsProduct Name:12V Solar VRLA GEL Battery
Voltage:12V
Capacity:From 20Ah to 250Ah
Designed floating service life:12 Years at 20°C/68°F
General Features
Nonspillable
Sealed and Maintenance-free Operation
Low Self-discharge rate
Long Service Life(9 months at 25°C)
Computer-aided Design and Manufacturing
Wide operating temperature range from -20 °C to 55°C
Up to 5 years design life at renewable energy applications according to IEC61427
Nano gel electrolyte eliminate the acid stratification and prolong cycle life
Excellent deep discharge recovery capability
Construction
Positive plate – Thick high Sn low Ca grid with high density paste
Negative plate – Over designed capacity to overcome sulphation at low SOC
Separator – Advanced AGM separator
Electrolyte – Dilute high purity sulphuric acid with nano gel
Battery container and cover – ABS
Pillar seal – 100% factory tested, proven two layers epoxy resin seal
Relief valve – Complete with integrated flame arrestor
Typical Applications
Photovoltaic systems
Renewable Energy Systems
Electric Utilities
Outdoor control Equipments
Railroad Utilities
Pitched Roof Mounting Support for Solar Panels, Pre-assembly and flexibility, Low cost and high application, Anti-corrosion, 100% recycled, Portable and beautiful.
pvcellschain 12V 24V 48V 30A 40A 50A 60A Mppt Solar Charge Controller Easy to set up and operate, suitable for home, industrial, commercial etc.
20A 30A 40A 50A 60A MPPT Solar Charge Controller Easy to set up and operate, suitable for home, industrial, commercial etc.
Surface pumps are designed to pump water from surface sources like springs, ponds, tanks, or shallow wells. Most of our surface pumps are either diaphragm pumps or rotary vane pumps and can run solar-direct for simple, inexpensive operation.
Deep Cycle Lead Acid 12V250AH Gel Solar Battery Price Products Specification Model 6-GFM-250Ah 6-GFM(G)-250Ah Cells Per Unit 6 Voltage Per Unit 12 Capacity 250Ah@10hr-rate to 1.80V per cell @25°C Weight Approx. 70.0 Kg (Tolerance±1.5%) Internal Resistance Approx. 2.0 mΩ Approx. 2.5 mΩ Terminal F8 Max.Discharge Current 3750A (5 sec) Design Life 6~8 years 10~15 years Maximum Charging Current 62.5A Reference Capacity C10 250.0AH C3 191.7AH C1 138.1AH C10 250.0AH C3 181.0AH C1 137.6AH Float Charging Voltage 13.6 V~13.8 V @ 25°C Temperature Compensation: -20mV/°C/Cell Cycle Use Voltage 14.4 V~14.9 V @ 25°C Temperature Compensation: -30mV/°C/Cell Operating Temperature Range Discharge: -15°C~50°C Charge: 0°C~40°C Storage: -15°C~40°C Discharge: -20°C~60°C Charge: 0°C~50°C Storage: -20°C~60°C Normal Operating Temperature Range 25°C±5°C Self Discharge Less than 3% at 25°C per month Container Material A.B.S. UL94-HB, UL94-V0 Optional Detailed Images Products Projects
