product origin:
Anhuibrand:
pvcellschainitem no.:
SW-M144shipping port:
Shanghai/Ningbocolor:
Black and Whitelead time:
15-20 Working dayspayment:
T/T, L/C, Paypal, Western UnionSolar Cell:
9BB 166*83mmNumber Of Cells:
144 CellPower Range:
440W-480WCertificate:
CE/TUV/ISOLead Time:
15 Working daysPayment:
LC, TT, Western Union, Credit Card, etc.Warranty:
25 YearsProducts Description

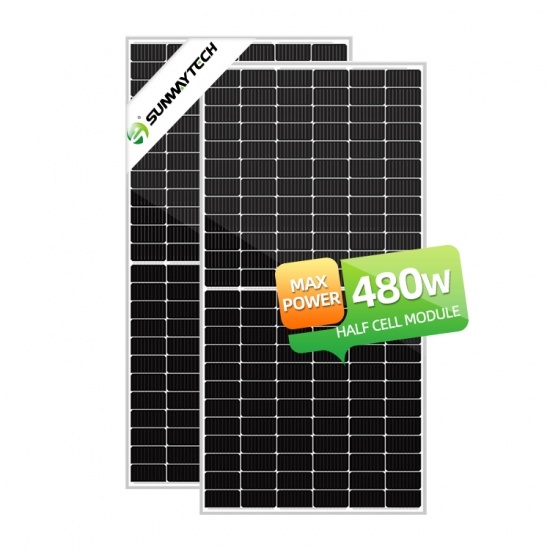

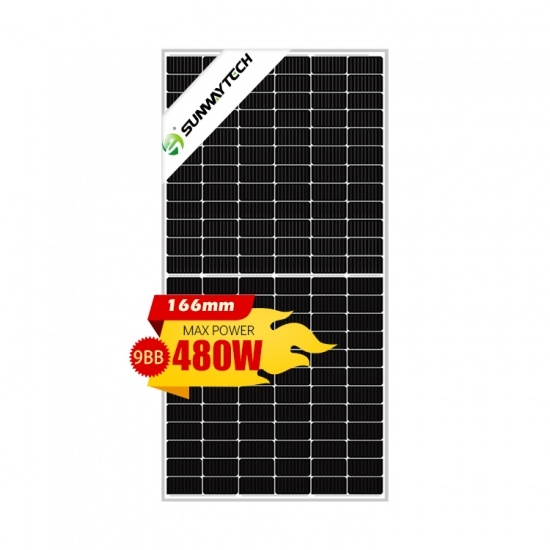

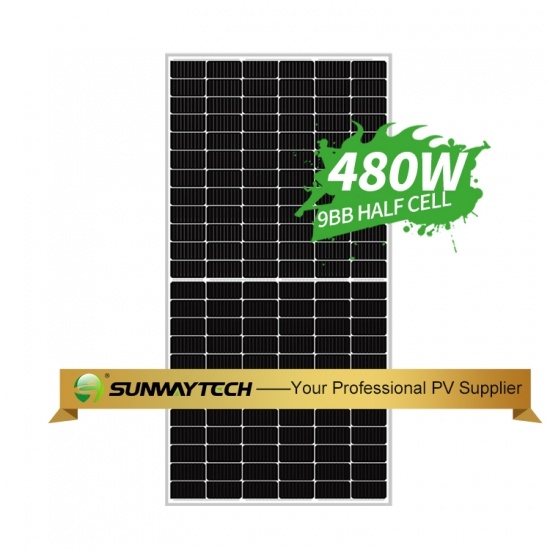

470w 480w Half Solar Monocrystalline PV Panel for Farm
|
Electrical Characteristics(STC)
|
|||||||
|
Module
|
SW440W-144 ~ SW480M-144
|
||||||
|
Module Type
|
SW440M
|
SW445M
|
SW450M
|
SW455M
|
SW460M
|
SW470M
|
SW480M
|
|
Maximum Power (Pmax)
|
440W
|
445W
|
450W
|
455W
|
460W
|
470W
|
480W
|
|
Maximum Power Voltage (Vmp)
|
40.50V
|
40.80V
|
41.00V
|
41.20V
|
41.40V
|
41.60V
|
41.80V
|
|
Maximum Power Current (Imp)
|
10.86A
|
10.92A
|
10.98A
|
11.04A
|
11.10A
|
11.16A
|
11.22A
|
|
Open-circuit Voltage (Voc)
|
49.00V
|
49.20V
|
49.50V
|
49.80V
|
50.00V
|
50.30V
|
50.50V
|
|
Short-circuit Current (Isc)
|
11.30A
|
11.36A
|
11.42A
|
11.48A
|
11.54A
|
11.60A
|
11.66A
|
|
Module Efficiency (%)
|
19.62%
|
20.14%
|
20.37%
|
20.60%
|
20.82%
|
21.04%
|
21.26%
|
|
Power Tolerance
|
0~+5W
|
||||||
|
Temperature Coeffcient of Isc
|
+0.05%/℃
|
||||||
|
Temperature Coeffcient of Voc
|
-0.29%/℃
|
||||||
|
Temperature Coeffcient of Pmax
|
-0.37%/℃
|
||||||
The Newest Products 9BB 144cells panels solar Half Cell High Efficiency High Power Output Mono Solar Panel with 158.75mm*79.375mm Large Size Solar Cell
PV 480 Watt Solar Panels is made up of 144 monocrystalline half-cells on a white backsheet with a silver anodized aluminum alloy frame. Certified for the most challenging environmental conditions, This high-power monocrystalline solar panel operates at 21.26% efficiency to maximize the light absorption area.
Half Cell 144 Cells Solar Panels Certified for the most challenging environmental conditions, This 450w Photovoltaic high-power monocrystalline solar panel operates at 21.26% efficiency to maximize the light absorption area.
pvcellschain solar panel 144Cells 9BB Mono 48v Solar Panel 440W 480 Watt for Solar Home Power System, This high-power monocrystalline solar panel operates at 21.26% efficiency to maximize the light absorption area.
MPPT Hybrid Solar Inverter 7.6KW 8KW - Efficiency max 97.6% combines a battery charging system, battery inverter, hybrid inverter, ... and to temporarily store surplus energy from a photovoltaic system in a battery storage device.
Clean Energy Hybrid Solar Power System, easy installation. Specially Customized as client requested.
Deye microinverters power ranges from 300W to 2000W, and it comes with different output voltage 220V/230V/127V. It supports multiple communication methods WIFI/PLC/Zigbee. Thanks to the MECD, communication gateway, the microinverter can be turned off remotely and immediately.
Model SW 30 50 100 120 150KW Hybrid Inverter( KW) 30KW 50KW 100KW 120KW 150KW 550W Mono Solar Panel (Pcs) 56 96 200 240 280 PV Combiner Box (Set) 1 1 1 1 1 Lead Acid Gel/ AGM Battery 336V-438V 200Ah 336V-438V 200Ah 336V-438V 200Ah 336V-438V 200Ah 336V-438V 200Ah Quantity of Battery (Pcs) 1 2 4 4 6 DC Cable (m) 400 600 800 800 1000
A lithium-ion battery or Li-ion battery is a type of rechargeable battery.
20kW Bi-directional Wireless Power Transfer System with Energy Storage System (WPT) systems for ac grid side power and mobile energy storage systems
200W Solar Outdoor Street Lights, 18000 Lumens Dusk to Dawn Solar Led Light with Remote Control, 6000K Daylight White Solar Security Flood Lights for Yard
Front Terminal GEL Storage Battery 12V 150AH Lead Acid Battery Products Specification Model 6-GFM-150Ah 6-GFM(G)-150Ah Cells Per Unit 6 Voltage Per Unit 12 Capacity 150Ah@10hr-rate to 1.80V per cell @25°C Weight 43kg 47kg Internal Resistance Approx. 3.5 mΩ Approx. 4 mΩ Terminal F8 Max.Discharge Current 2250A (5 sec) Design Life 6~8 years 10~15 years Maximum Charging Current 37.5A Reference Capacity C10 150.0AH C3 115.0AH C1 82.8AH C10 150.0AH C3 108.7AH C1 82.4AH Float Charging Voltage 13.6 V~13.8 V @ 25°C Temperature Compensation: -20mV/°C/Cell Cycle Use Voltage 14.4 V~14.9 V @ 25°C Temperature Compensation: -30mV/°C/Cell Operating Temperature Range Discharge: -15°C~50°C Charge: 0°C~40°C Storage: -15°C~40°C Discharge: -20°C~60°C Charge: 0°C~50°C Storage: -20°C~60°C Normal Operating Temperature Range 25°C±5°C Self Discharge Less than 3% at 25°C per month Container Material A.B.S. UL94-HB, UL94-V0 Optional Detailed Images
