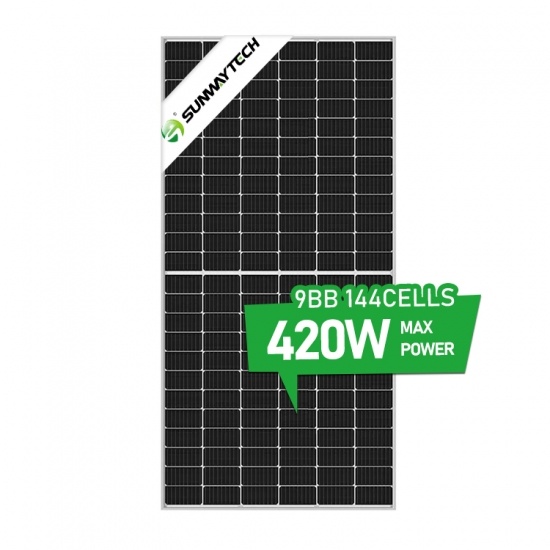

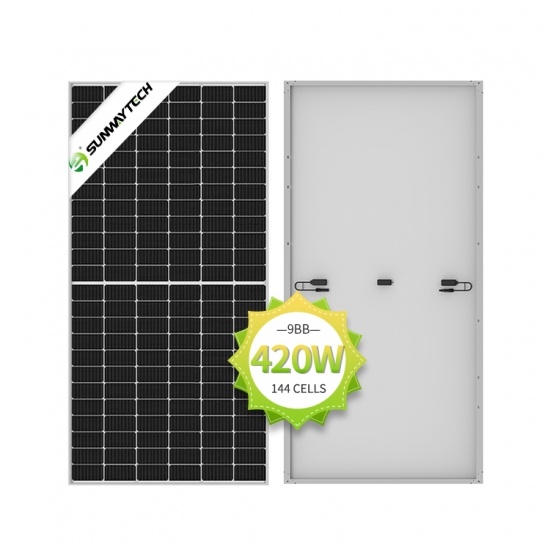

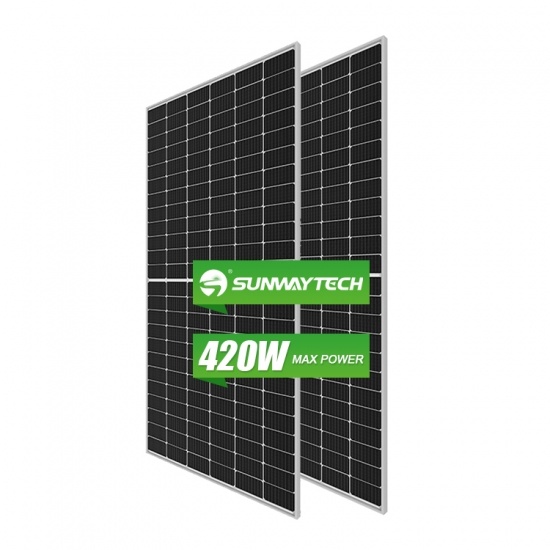

MBB 9BB Solar Panel Half Cut 144cells Perc 420W PV Module 420Watt Mono Paneles Solares

The Newest Products 9BB 144cells panels solar Half Cell High Efficiency High Power Output Mono Solar Panel with 158.75mm*79.375mm Large Size Solar Cell
  • product origin:

    China
  • brand:

    pvcellschain
  • item no.:

    SW420M-72
  • shipping port:

    Ningbo/Shanghai Port
  • color:

    Black and White
  • lead time:

    15-20 Working days
  • payment:

    T/T, L/C, Paypal, Western Union
  • Solar Cell:

    158.75mm*79.375mm
  • Number Of Cells:

    144Cells
  • Power Range:

    395W-420w
  • Certificate:

    CE/TUV/ISO
  • Lead Time:

    15 Working days
  • Payment:

    LC, TT, Western Union, Credit Card, etc.
  • Warranty:

    25 Years
  • product details

Product Name: MBB 9BB Solar Panel Half Cut Half Cells Perc 420W PV Module 420Watt Mono Paneles Solares



Technical Parameters of 9BB 395w to 420w Mono Solar Panel

Electrical Characteristics(STC)

Module Type

SW395M-72

SW400M-72

SW405M-72

SW410M-72

SW420M-72

Maximum Power (Pmax)

395W

400W

405W

410W

420W

Maximum Power Voltage (Vmp)

41.50V

41.80V

42.10V

42.30V

42.50V

Maximum Power Current (Imp)

9.52A

9.57A

9.62A

9.70A

9.88A

Open-circuit Voltage (Voc)

49.40V

49.60V

49.80V

50.00V

50.20V

Short-circuit Current (Isc)

10.12A

10.16A

10.21A

10.25A

10.45A

Module Efficiency (%)

19.62%

19.87%

20.11%

20.36%

20.85%

Power Tolerance

0~+5W

Temperature Coeffcient of Isc

+0.05%/℃

Temperature Coeffcient of Voc

-0.29%/℃

Temperature Coeffcient of Pmax

-0.37%/℃
