product origin:
Anhuibrand:
pvcellschainitem no.:
SW-M144shipping port:
Shanghai/Ningbocolor:
Black and Whitelead time:
15-20 Working daysSolar Cell:
9BB 166*83mmNumber Of Cells:
144 CellPower Range:
440W-480WCertificate:
CE/TUV/ISOLead Time:
15 Working daysPayment:
LC, TT, Western Union, Credit Card, etc.Warranty:
25 YearsProducts Description

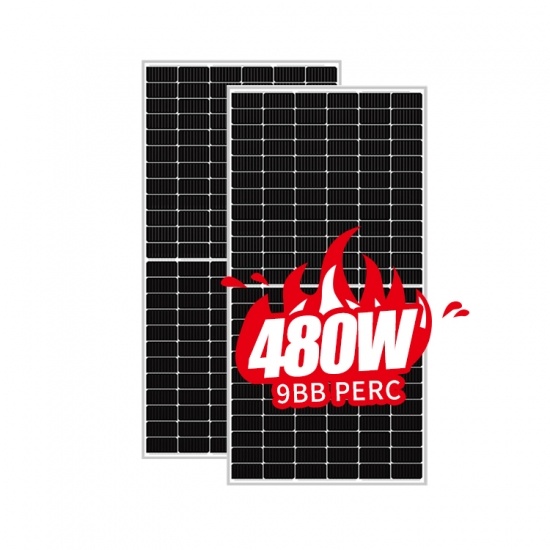

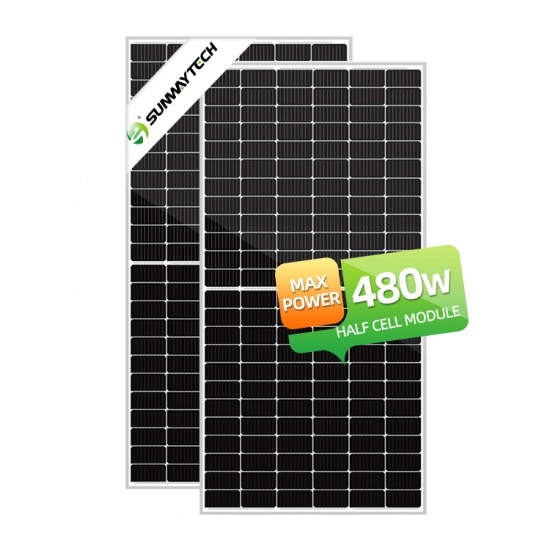

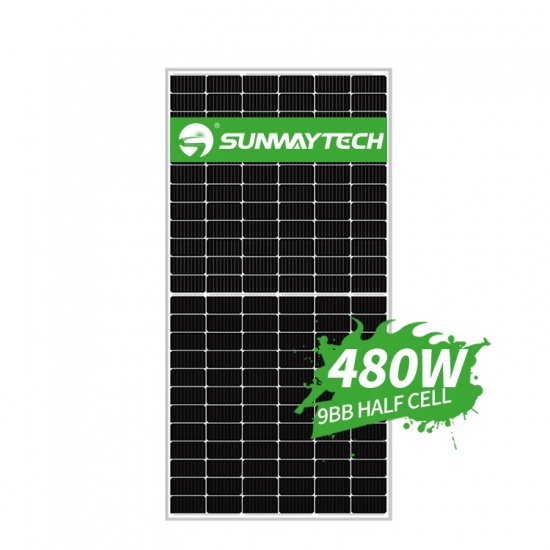

Half Cell 144 Cells 450w Photovoltaic Solar Panels
|
Electrical Characteristics(STC)
|
|||||||
|
Module
|
SW440W-144 ~ SW480M-144
|
||||||
|
Module Type
|
SW440M
|
SW445M
|
SW450M
|
SW455M
|
SW460M
|
SW470M
|
SW480M
|
|
Maximum Power (Pmax)
|
440W
|
445W
|
450W
|
455W
|
460W
|
470W
|
480W
|
|
Maximum Power Voltage (Vmp)
|
40.50V
|
40.80V
|
41.00V
|
41.20V
|
41.40V
|
41.60V
|
41.80V
|
|
Maximum Power Current (Imp)
|
10.86A
|
10.92A
|
10.98A
|
11.04A
|
11.10A
|
11.16A
|
11.22A
|
|
Open-circuit Voltage (Voc)
|
49.00V
|
49.20V
|
49.50V
|
49.80V
|
50.00V
|
50.30V
|
50.50V
|
|
Short-circuit Current (Isc)
|
11.30A
|
11.36A
|
11.42A
|
11.48A
|
11.54A
|
11.60A
|
11.66A
|
|
Module Efficiency (%)
|
19.62%
|
20.14%
|
20.37%
|
20.60%
|
20.82%
|
21.04%
|
21.26%
|
|
Power Tolerance
|
0~+5W
|
||||||
|
Temperature Coeffcient of Isc
|
+0.05%/℃
|
||||||
|
Temperature Coeffcient of Voc
|
-0.29%/℃
|
||||||
|
Temperature Coeffcient of Pmax
|
-0.37%/℃
|
||||||
The Newest Products 9BB 144cells panels solar Half Cell High Efficiency High Power Output Mono Solar Panel with 158.75mm*79.375mm Large Size Solar Cell
PV 480 Watt Solar Panels is made up of 144 monocrystalline half-cells on a white backsheet with a silver anodized aluminum alloy frame. Certified for the most challenging environmental conditions, This high-power monocrystalline solar panel operates at 21.26% efficiency to maximize the light absorption area.
Half Solar Monocrystalline Pv Panel for Farm the most challenging environmental conditions, This 470w Photovoltaic high-power monocrystalline solar panel operates at 21.26% efficiency to maximize the light absorption area.
pvcellschain solar panel 144Cells 9BB Mono 48v Solar Panel 440W 480 Watt for Solar Home Power System, This high-power monocrystalline solar panel operates at 21.26% efficiency to maximize the light absorption area.
