product origin:
Anhuibrand:
pvcellschainitem no.:
LFPWall-10kshipping port:
Shanghai Port or Any other Port in Chinapayment:
EXW, FOB, CIF, CFR, DDU, DAT, DAP, etc.,Voltage:
48v,51.2vcapacity:
10kwhBattery type:
Lithium Iron Phosphate Lifepo4 Battery
Working Principle
Residential Solar & Storage Solution
Product Paramenters
|
Mode Capacity
|
LFPWall 2500
|
LFPWall 5000
|
LFPWall 10K
|
|
Energy Capacity
|
2.56kWh
|
5.12kWh
|
10.24kWh
|
|
Nominal Voltage(V)
|
51.2V
|
||
|
Operation Voltage(V)
|
43.2V-58.4V
|
||
|
Ah Capacity
|
50Ah
|
100Ah
|
200Ah
|
|
Suggested SOC
|
10% ~ 100%
|
||
|
Usable Energy
|
2.3kWh
|
4.6kWh
|
9.21kWh
|
|
Nominal Voltage
|
51.2V, 48V optional
|
||
|
Operation Voltage
|
44.8V ~ 57.6V
|
||
|
Maximum Charge/Discharge Current
|
35A
|
70A
|
100A
|
|
BMS
|
Yes, intelligent monitoring and protection BMS per install
|
||
|
Scalable (Parallel Function)
|
Yes
|
||
|
Cycle Life
|
≥ 6000
|
||
|
Warranty BTT
|
Standard 5 year, 10 years optional 10MWh per kWh BTT
(battery total throughput)
|
||
|
Operation Temperature
|
Charge 0℃ ~ 45℃ ， Discharge -20℃ ~ 45℃
|
||
|
Storage Temperature
|
-20℃ ~ 45℃
|
||
|
Net Weight
|
30kg
|
52kg
|
96kg
|
|
Dimensions
|
537*365*196mm
|
542*468*197mm
|
694*581*219mm
|
|
Certifications
|
MSDS, UN38.3, CE, RoHS
|
||
|
IP Grade
|
IP65
|
||
|
Communications
|
RS485, CAN, RS232,
BMS has been compiatble with most of hybrid inverter brands in market
|
||
|
More options
|
Nominal 48V or 51.2V options
Fire suppression per install
Heating system per install
OEM & ODM support
|
||
|
Note
|
LFPWall 2500, 2.6kWh (51.2V) 2.4kWh (48V)
LFPWall 5000, 5.12kWh (51.2V) 4.8kWh (48V)
LFPWall 10K, 10.24kWh (51.2V) 9.6kWh (48V)
|
||

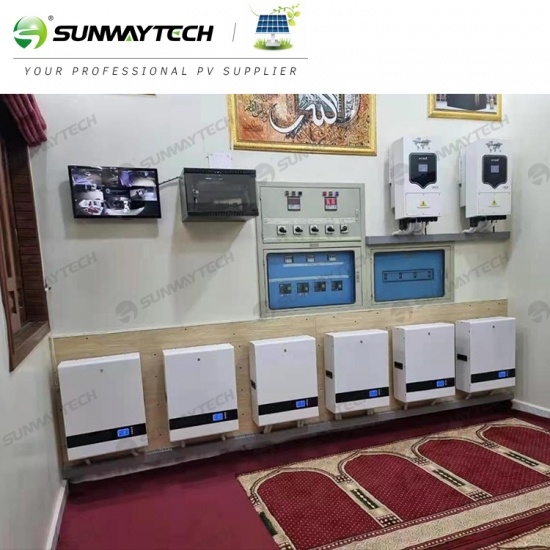

Project Case
High quality Home Storage 48V 50AH 2.5KWH Solar Charged Lithium Ion Battery Pack from China, China's leading Powerbox B2.5 solar Lithium Ion Battery
Features of pvcellschain Solar Home Battery Storage Solution 1. Adopting the latest Latest LifePo4 prismatic cell technology 2. Warranted throughout of 10MWh per 1kWh of stored capacity 3. 1C Discharge rate and 0.5C Charge rate 4. 158Wh per Kg+/-5% for cells 5. 2.6kWh 5kWh 10kWh optional 6. 5000 cycles @25℃ 0.7C conditions 7. Plug and Play functionality 8. Multiple BMS functionality allowing greater control and monitor 9. Scalable Battery Packs 10.Wall mounted and Ground type selectable 11.Multiple Energy Capacity options 12.BMS Compatible with Growatt, Goodwe, Deye, SMA, etc., 13.Wall mounted lithium battery is mainly for home energy stoarge solutions.
