brand:
pvcellschainSealed Type:
LiFePO4Voltage:
48vcapacity:
200AmpCycle Life:
6000Certificate:
ce/tuvLead Time:
15dayWarranty:
25yearBattery Size:
928*555*210mm

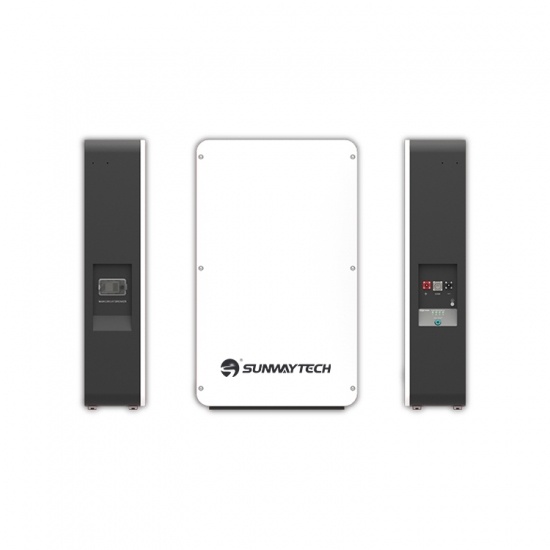

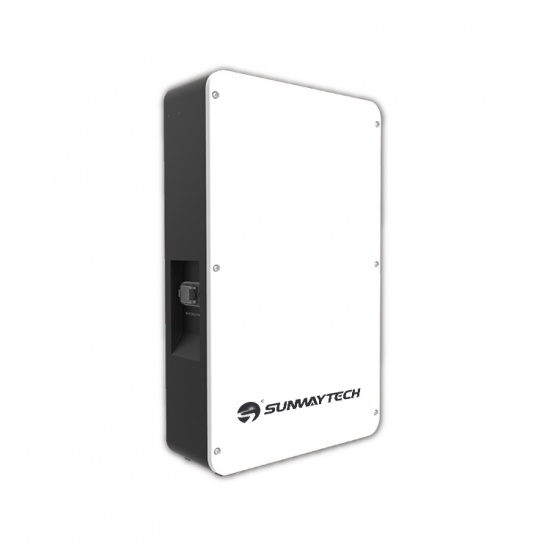

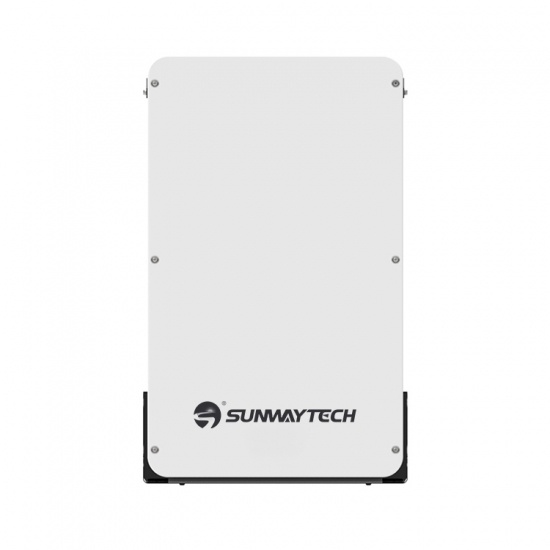

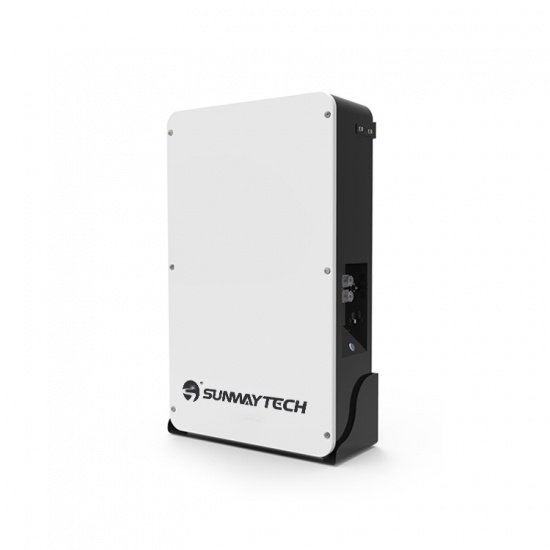

Home Powerbox 48V Solar Lithium ion Battery Pack
Products Description
|
Model
|
PowerBox
|
|||
|
Battery Type
|
LiFePO4
|
|||
|

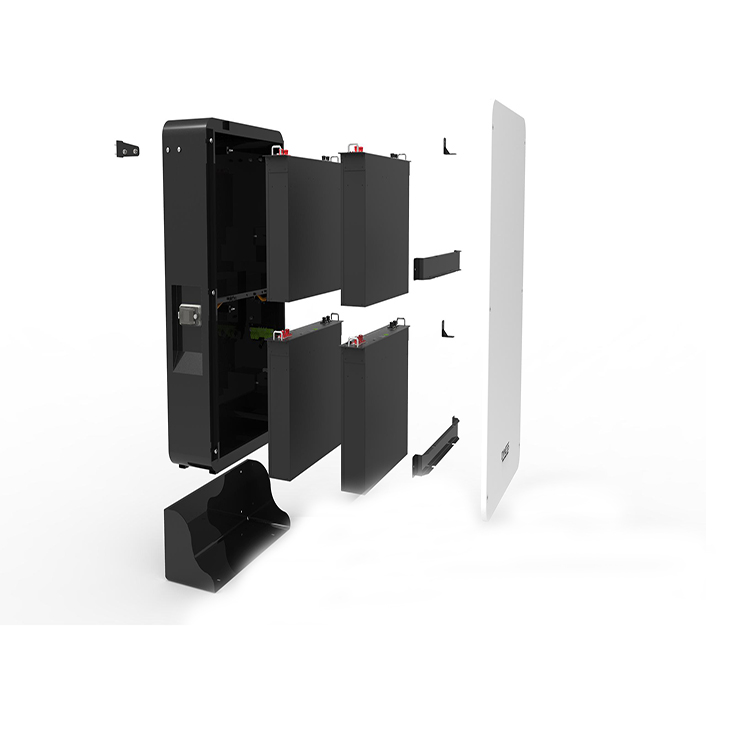

Battery Module
|
1 Moudle
|
2 Moudles
|
3 Moudles
|
4 Moudles
|
|
Battery Capacity [Ah]
|
50
|
100
|
150
|
200
|
|
Nominal Battery Energy [kWh]
|
2.4
|
4.8
|
7.2
|
9.6
|
|
Max Output Power [kWh]
|
2.4
|
4.8
|
4.8
|
4.8
|
|
Peak output Current [Amp]
|
100, 1s
|
200, 1s
|
200, 3s
|
200, 3s
|
|
Net Weight [Kg]
|
47
|
69
|
91
|
113
|
|

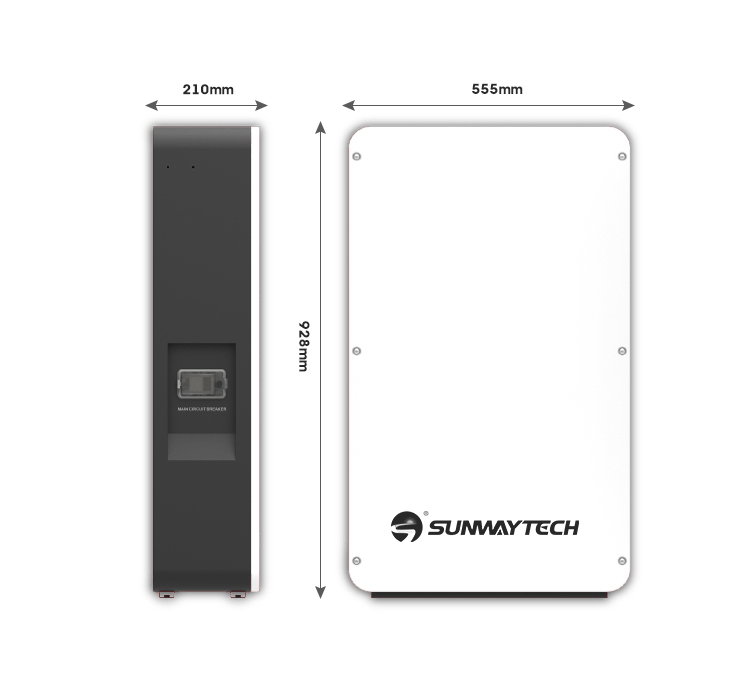

Dimension [H*W*D, mm]
|
928*555*210
|
|||
|
Working Voltage [V]
|
40.5~54
|
|||
|
Operating Temp. Range [℃]
|
-20~50℃
|
|||
|
Calendar Life
|
6000 Cycles
|
|||
|
Nominal Voltage
|
48 V
|
|||
|
Protection Level
|
IP 65
|
|||
|

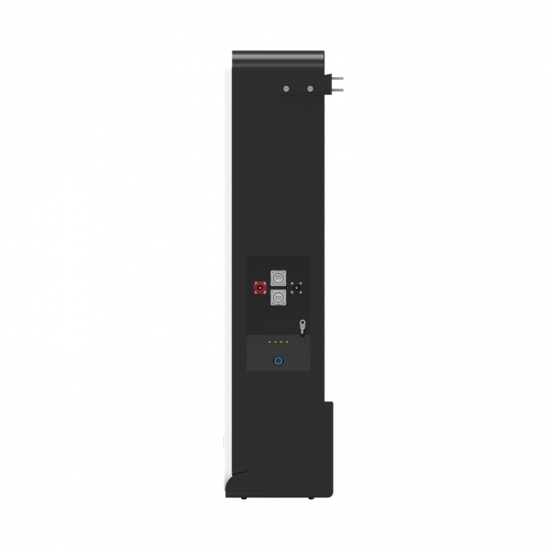

Communication
|
CAN / RS485 / DRY CONTACT
|
|||
|
Certification & Safetly Standard
|
TUV/CE/EN62619/IEC62040/UN38.3/CEC Accredited
|
|||
|
Scalability [kWh]
|
Up to no limit
|
|||
|
Warranty
|
10 Years
|
|||
|
Warranty Document Supplied
|
Yes
|
|||
|
Color
|
White
|
|||
|
Alarms
|
Overcharge Overdischarge Overcurrent Vovertemperature Short Circuit
|
|||
|
Pros
|

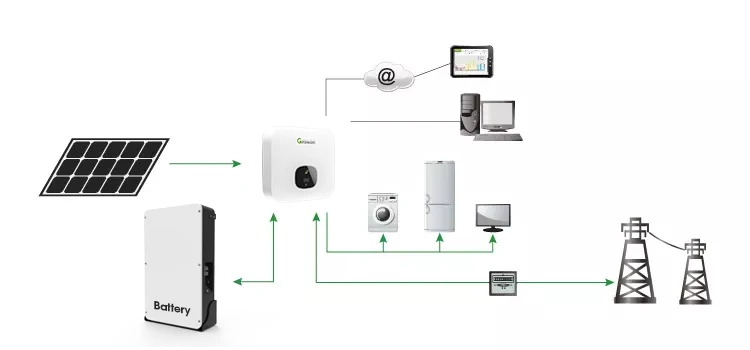

Can be used in both off-grid and hybrid setups, campact design, modular expansion
|
|||
|
Monitoring & Protection
|
Each mudule has BMS, breaker embedde in system
|
|||

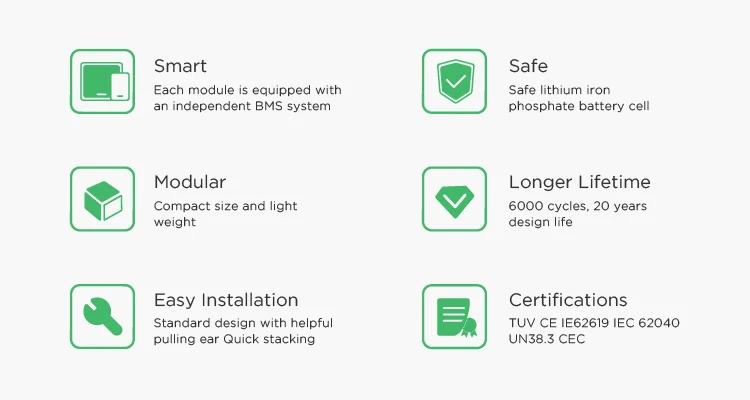

Features of pvcellschain Solar Home Battery Storage Solution 1. Adopting the latest Latest LifePo4 prismatic cell technology 2. Warranted throughout of 10MWh per 1kWh of stored capacity 3. 1C Discharge rate and 0.5C Charge rate 4. 158Wh per Kg+/-5% for cells 5. 2.6kWh 5kWh 10kWh optional 6. 5000 cycles @25℃ 0.7C conditions 7. Plug and Play functionality 8. Multiple BMS functionality allowing greater control and monitor 9. Scalable Battery Packs 10.Wall mounted and Ground type selectable 11.Multiple Energy Capacity options 12.BMS Compatible with Growatt, Goodwe, Deye, SMA, etc., 13.Wall mounted lithium battery is mainly for home energy stoarge solutions.
Features of pvcellschain Solar Home Battery Storage Solution 1. Adopting the latest Latest LifePo4 prismatic cell technology 2. Warranted throughout of 10MWh per 1kWh of stored capacity 3. 1C Discharge rate and 0.5C Charge rate 4. 158Wh per Kg+/-5% for cells 5. 2.6kWh 5kWh 10kWh optional 6. 5000 cycles @25℃ 0.7C conditions 7. Plug and Play functionality 8. Multiple BMS functionality allowing greater control and monitor 9. Scalable Battery Packs 10.Wall mounted and Ground type selectable 11.Multiple Energy Capacity options 12.BMS Compatible with Growatt, Goodwe, Deye, SMA, etc., 13.Wall mounted lithium battery is mainly for home energy stoarge solutions.
