product origin:
Anhuibrand:
pvcellschainitem no.:
SW550M-144shipping port:
Shanghai Port or Any other Port in Chinapayment:
EXW, FOB, CIF, CFR, DDU, DAT, DAP, etc.,Number Of Cells:
144Certificate:
CE/TUV/INMETROWarranty:
30 years
Tecnologia de meio corte Sob a mesma condição de sombra, a perda de energia do painel solar de meia célula é menor que a do painel solar de célula completa. Tecnologia de barramento múltiplo A tecnologia MBB melhora a eficiência dos módulos, oferece uma melhor aparência estética. Tecnologia PERC A célula PERC possui um lado traseiro passivado e um processo de ranhura a laser, o que melhora significativamente a eficiência da célula.
Detalhes do Produto
|
Parâmetros Elétricos of Parâmetros elétricos do painel solar pvcellschain 530W-550W
|
|||||
|
Modelo
|
SW530M-144~550M-144
|
||||
|
Encapsulamento
|
Classe/Eva/Célula/Eva/Folha de Fundo
|
||||
|
Potência Máxima Pmax(W)
|
530
|
535
|
540
|
545
|
550
|
|
Tensão Máxima de Potência (Vmp/V)
|
41.70
|
41.80
|
41.90
|
42.00
|
42.10
|
|
Corrente de potência máxima (Imp/A)
|
12.71
|
12.80
|
12.89
|
12.98
|
13.07
|
|
Tensão de Circuito Aberto (Voc/V)
|
49.50
|
49.60
|
49.70
|
49.80
|
49.90
|
|
Corrente de curto-circuito (Isc/A)
|
13.44
|
13.53
|
13.62
|
13.71
|
13.80
|
|
Eficiência do Módulo (%)
|
20.50
|
20.70
|
20.90
|
21.10
|
21.30
|
|
Tolerância de potência (W)
|
0~+5W
|
||||
|
Coeficiente de Temperatura de Isc(αIsc)
|
+0.05%/℃
|
||||
|
Coeficiente de Temperatura de Voc(βVoc)
|
-0.29%/℃
|
||||
|
Coeficiente de temperatura de Pmax(γVoc)
|
-0.37%/℃
|
||||
|
STC
|
Irradiance 1000w/㎡, Cell Temperature 25℃， Spectrum AM1.5
|
||||
|
Modelo
|
SW550M-144
|
|

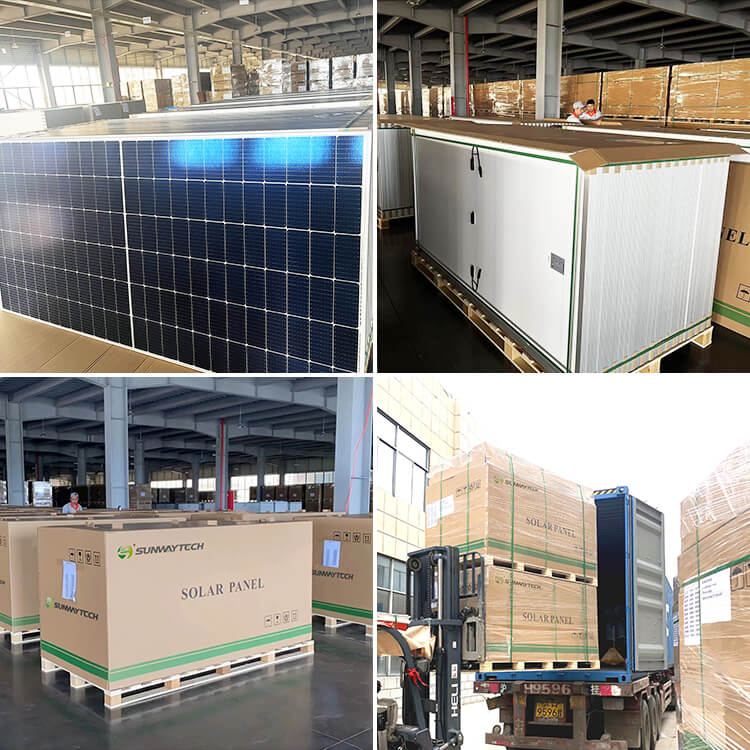

Módulos por palete
|
31 peças
|
|
Módulos por 40HQ
|
620 peças
|

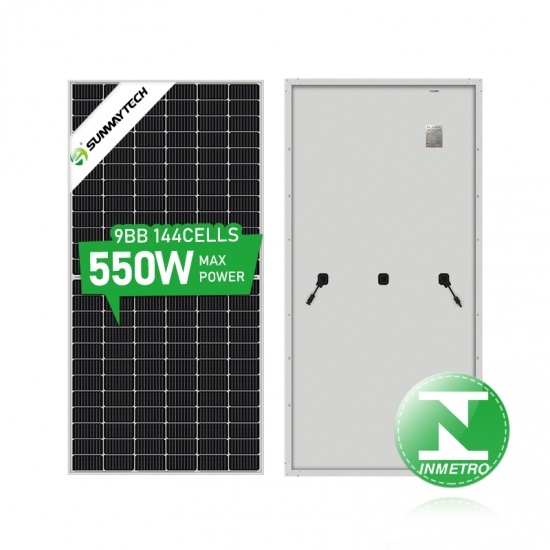

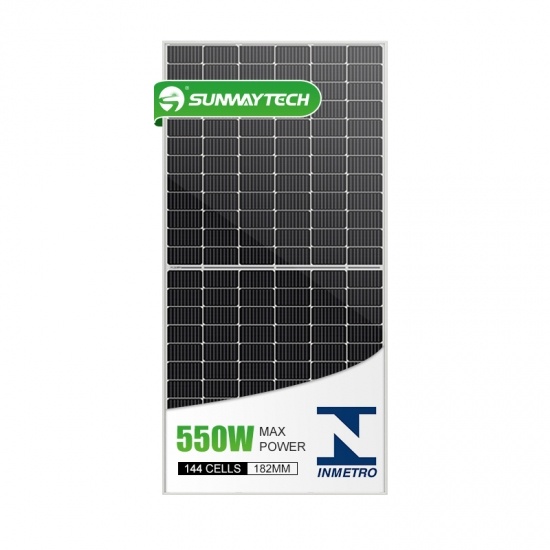

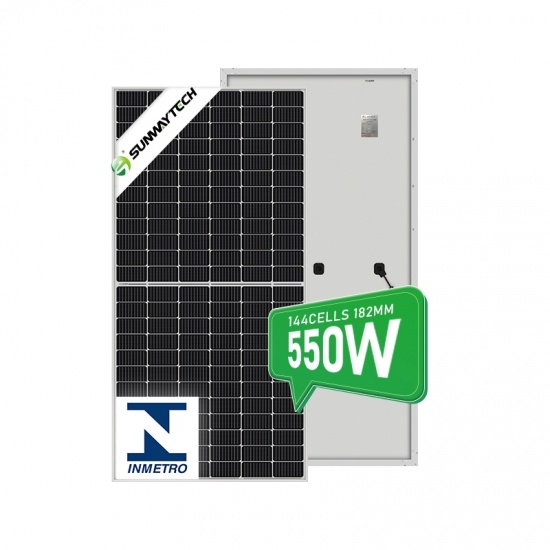

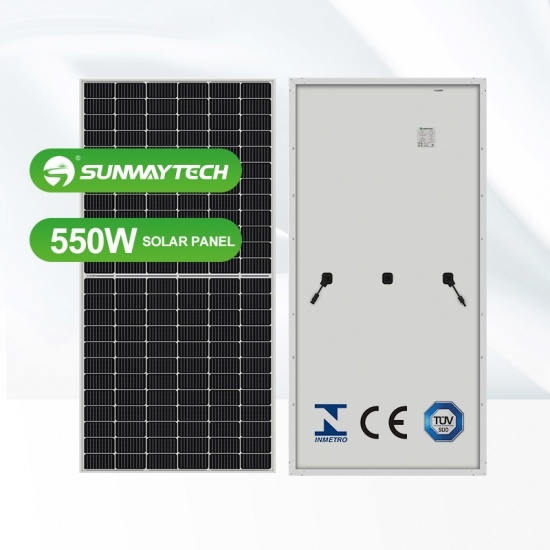

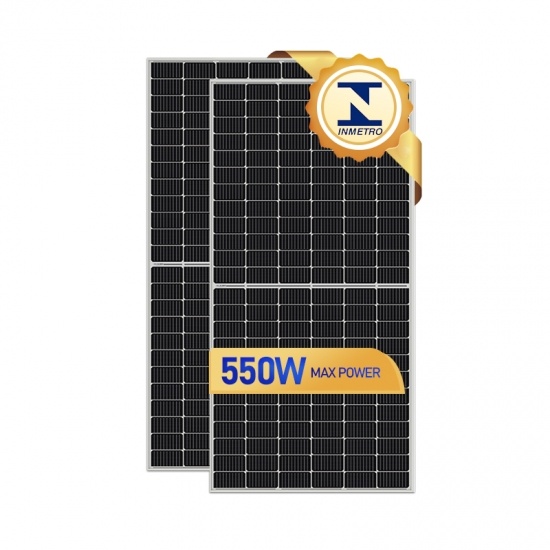

182mm Monocrystallin Half Cell Solar Panels
182mm Monocrystallin Half Cell Solar Panels
182mm Monocrystallin Half Cell Solar Panels
182mm Monocrystallin Half Cell Solar Panels
Front Terminal GEL Storage Battery 12V 150AH Lead Acid Battery Products Specification Model 6-GFM-150Ah 6-GFM(G)-150Ah Cells Per Unit 6 Voltage Per Unit 12 Capacity 150Ah@10hr-rate to 1.80V per cell @25°C Weight 43kg 47kg Internal Resistance Approx. 3.5 mΩ Approx. 4 mΩ Terminal F8 Max.Discharge Current 2250A (5 sec) Design Life 6~8 years 10~15 years Maximum Charging Current 37.5A Reference Capacity C10 150.0AH C3 115.0AH C1 82.8AH C10 150.0AH C3 108.7AH C1 82.4AH Float Charging Voltage 13.6 V~13.8 V @ 25°C Temperature Compensation: -20mV/°C/Cell Cycle Use Voltage 14.4 V~14.9 V @ 25°C Temperature Compensation: -30mV/°C/Cell Operating Temperature Range Discharge: -15°C~50°C Charge: 0°C~40°C Storage: -15°C~40°C Discharge: -20°C~60°C Charge: 0°C~50°C Storage: -20°C~60°C Normal Operating Temperature Range 25°C±5°C Self Discharge Less than 3% at 25°C per month Container Material A.B.S. UL94-HB, UL94-V0 Optional Detailed Images
