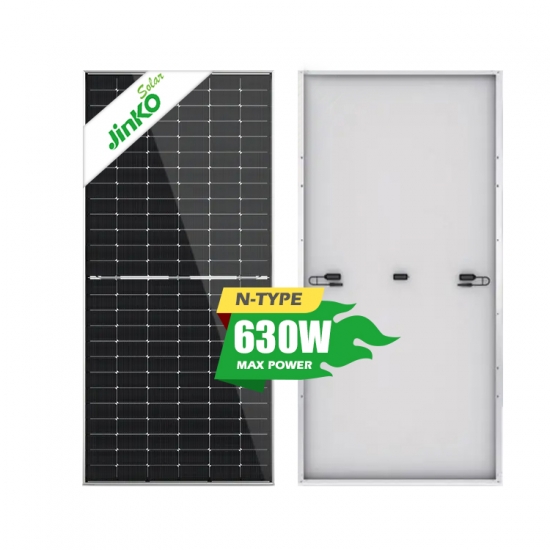

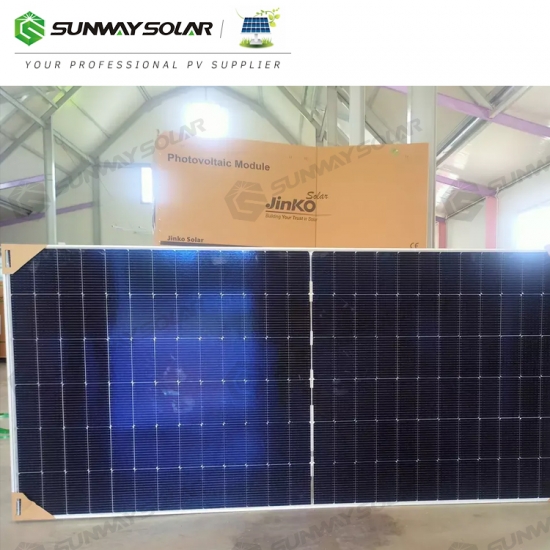

Jinko half mono Tiger Pro N-type Solar Panel 610-630W for Solar Power System

Products Description

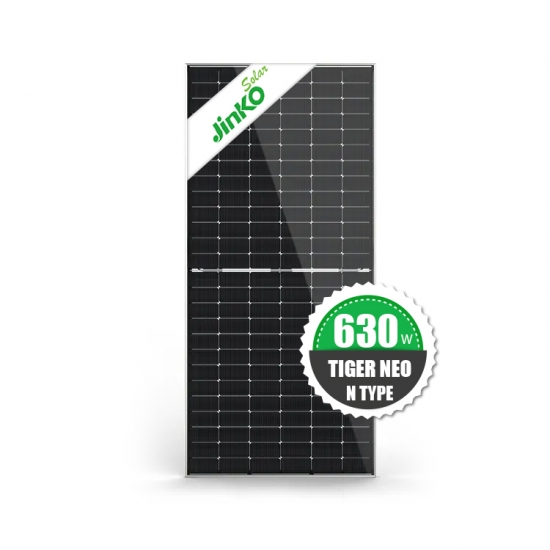

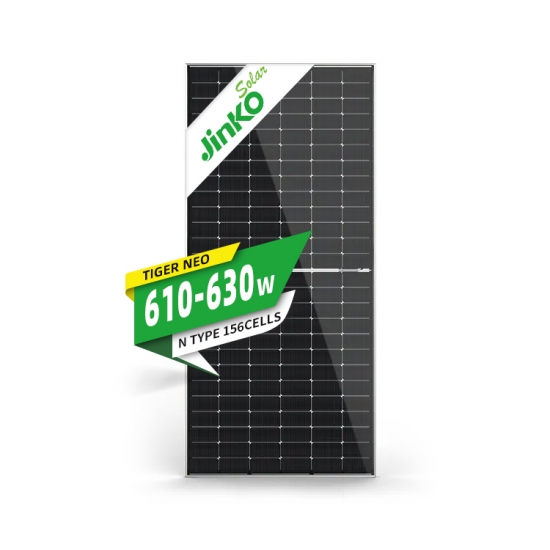

Jinko Solar Tiger Neo N-type 78HL4-( V) 610W 620W 630Watt MONO-FACIAL MODULE Half Cut Solar Panel

Cell Type	N type Mono-crystalline
No.of Half-cells	156 (2*78)
Dimensions	2456113435mm (97.0544.651.38 inch)
Weight	30.6kg (67.46 lbs)
Front Glass	3.2mm,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP68 Rated
Output Cables	TÜV 1x4.0mm2,(+) 400mm, (-) 200mm or Customized Length

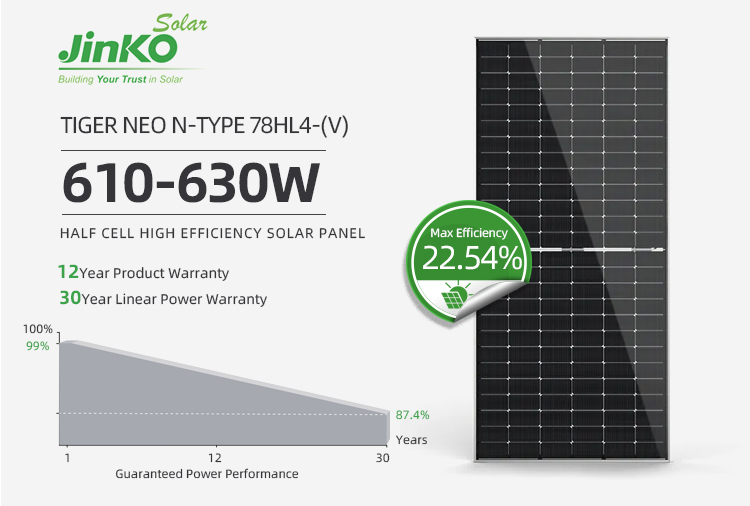

Advantages of Tiger Neo N-type 78HL4-(V)

*Better light trapping and current collection to improve module power output and reliability

*The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID

*Certified to wishstand:wind load (2400 Pascal) and snow load (5400 Pascal)

*Excellent Anti-PID performance guarantee via optimized mass-production process and materials control

Product Parameters

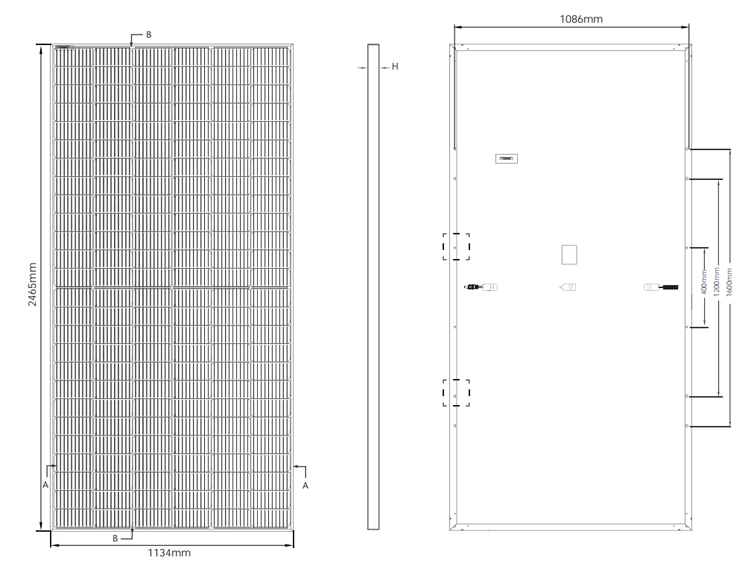

ENGINEER DRAWING

Jinko Solar Tiger Neo N-type 78HL4-( V) 610W 620W 630Watt MONO-FACIAL MODULE Half Cut Solar Panel

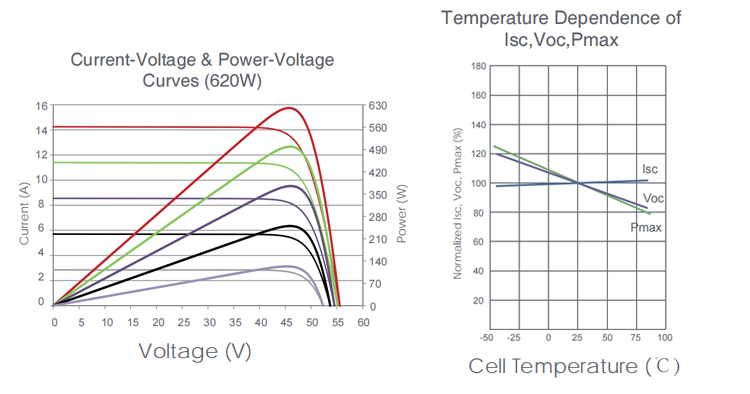

Electrical Performance&Temperature Dependence

Jinko Solar Tiger Neo N-type 78HL4-( V) 610W 620W 630Watt MONO-FACIAL MODULE Half Cut Solar Panel

Module Type	JKM610N-78HL4 JKM610N-78HL4-V		JKM615N-78HL4 JKM615N-78HL4-V		JKM620N-78HL4 JKM620N-78HL4-V		JKM625N-78HL4 JKM625N-78HL4-V		JKM630N-78HL4 JKM630N-78HL4-V
	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC NOCT
Maximum Power Pmax.(Wp)	610	459	615	462	620	466	625	470	630 474
Maximum Power Vmp(V)	45.59	42.28	45.69	42.39	45.79	42.50	45.92	42.61	46.02 42.72
Maximum Power Imp(A)	13.38	10.85	13.46	10.91	13.54	10.97	13.61	11.03	13.69 11.09
Open-circuit Voc(v)	55.25	52.48	55.40	52.62	55.55	52.77	55.70	52.91	55.85 53.05
Short-circuit Isc(A)	14.11	11.39	14.18	11.45	14.25	11.50	14.32	11.56	14.39 11.62
Module Efficiency	21.82%（STC）		22.00%（STC）		22.18%（STC）		22.36%（STC）		22.54%(STC）
Operating Temperature（℃）: -40℃~+85℃
Maximum System Voltage: 1000/1500VDC (IEC)
Maximum Series Fuse Rating: 25A
Power Tolerance: 0~+3%
Temperature Coefficients of Pmax: -0.30%/℃
Temperature Coefficients of Voc: -0.25/℃
Temperature Coefficients of Isc: 0.046%/℃
Nominal Operating Cell Temperature(NOCT): 45±2℃
