product origin:
Anhuibrand:
pvcellschainitem no.:
JKM565N-72HL4shipping port:
Shanghai/Ningbopayment:
EXW, FOB, CIF, CFR, DDU, DAT, DAP, etc.,Number Of Cells:
144CellCertificate:
CE/TUVPayment:
LC, TT, Western Union, Credit Card, etc.Warranty:
30 Years
Product Description

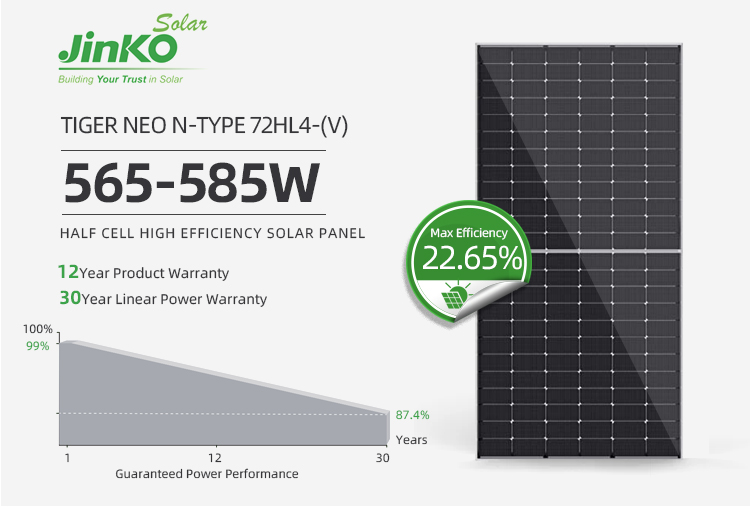

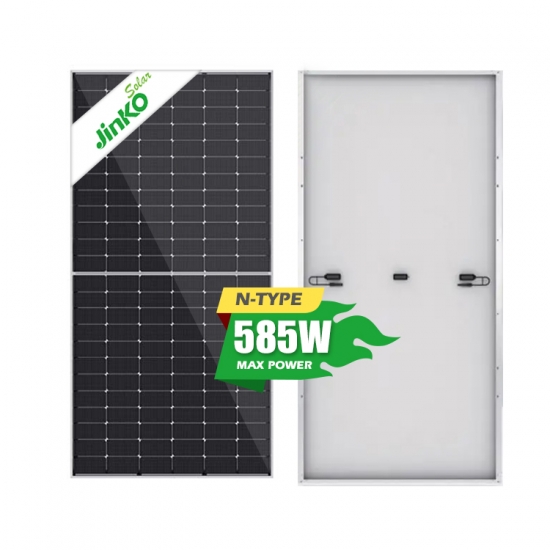

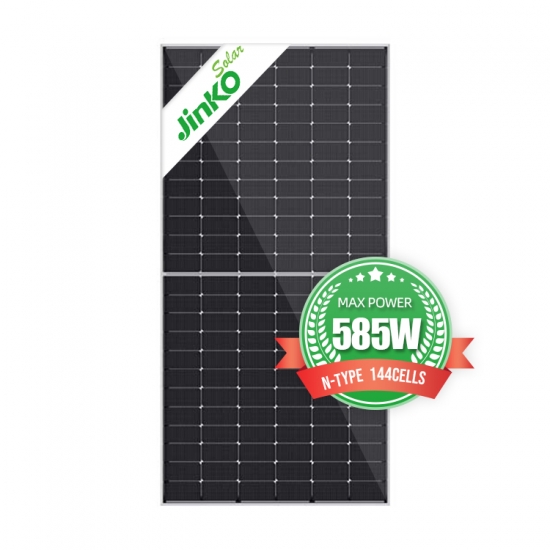

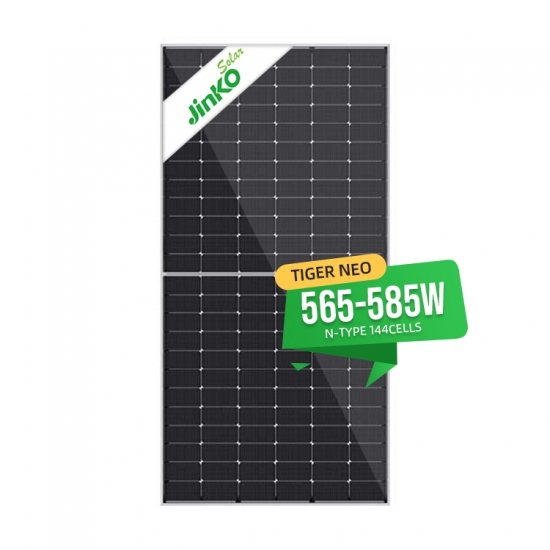

Jinko Solar Tiger Neo N-type 72HL4-( V) 565-585 Watt MONO-FACIAL MODULE N-Type Mono-crystalline Solar Panel
|
Cell Type
|
N type Mono-crystalline
|
|
No.of Half-cells
|
144 (6×24)
|
|
Dimensions
|
2278*1134*35mm (89.69*44.65*1.38 inch)
|
|
Weight
|
28kg (61.73 lbs)
|
|
Front Glass
|
3.2mm,Anti-Reflection Coating,
High Transmission, Low Iron, Tempered Glass
|
|
Frame
|
Anodized Aluminium Alloy
|
|
Junction Box
|
IP68 Rated
|
|
Output Cables
|
TÜV 1x4.0mm2,(+) 400mm, (-) 200mm or Customized Length
|
Product Parameters

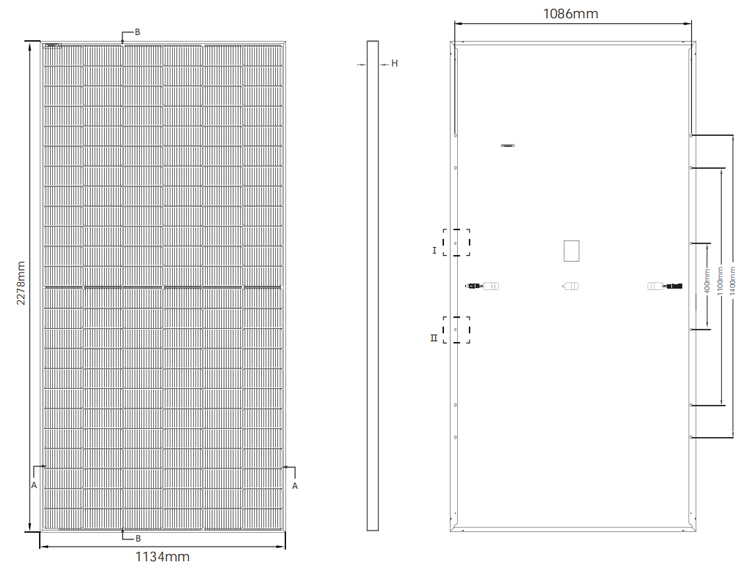

ENGINEER DRAWING

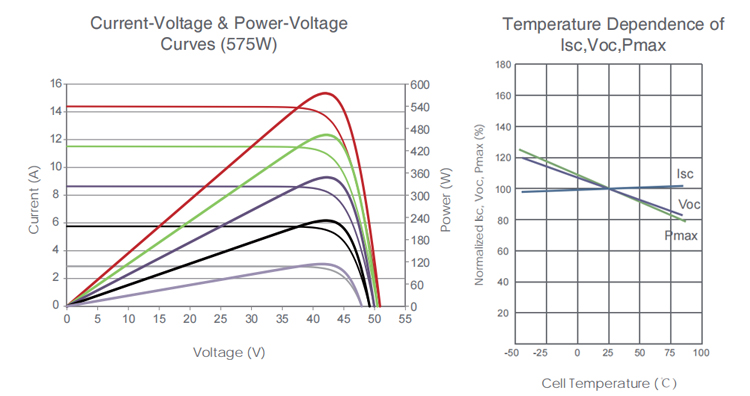

Electrical Performance&Temperature Dependence
|
Module Type
|
JKM565N-72HL4
JKM565N-72HL4-V
|
JKM570N-72HL4
JKM570N-72HL4-V |
JKM575N-72HL4
JKM575N-72HL4-V |
JKM580N-72HL4
JKM580N-72HL4-V |
JKM585N-72HL4
JKM585N-72HL4-V |
||||
|
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
STC NOCT
|
|
Maximum Power Pmax.(Wp)
|
565
|
425
|
570
|
429
|
575
|
432
|
580
|
436
|
585 440
|
|
Maximum Power Vmp(V)
|
41.92
|
39.38
|
42.07
|
39.51
|
42.22
|
39.60
|
42.37
|
39.69
|
42.52 39.81
|
|
Maximum Power Imp(A)
|
13.48
|
10.79
|
13.55
|
10.85
|
13.62
|
10.92
|
13.69
|
10.99
|
13.76 11.05
|
|
Open-circuit Voc(v)
|
50.60
|
48.06
|
50.74
|
48.20
|
50.88
|
48.33
|
51.02
|
48.46
|
51.16 48.60
|
|
Short-circuit Isc(A)
|
14.23
|
11.49
|
14.31
|
11.55
|
14.39
|
11.62
|
14.47
|
11.68
|
14.55 11.75
|
|
Module Efficiency
|
21.87（STC）
|
22.07%（STC）
|
22.26%（STC）
|
22.45（STC）
|
22.65 (STC）
|
||||
|
Operating Temperature（℃）: -40℃~+85℃
|
|||||||||
|
Maximum System Voltage: 1000/1500VDC (IEC)
|
|||||||||
|
Maximum Series Fuse Rating: 25A
|
|||||||||
|
Power Tolerance: 0~+3%
|
|||||||||
|
Temperature Coefficients of Pmax: -0.30%/℃
|
|||||||||
|
Temperature Coefficients of Voc: -0.25/℃
|
|||||||||
|
Temperature Coefficients of Isc: 0.046%/℃
|
|||||||||
|
Nominal Operating Cell Temperature(NOCT): 45±2℃ |
|||||||||

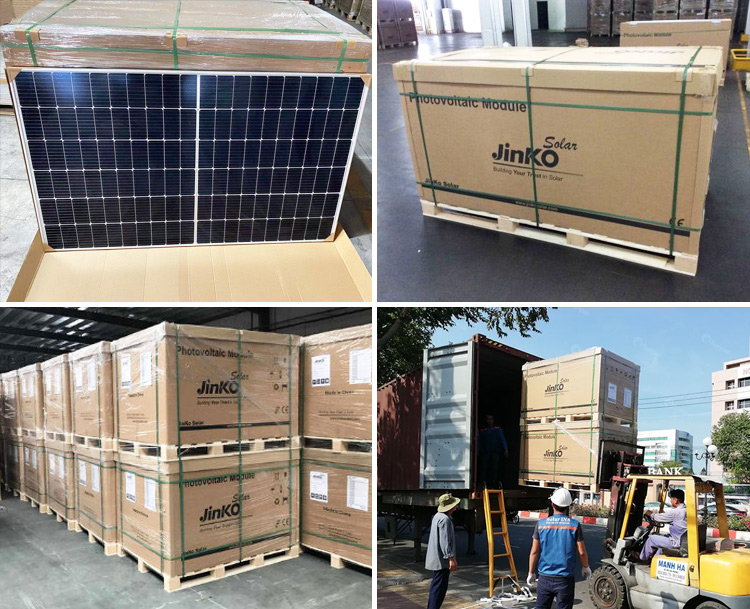

Packaging&Shipping
|
Model
|
Jinko JKM565N -72HL4-JKM585N -72HL4
|
|
Modules per box
|
31pcs/pallets, 62pcs/stack,
|
|
Modules per 40' HQ container
|
620PCS
|

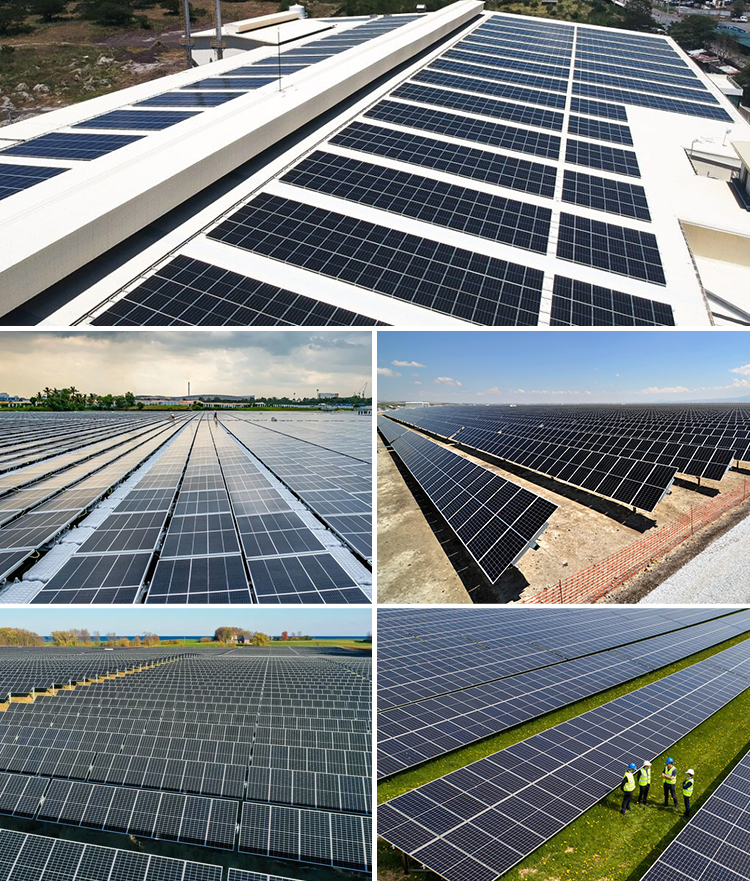

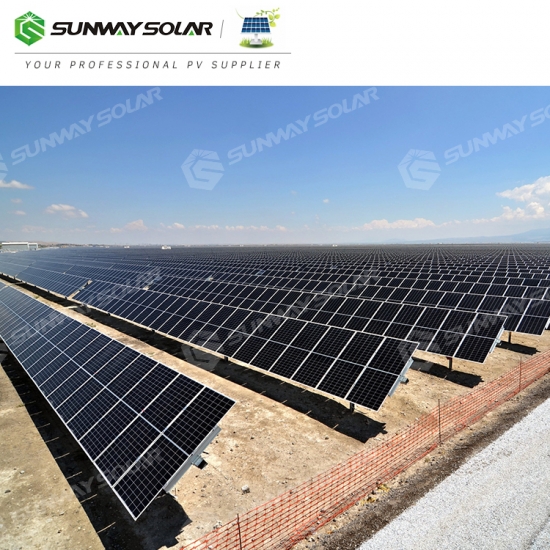

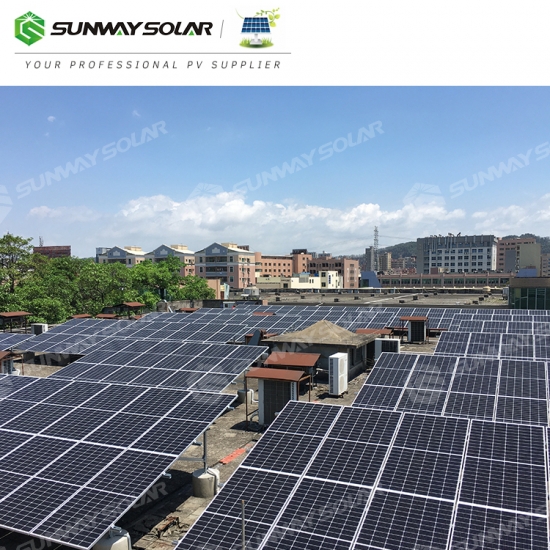

Application
Installation Instructions

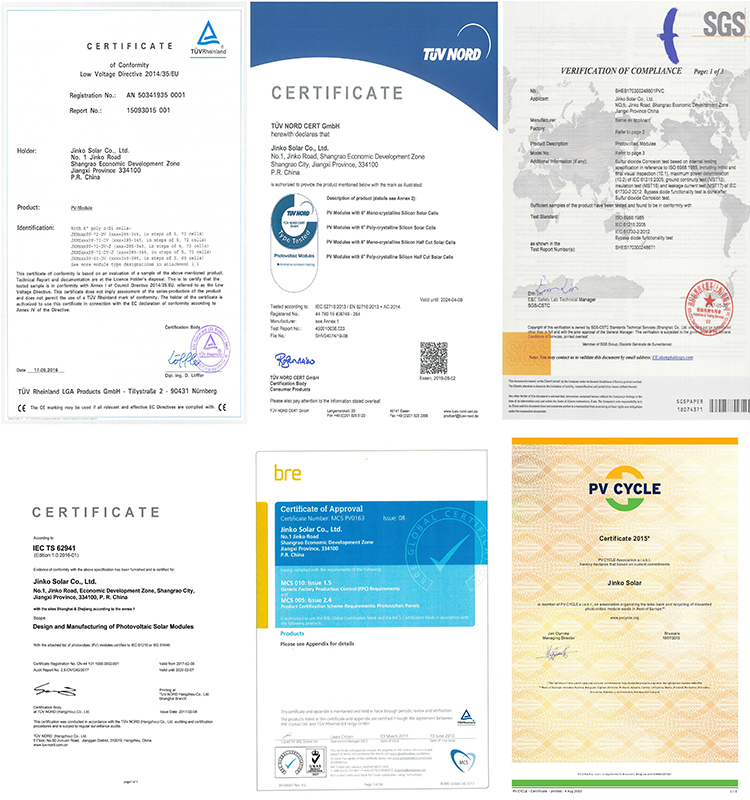

Certifications
