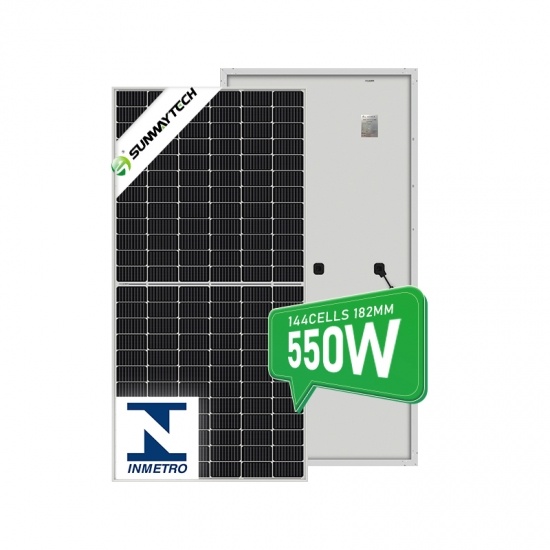

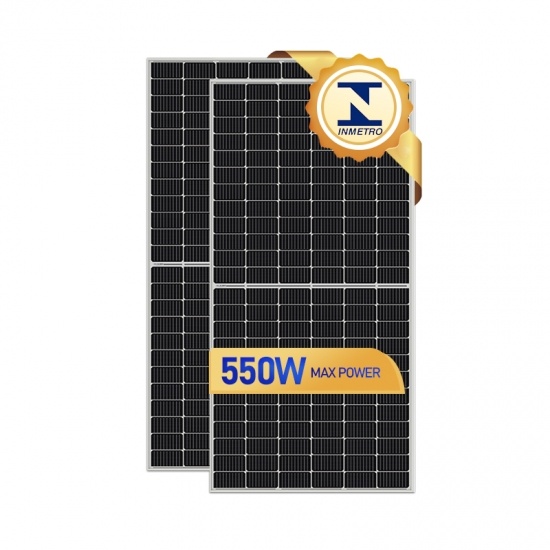

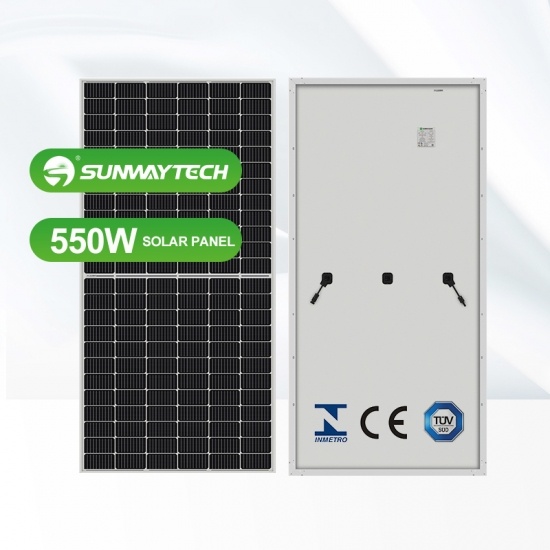

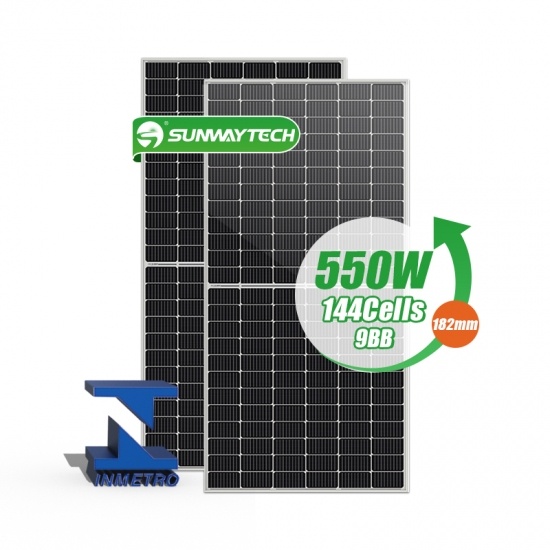

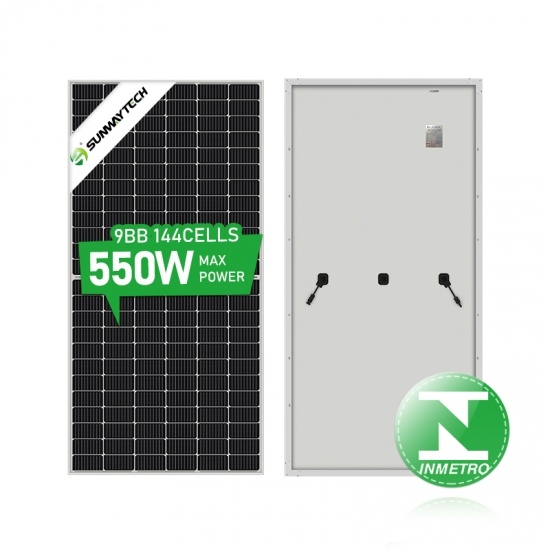

product origin:
Anhuibrand:
pvcellschainitem no.:
SW550M-144shipping port:
Shanghai Port or Any other Port in Chinapayment:
EXW, FOB, CIF, CFR, DDU, DAT, DAP, etc.,Number Of Cells:
144Certificate:
CE/TUV/INMETROWarranty:
30 years
Tecnologia de meio corte Sob a mesma condição de sombra, a perda de energia do painel solar de meia célula é menor que a do painel solar de célula completa. Tecnologia de barramento múltiplo A tecnologia MBB melhora a eficiência dos módulos, oferece uma melhor aparência estética. Tecnologia PERC A célula PERC possui um lado traseiro passivado e um processo de ranhura a laser, o que melhora significativamente a eficiência da célula.
Detalhes do Produto
|
Parâmetros Elétricos of Parâmetros elétricos do painel solar pvcellschain 530W-550W
|
|||||
|
Modelo
|
SW530M-144~550M-144
|
||||
|
Encapsulamento
|
Classe/Eva/Célula/Eva/Folha de Fundo
|
||||
|
Potência Máxima Pmax(W)
|
530
|
535
|
540
|
545
|
550
|
|
Tensão Máxima de Potência (Vmp/V)
|
41.70
|
41.80
|
41.90
|
42.00
|
42.10
|
|
Corrente de potência máxima (Imp/A)
|
12.71
|
12.80
|
12.89
|
12.98
|
13.07
|
|
Tensão de Circuito Aberto (Voc/V)
|
49.50
|
49.60
|
49.70
|
49.80
|
49.90
|
|
Corrente de curto-circuito (Isc/A)
|
13.44
|
13.53
|
13.62
|
13.71
|
13.80
|
|
Eficiência do Módulo (%)
|
20.50
|
20.70
|
20.90
|
21.10
|
21.30
|
|
Tolerância de potência (W)
|
0~+5W
|
||||
|
Coeficiente de Temperatura de Isc(αIsc)
|
+0.05%/℃
|
||||
|
Coeficiente de Temperatura de Voc(βVoc)
|
-0.29%/℃
|
||||
|
Coeficiente de temperatura de Pmax(γVoc)
|
-0.37%/℃
|
||||
|
STC
|
Irradiance 1000w/㎡, Cell Temperature 25℃， Spectrum AM1.5
|
||||
|
Modelo
|
SW550M-144
|
|

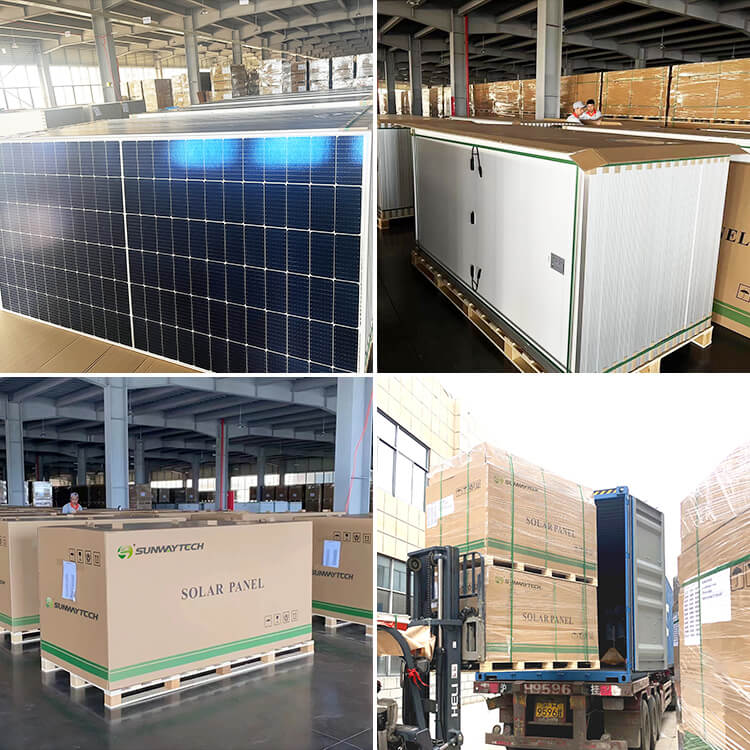

Módulos por palete
|
31 peças
|
|
Módulos por 40HQ
|
620 peças
|
182mm Monocrystallin Half Cell Solar Panels
