product origin:
Anhuibrand:
pvcellschainitem no.:
SW525（-550）M-144shipping port:
Shanghai/Ningbocolor:
Black and Whitelead time:
15-20 Working dayspayment:
T/T, L/C, Paypal, Western UnionSolar Cell:
mono 9BB 6*24cellNumber Of Cells:
144CELLPower Range:
525W-550WCertificate:
CE/TUV/ISOLead Time:
15 Working daysPayment:
LC, TT, Western Union, Credit Card, etc.Warranty:
25 Years

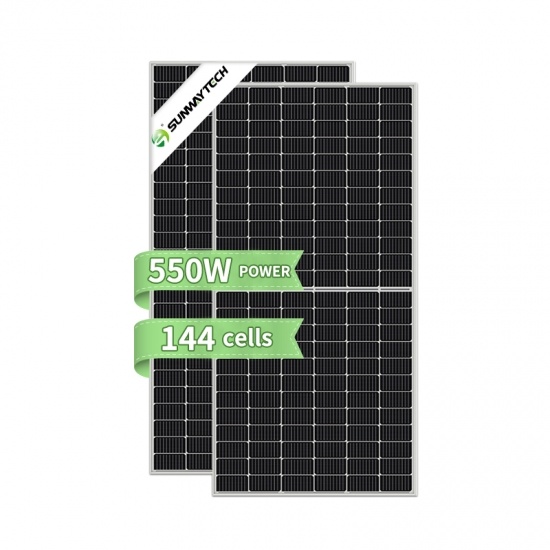

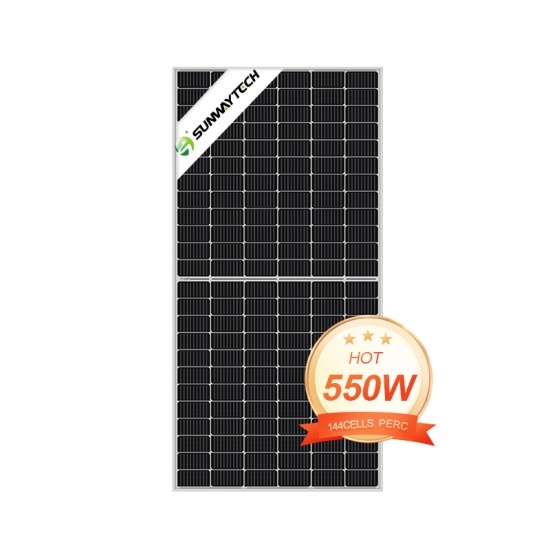

144 Cell Solar Photovoltaic 550 watt Placa Solar Panel
|
Electrical Characteristics(STC)
|
||||||
|
Module Type
|
SW525M-144
|
SW530M-144
|
SW535M-144
|
SW540M-144
|
SW545M-144
|
SW550M-144
|
|
Maximum Power (Pmax)
|
525W
|
530W
|
535W
|
540W
|
545W
|
550W
|
|
Maximum Power Voltage (Vmp)
|
40.60V
|
40.80V
|
41.00V
|
41.20V
|
41.40V
|
41.60V
|
|
Maximum Power Current (Imp)
|
12.94A
|
13.00A
|
13.05A
|
13.11A
|
13.17A
|
13.23A
|
|
Open-circuit Voltage (Voc)
|
48.80V
|
49.00V
|
49.20V
|
49.40A
|
49.60A
|
49.80A
|
|
Short-circuit Current (Isc)
|
13.71A
|
13.76A
|
13.81A
|
13.87A
|
13.93A
|
13.99A
|
|
Module Efficiency (%)
|
20.50%
|
20.70%
|
20.90%
|
21.10%
|
21.30%
|
21.50%
|
|
Power Tolerance
|
0~+5W
|
|||||
|
Temperature Coeffcient of Isc
|
+0.05%/℃
|
|||||
|
Temperature Coeffcient of Voc
|
-0.29%/℃
|
|||||
|
Temperature Coeffcient of Pmax
|
-0.37%/℃
|
|||||
pvcellschain 500W 550W 580W Solar Panel With new cell structure on the front without electrodes,High Efficiency 10BB Cell half-cut technology, 100% EL Double-inspection ensurec.

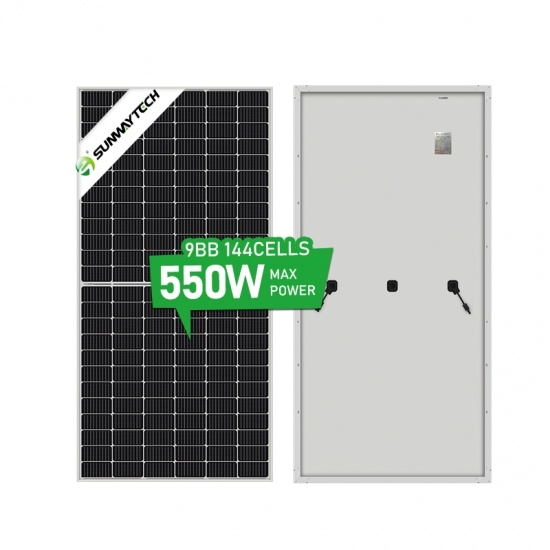

pvcellschain 9BB 525W 530W 545W 550W Solares Paneles Mono 144 Cell Half cell Solar Photovoltaic. Cell number 144 cell. DC/Charger Volt Compatible 12v, 24v, 48v Manufacturing
The Newest Products 9BB 144cells panels solar Half Cell High Efficiency High Power Output Mono Solar Panel with 158.75mm*79.375mm Large Size Solar Cell
Hot Sale & Clean Energy Hybrid Solar Power System for Residential or Commercial Use, it connects to the grid and with batteries bank for 380V 400V Voltage, easy installation. Specially Customized as client requested.
80W LED Solar Street Light Outdoor, IP65 Waterproof Wall/Pole Mount to Dawn Area Lighting Night/Motion Sensor Solar Powered Security Lights
Gorwatt's innovative 3-6KW hybrid solar inverter offers a wide power range, high efficiency and smart energy management for optimized solar power generation and usage.
Cylindrical battery cells feature rolled anode, cathode, separator in a cylindrical can. Requires additional fixings for support which adds weight. Good quality and performance. Portable and safe.
Hybrid solar system is a solar system, suitable for a place where is no grid network or grid power is not stable. This solar can be described as off-grid solar system with utility backup power, or grid-tied solar system with extra battery storage.
410W/500W Shingled Solar Panel Overlapping solar module has 25 years warranty time. Applied for hotel, office,and factory.
A variant of these types of batteries that are valve regulated and have gel electrolyte are called OPZV. These are a maintenance free variant of OPZV.
Front Terminal GEL Storage Battery 12V 150AH Lead Acid Battery Products Specification Model 6-GFM-150Ah 6-GFM(G)-150Ah Cells Per Unit 6 Voltage Per Unit 12 Capacity 150Ah@10hr-rate to 1.80V per cell @25°C Weight 43kg 47kg Internal Resistance Approx. 3.5 mΩ Approx. 4 mΩ Terminal F8 Max.Discharge Current 2250A (5 sec) Design Life 6~8 years 10~15 years Maximum Charging Current 37.5A Reference Capacity C10 150.0AH C3 115.0AH C1 82.8AH C10 150.0AH C3 108.7AH C1 82.4AH Float Charging Voltage 13.6 V~13.8 V @ 25°C Temperature Compensation: -20mV/°C/Cell Cycle Use Voltage 14.4 V~14.9 V @ 25°C Temperature Compensation: -30mV/°C/Cell Operating Temperature Range Discharge: -15°C~50°C Charge: 0°C~40°C Storage: -15°C~40°C Discharge: -20°C~60°C Charge: 0°C~50°C Storage: -20°C~60°C Normal Operating Temperature Range 25°C±5°C Self Discharge Less than 3% at 25°C per month Container Material A.B.S. UL94-HB, UL94-V0 Optional Detailed Images
