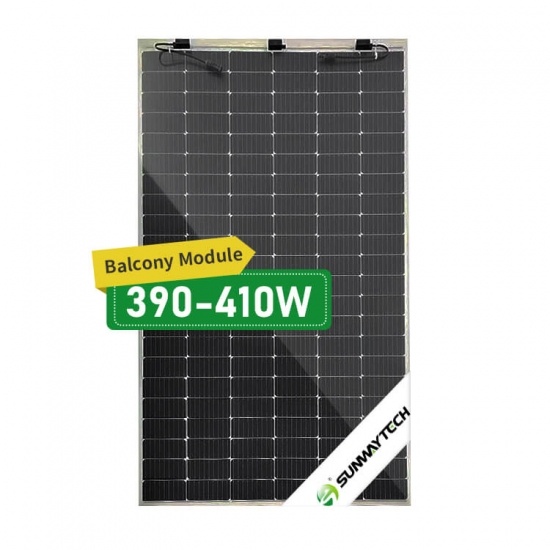

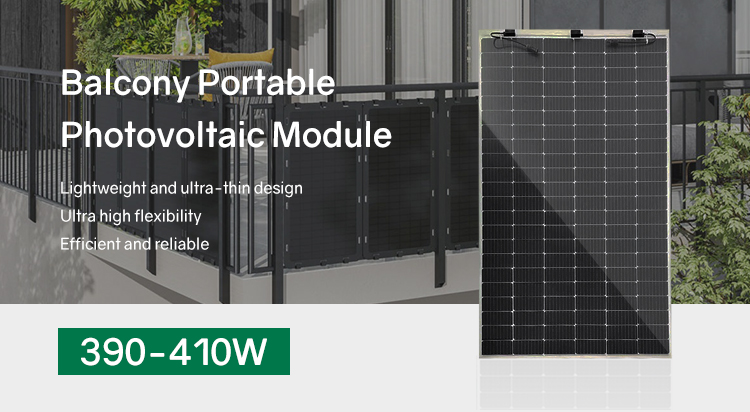

pvcellschain 390-410w Monocrystalline Solar Panels for Residential Balconies

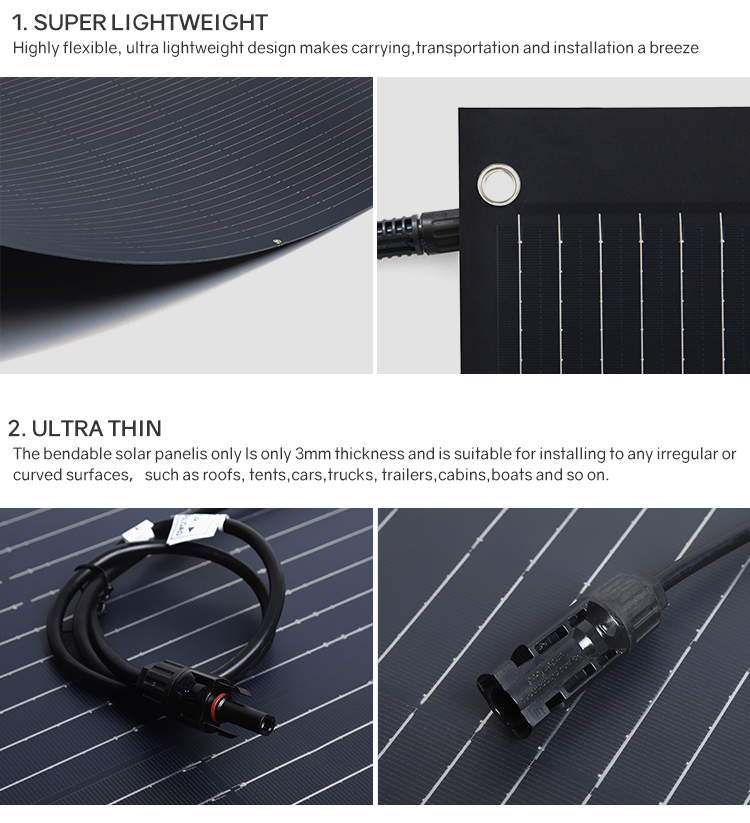

Light weight and ultra-thin design

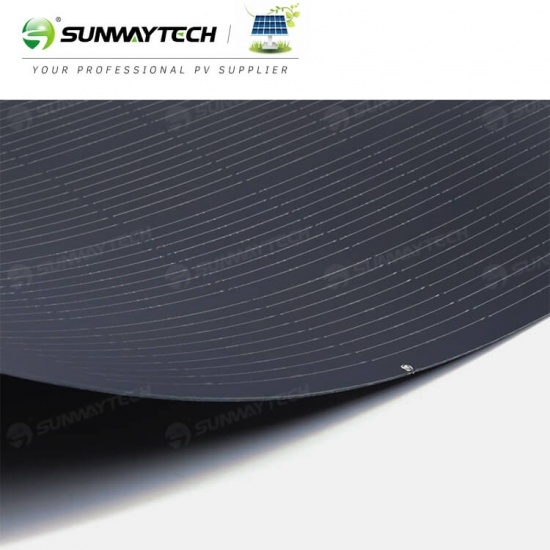

Ultra high flexibility
Efficient and reliable
  • brand:

    pvcellschain
  • item no.:

    SW410M
  • Solar Cell:

    20(166/2)*6
  • Power Range:

    390-410W
  • Certificate:

    CE/TUV/ISO
  • Payment:

    T/T, L/C, Alipay, Paypal, Western Union
  • Warranty:

    25 years
  • product details

Product Description





Product Parameters


Parameter Name
Unit
JWKA-390
JWKA-395
JWKA-400
JWKA-405
JWKA-410
Maximum power(Pm)
W
390W
395W
400W
405W
410W
Power Deviation
W
0~+5w
0~+5w
0~+5w
0~+5w
0~+5w
Optimal working voltage(Vm)
V
77.22
77.616
78.012
78.408
86.196
Optimal working current(lm)
A
5.155
5.23
5.255
5.305
4.892
Open-circuit voltage(Voc)
V
89.892
90.288
90.684
91.08
98.208
Short-circuit current(lsc)
A
5.52
5.545
5.545
5.57
5.179

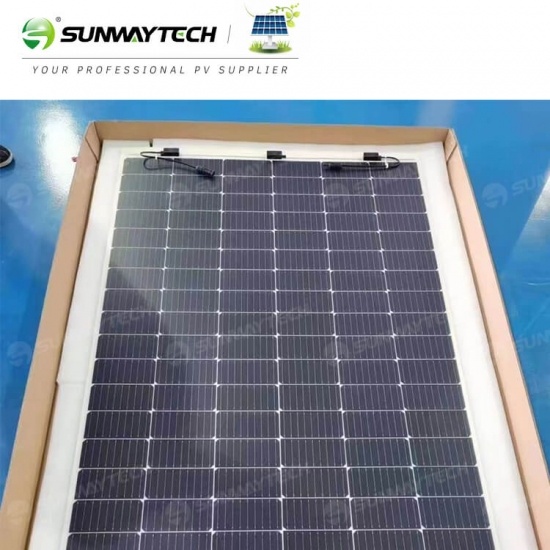

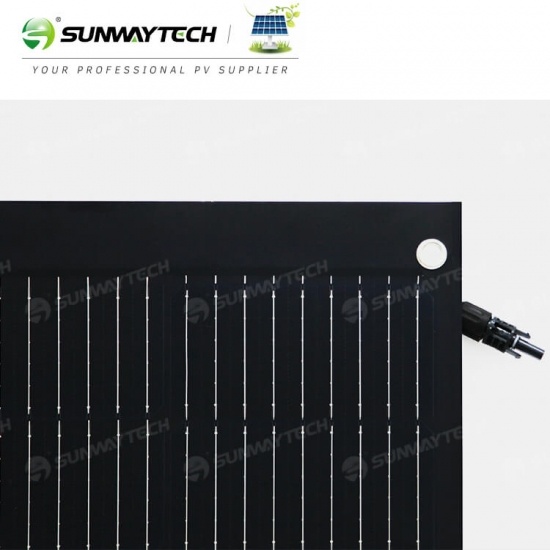

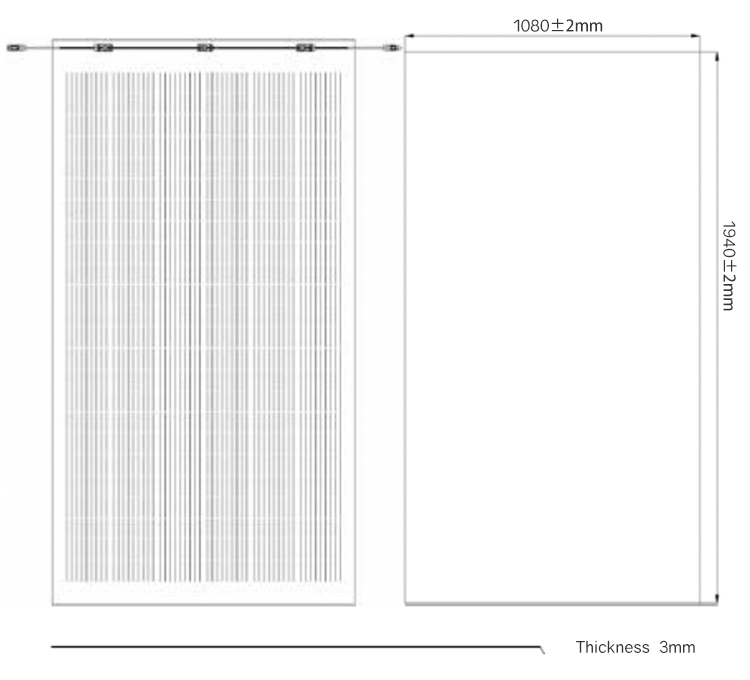

Product Details

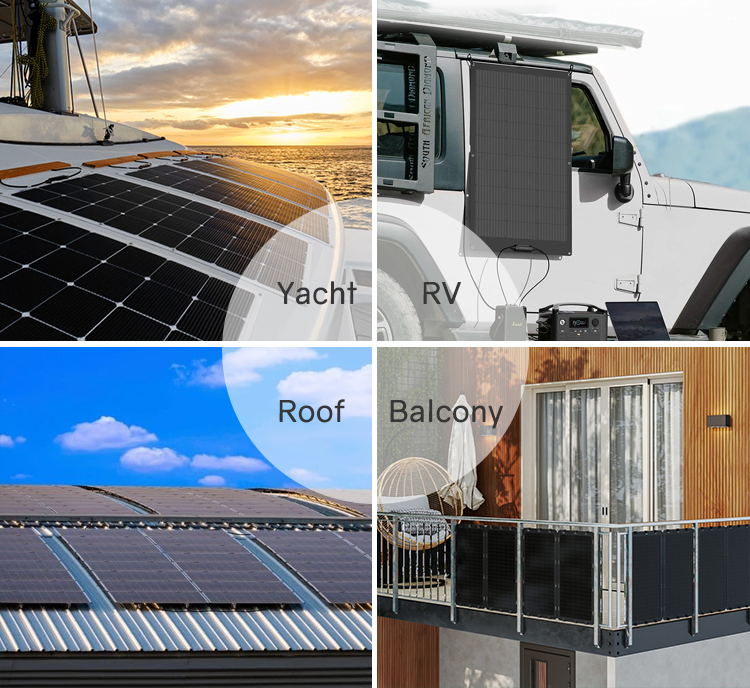

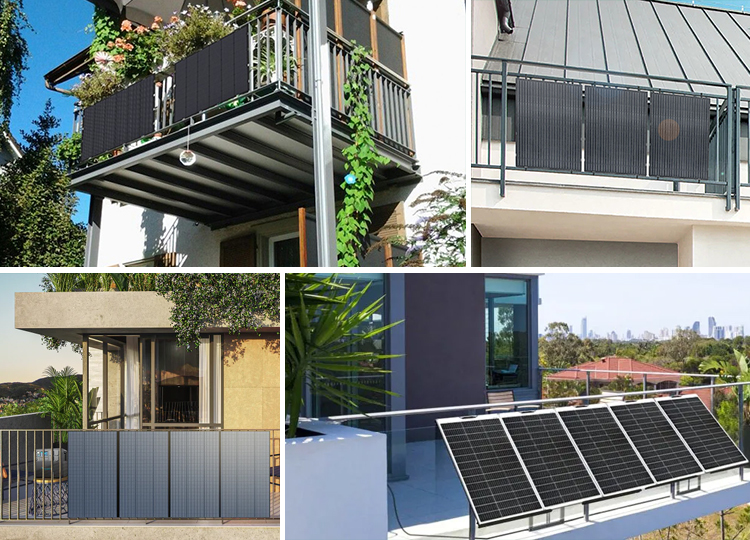

Project Case





Certifications
