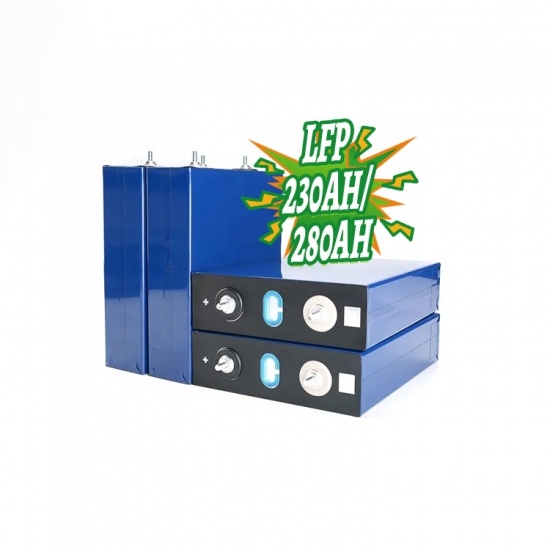

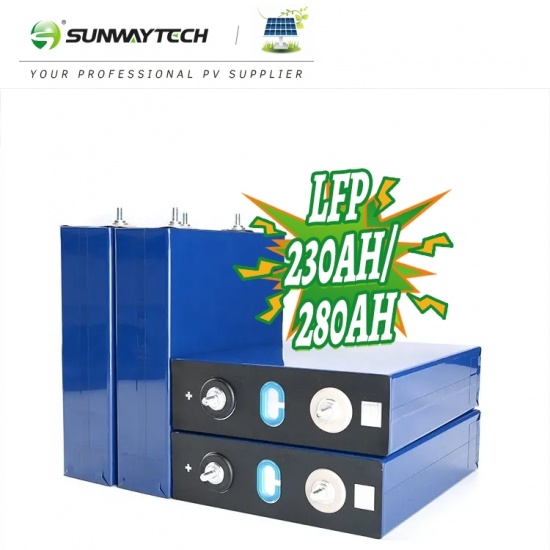

pvcellschain Lithium Batter Cell Solar Panel 3.2V 230ah 280ah Rechargeable Battery Cells

Original new brand prismatic lithium-ion battery cells with real capacity over 230Ah. Comes with EVE official test report verifying consistent voltage and low internal resistance between cells, essential for battery packs. Ensures no quality issues like voltage dropping or rising internal resistance thanks to robust inner cell components and connections.
  • brand:

    pvcellschain
  • item no.:

    LFP54173202
  • Voltage:

    2.0V-3.65V
  • capacity:

    230Ah/280Ah
  • Cycle Life:

    4000 Times
  • Warranty:

    3-12 Months
  • product details

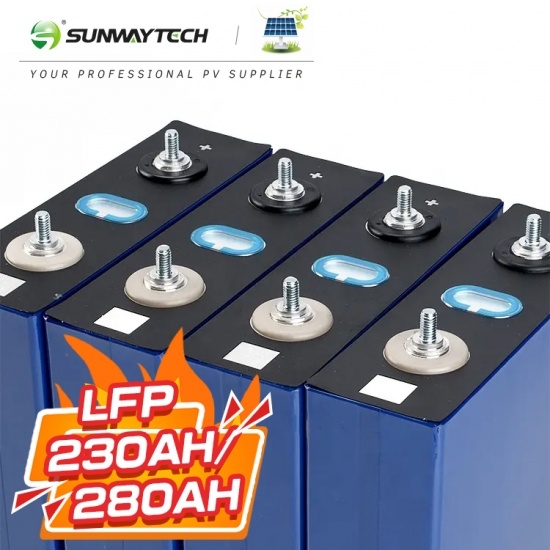

Prismatic Cells

Prismatic cells consist of large sheets of anodes, cathodes, and separators sandwiched, rolled up, and pressed to fit into a metallic or hard-plastic housing in cubic form. The electrodes can also be assembled by layer stacking. Lithium prismatic cells feature either single-row or two-row modules and the arresters are always on the same side regardless of the row.

Prismatic cells are either adhesive-bonded by welding, with busbars and support plates or traction / form-fit connected with screwing/] or latching as joining technology and hole-busbars as a bridge. Lastly, prismatic cells can be fixed by gluing. This requires a light and elastic joining medium to avoid air pockets.
Type
LFP54173202
LFP71173204
Standard Voltage
3.2V RT@0.5C Discharge
3.2V RT@05C Dischargc
Nominal Capacity
230Ah RT@0.5C Discharge
280Ah RT@0.5C Disharge
Voltage Range
2.0V-3.65V
2.0V-3.65V
Standard Charge
0.5C CC to 3.65V, 3.65V CV to 0.05C
Max Charge Current
230A
280A
Standard Discharge
0.5C CC to 2.5V
Max Discharge Current
230A
280A
TEM
Charge: 0°C - 55°C
Discharge : -20°C - 55°C
Weight
4150g
5350g
Dimension(mm)
53*173*206
71*173*206
Densitu
>=175Wh/kg >=380wh/L
>=165wh/kg >=350wh/L
Life Cycle
4000
4000
