brand:
pvcellschainitem no.:
SW-EOV48-SVoltage:
51.2Vcapacity:
5/10/15/20kwhCycle Life:
6000Certificate:
UN38.3,MSDS,EN55032,EN55024,EN61000-3-2,EN61000-3-3
|
|
SW-EOV48-5.0s-s1
|
SW-EOV48-10.0s-s1
|
SW-EOV48-15.0S-s1
|
SW-EOV48-20.0s-s1
|
|
BATTERY TECHNICAL SPECIFICATION
|
||||
|
Battery model
|
SW-EOV48-5.0A-E1
|
|||
|
Number of batteries
|
1
|
2
|
3
|
4
|
|
Battery Energy
|
5.12kWh
|
10.24kWh
|
15.36kWh
|
20.48kWh
|
|
Battery Capacity
|
100AH
|
200AH
|
300AH
|
400AH
|
|
Weight
|
80kg
|
130kg
|
190kg
|
250kg
|
|
Dimension L* D* H
|
1190×600×184
|
1800×600x184
|
1800×600×184
|
1800×600×184
|
|
Battery Type
|
LiFePO4
|
|||
|
Battery Rated Voltage
|
51.2V
|
|||
|
Battery Working Voltage Range
|
44.8 ~ 57.6V
|
|||
|
Maximum Charging Current
|
100A
|
|||
|
Maximum Discharging Current
|
100A
|
|||
|
DOD
|
80%
|
|||
|
Parallel Quantity
|
4
|
|||
|
Designed Life-span
|
6000
|
|||
|
INVERTER TECHNICAL SPECIFICATION
|
||||
|
Inverter model
|
SW-EOV48-5.0S-C1
|
|||
|
PV CHARGE
|
||||
|
Solar Charge Type
|
MPPT
|
|||
|
Maximum Output Power
|
5000w
|
|||
|
PV Charging Current Range
|
0～80A
|
|||
|
pv Operating Voltage Range
|
120~500v
|
|||
|
MPPT Voltage Range
|
120~450v
|
|||
|
AC CHARGE
|
||||
|
Maximum Charge Power
|
3150w
|
|||
|
AC Charging Current Range
|
0～60A
|
|||
|
Rated Input Voltage
|
220/230Vac
|
|||
|
Input Voltage Range
|
90～280Vac
|
|||
|
AC OUTPUT
|
||||
|
Rated Output Power
|
5000w
|
|||
|
Maximum Output Current
|
30A
|
|||
|
Frequency
|
50Hz
|
|||
|
Overload Current
|
35A
|
|||
|
BATTERY INVERTER OUTPUT
|
||||
|
Rated Output Power
|
5000w
|
|||
|
Maximum Peak Power
|
10KVA
|
|||
|
Power Factor
|
1
|
|||
|
Rated Output Voltage (Vac)
|
230Vac
|
|||
|
Frequency
|
50Hz
|
|||
|
Auto Switch Period
|
<15ms
|
|||
|
THD
|
<3%
|
|||
|
GENERAL DATA
|
||||
|
Communication
|
RS485/CAN/WIFI
|
|||
|
Storage time / temperature
|
6 months @25C;3 months @35°C;1 months @45°C;
|
|||
|
Charging temperature range
|
0～45C
|
|||
|
Discharging temperature range
|
-10～45°C
|
|||
|
Operation Humidity
|
5%～85%
|
|||
|
Nominal Operation Altitude
|
<2000m
|
|||
|
Cooling Mode
|
Force-Air Cooling
|
|||
|
Noise
|
6OdB(A)
|
|||
|
Ingress Protection Rating
|
IP20
|
|||
|
Recommended Operation Environment
|
Indoor
|
|||
|
Installation Method
|
Vertical
|
|||
|
Certification
|
UN38.3,MSDS,EN55032,EN55024,EN61000-3-2,EN61000-3-3
|
|||

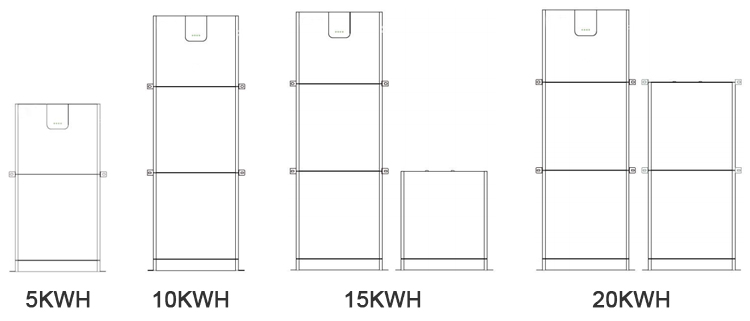

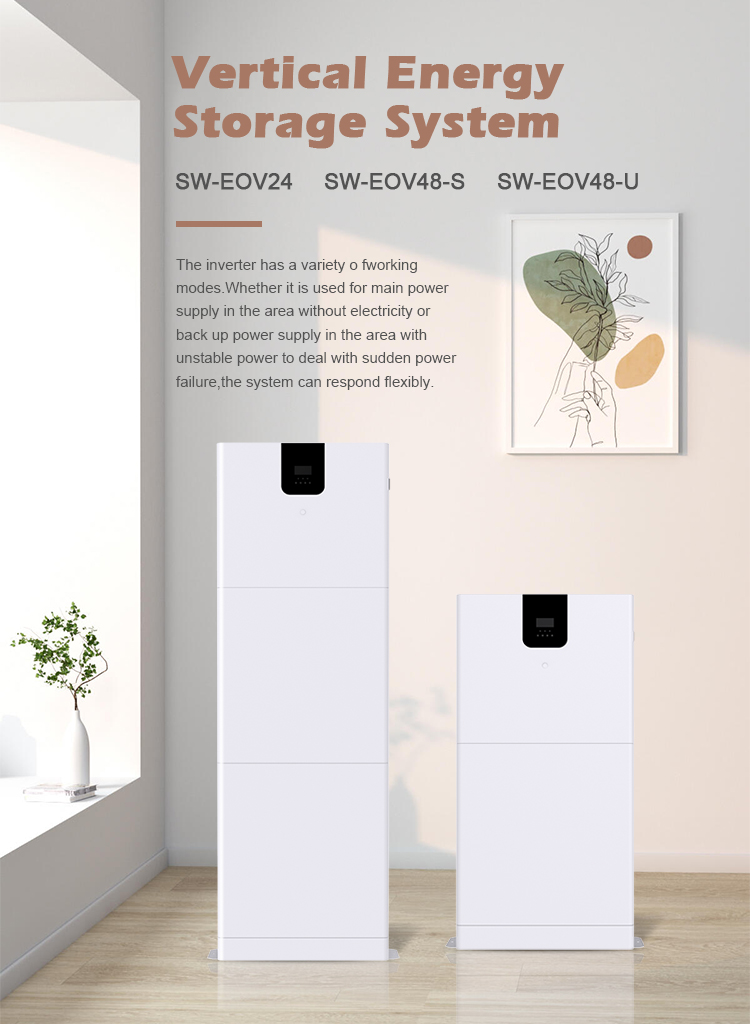

SW-EOV series energy storage system supports the capacity expansion with up to four energy storage
modules.

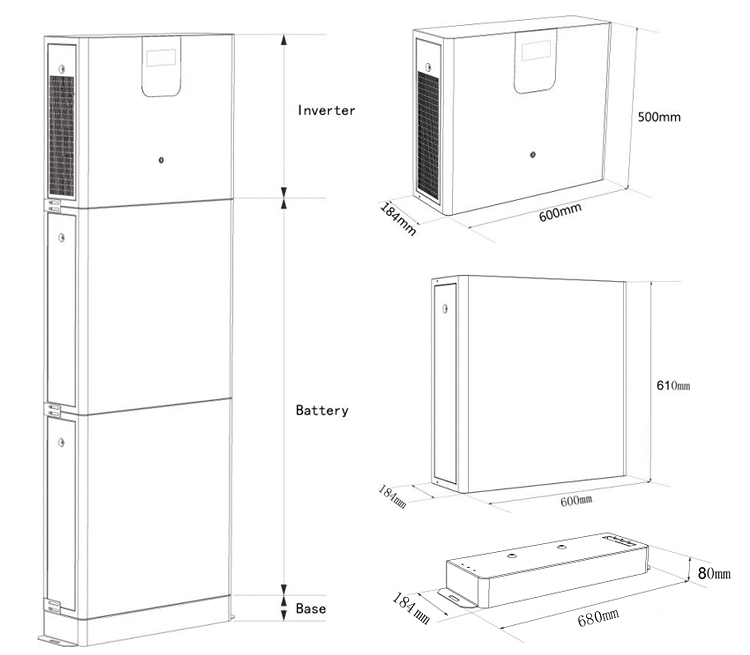

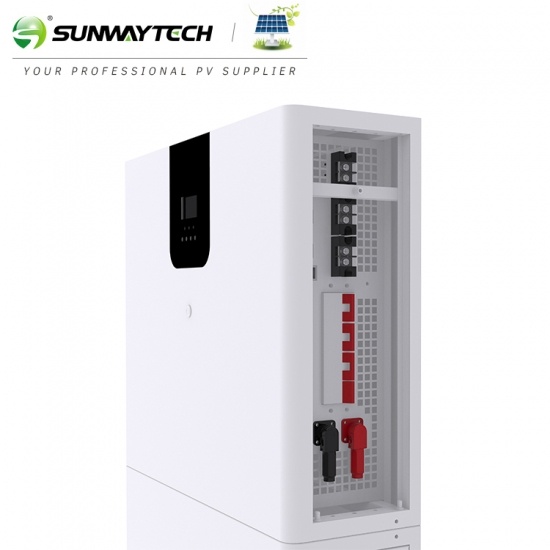

Inverter dimensions（L*W*H）:600*184*500mm
Battery dimensions（L*W*H）:600*184*610mm
Base dimensions（L*W*H）:680*184*80mm

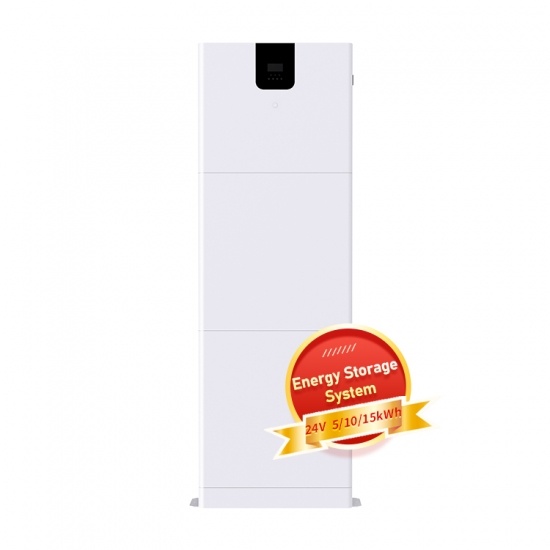

pvcellschain Ground Eco battery is a Ground mounted lithium battery pack which consists of long life-span LiFePO4 battery cells and functional BMS. It can store and release electric energy based on the requirements of the inverter controller. It is mainly for home energy storage system.
