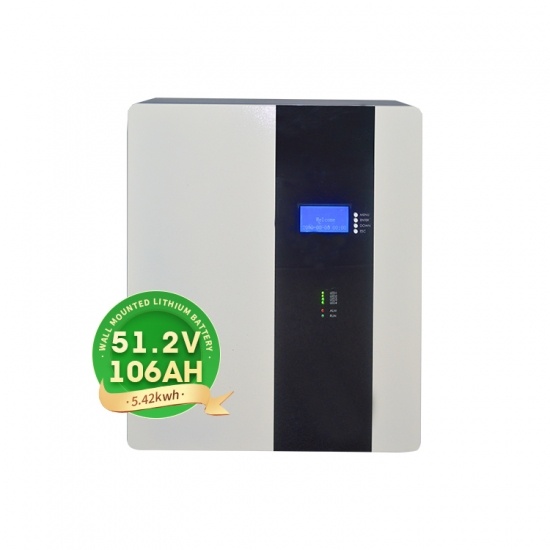

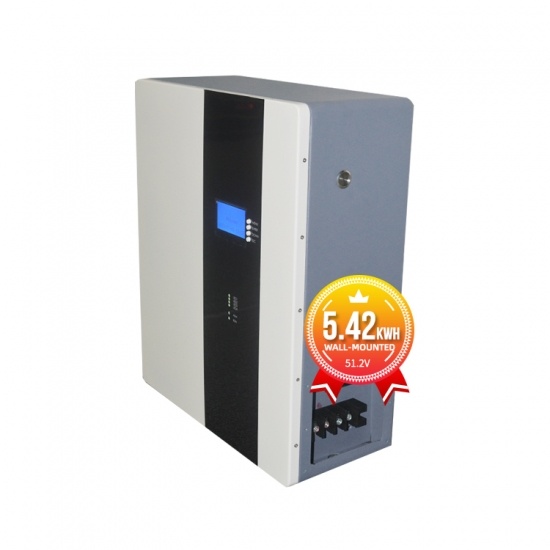

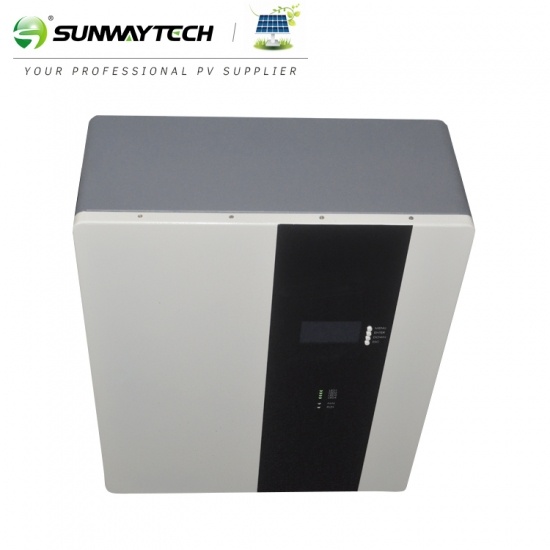

SUNWAY 51.2V 5kWh 5.24kWh 10kWh wall mounted battery 18650 lithium battery

The lithium iron phosphate rechargeable battery system features wall mounting, IP62 protection for outdoor use, over 6000 charge cycles or 10-year lifespan, and compatibility with popular off-grid inverters through standard CAN and RS485 communication protocols.
  • brand:

    pvcellschain
  • item no.:

    SW51B100TW3
  • Voltage:

    51.2V
  • capacity:

    5.42kwh
  • Cycle Life:

    6000 cycles
  • Certificate:

    MSDS,UN38.3,CE,IEC
  • product details

>>MAIN FEATURES

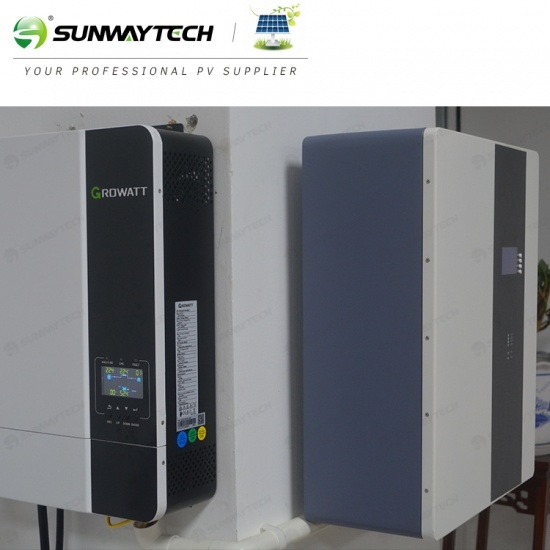

*Reduce floor space,wall-mounted installation.Wall mounted or floor mounted can be freely selected
*·LFP rechargable battery A+ Grade cell
*Good compatbility.standard communication protocal CAN and RS485,-compatible with most popular hybrid and off grid inverters in the market
*IP65 protection class,suit for outdoor installation

*Extramly long life cycle,more than 6000 times or 10 years
*High protection measures,built-in Aerosol active fire protection module,therma runaway detecton and active fire protection

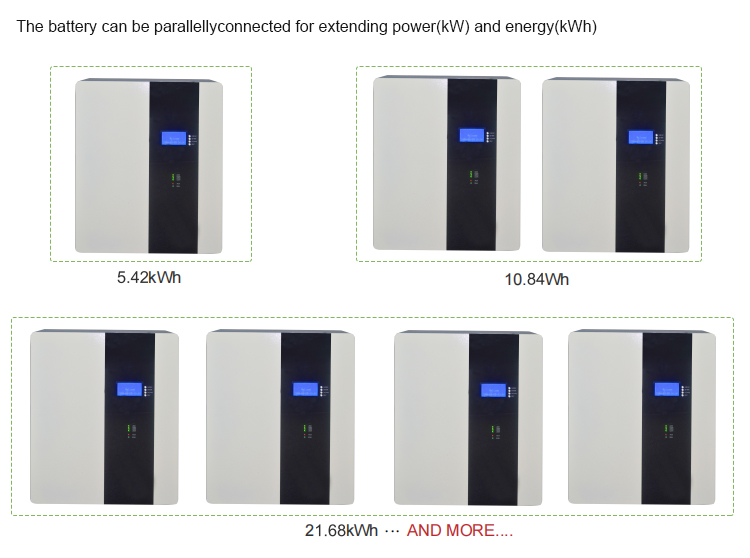

*Good extendibility,10kWh each,easy extend to 10kwh/20kWh/30kwh/40kWh etc



Models
SW51B100TW3
Nominal Capacity
106Ah
Nominal Voltage
51.2V
Shell Material
Metal case
Packaging Materials
Bubble wrap & carton
Weight
≤50kg
Rated charge current
≤90A
Limited Charge Voltage
58.4V( 16*3.65V)
Charge Mode
CC-CV
Rated discharge current
≤90A
Discharge Top- limited Voltage
40V( 16*2 .5V)
IP Rating
IP62
Charge
0-45°C
Discharge
-20-60°C
Temperature
-20-45°C
Humidity
60+25% R.H

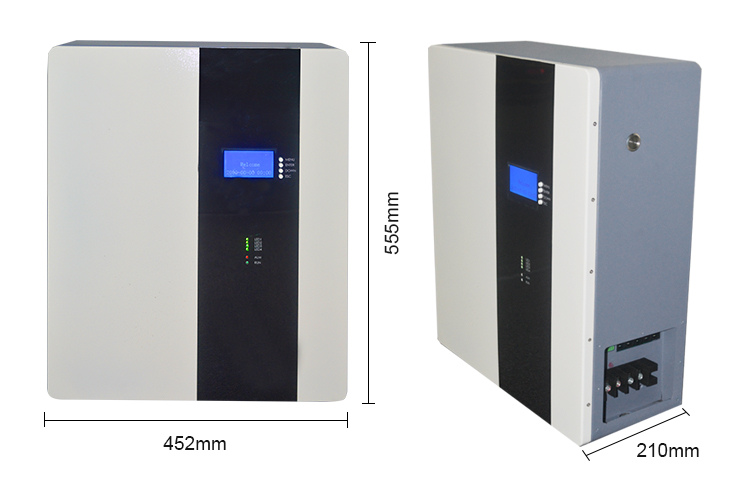

Thickness
210±2mm
Width
452±2mm
Lengtht
555 ±2mm
