product origin:
Anhuibrand:
pvcellschainitem no.:
SW515M-150shipping port:
Shanghai/Ningbocolor:
Black and Whitelead time:
15-20 Working dayspayment:
T/T, L/C, Paypal, Western UnionSolar Cell:
10BBNumber Of Cells:
150 CellsPower Range:
495~515WCertificate:
CE/TUV/ISOLead Time:
15 Working DaysPayment:
TT, L/C, Western Union, Credit Card, EtcWarranty:

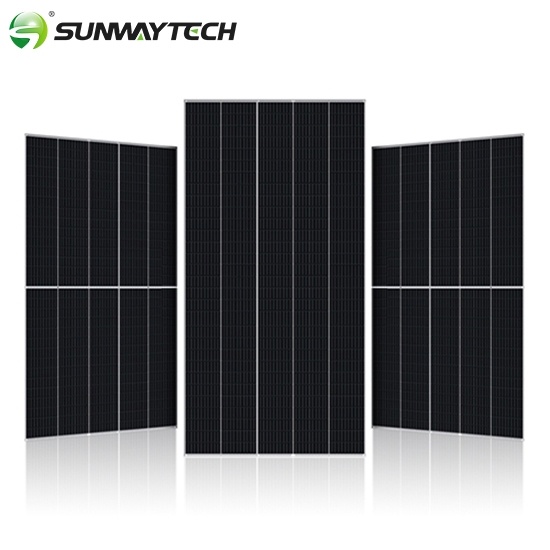

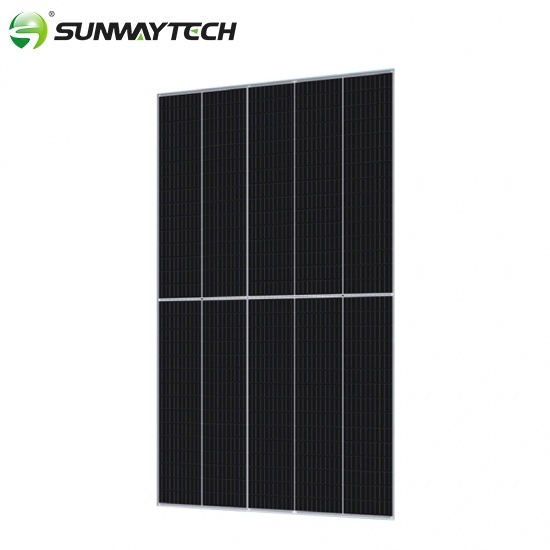

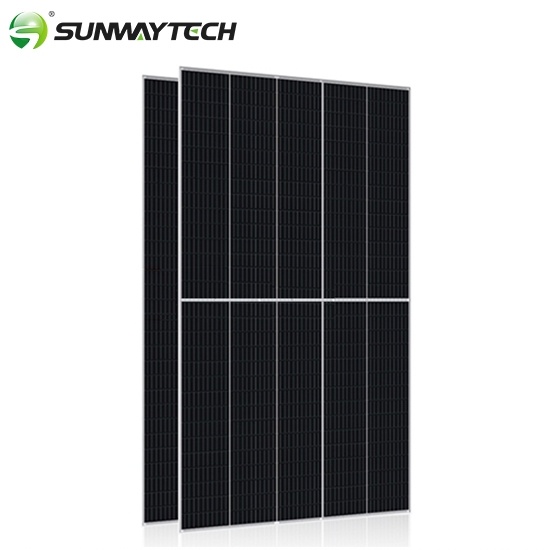

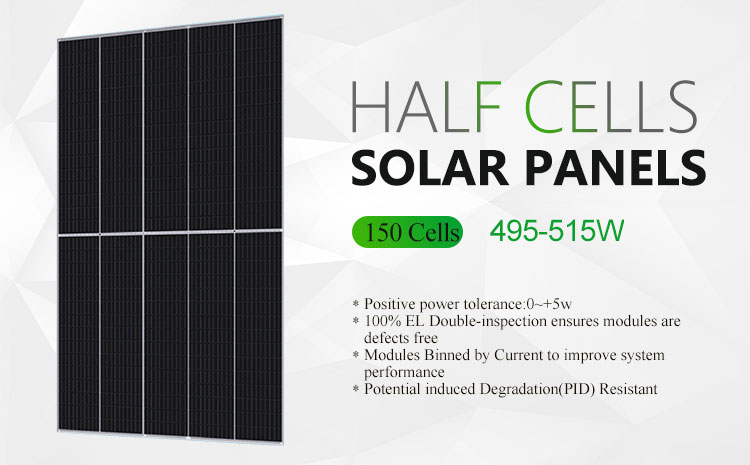

25 YearsHigh Power 10BB 210MM 150 Solar Cells 515W Mono Solar Panel
Technical Parameters of 10BB 495~515W 210MM Mono Solar Panel
|
Electrical Parameters |
|||||
|
Module |
SW495M-150 ~ SW515M-150 |
||||
|
Encapsulation |
Class/Eva/Cell/Eva/Backsheet |
||||
|
Maximum Power Pmax (W) |
495 |
500 |
505 |
510 |
515 |
|
Maximum Power Voltage (Vmp/V) |
42.70 |
42.90 |
43.10 |
43.30 |
43.50 |
|
Maximum Power Current (Imp/A) |
11.60 |
11.66 |
11.72 |
11.78 |
11.84 |
|
Open Circuit Voltage (Voc/V) |
51.40 |
51.60 |
51.80 |
52.00 |
52.20 |
|
Short Circuit Current (Isc/A) |
12.24 |
12.31 |
12.38 |
12.45 |
12.52 |
|
Cell Efficiency(%) |
22.45 |
22.68 |
22.90 |
23.13 |
23.36 |
|
Module Efficiency (%) |
20.33 |
20.53 |
20.74 |
20.94 |
21.15 |
|
Power Tolerance (W) |
0 ~ +5W |
||||
|
Temperature Coefficient of Isc (αIsc) |
|
||||
|
Temperature Coefficient of Voc (βVoc) |
-0.26%/℃ |
||||
|
Temperature Coefficient of Pmax (γPmp) |
-0.36%/℃ |
||||
|
STC |
Irradiance 1000W/㎡, Cell Temperature 25℃ , Spectrum AM 1.5 |
||||
