product origin:
Anhuibrand:
pvcellschainitem no.:
THPM5-60SBshipping port:
Shanghai portcolor:
Full Blacklead time:
15-20 Working dayspayment:
T/T, L/C, Paypal, Western UnionSolar Cell:
410W/500W Shingled Solar PanelNumber Of Cells:
shingledPower Range:
410/500wCertificate:
TUV/CE/ISO/ETLLead Time:
10 DaysPayment:
T/TWarranty:

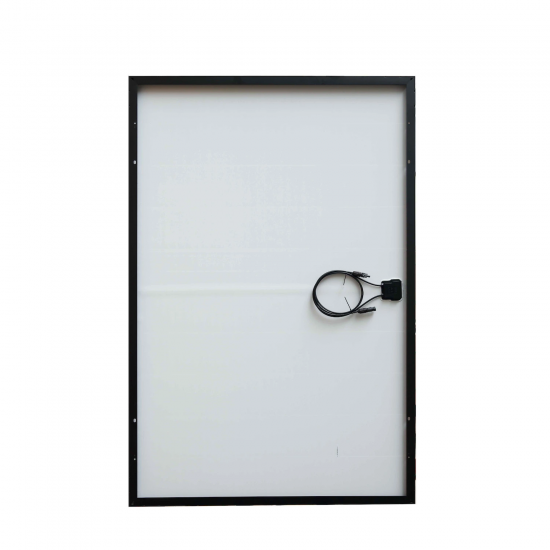

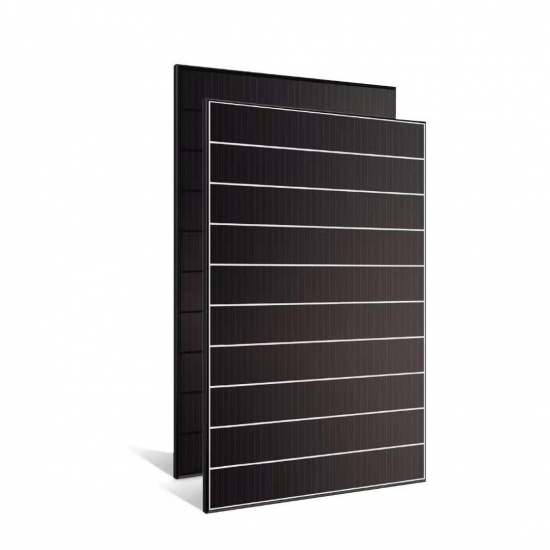

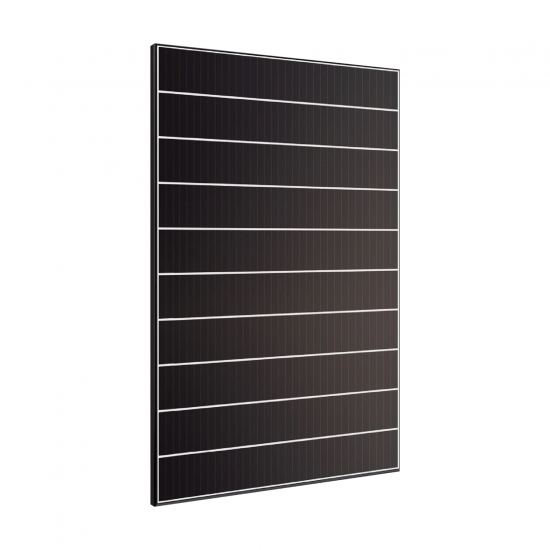

25 YearsProduct Name: 500W Shingled Solar Panel Overlapping solar module
Shingled Solar Panel Features
The shingled solar module increases the effective power generation area by more than 2% compared with conventional solar modules, and the number of cells that can be packaged is increased to 66 pieces compared to the 60-piece version.

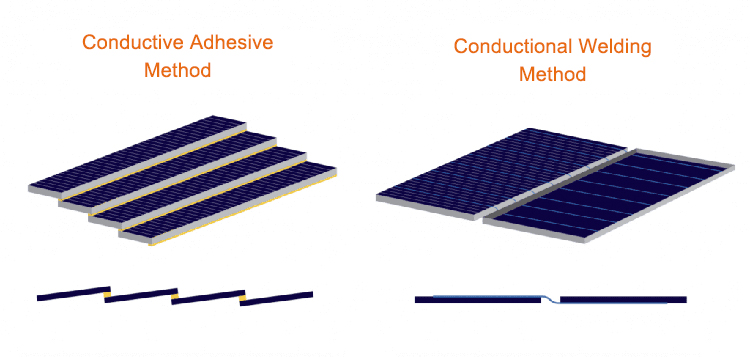

Replacing the soldering strip with conductive adhesive avoids the shielding area of the soldering strip to reach 4%.
Such shingled technology has also became one of the current mainstream packaging technologies for high-efficiency solar panel.
|
Electrical Characteristics at Standard Test Conditions(STC)
|
||||||
|
Module type:THxxxPM5-60SB
|
385
|
390
|
395
|
400
|
405
|
410
|
|
Maximum power-Pm(W)
|
385
|
390
|
395
|
400
|
405
|
410
|
|
Open circuit voltage-Voc(V)
|
46.2
|
46.3
|
46.3
|
46.4
|
46.5
|
46.6
|
|
Short circuit current-Isc(A)
|
10.82
|
10.87
|
10.92
|
10.97
|
11.02
|
11.07
|
|
Maximum power voltage-Vm(V)
|
38.4
|
38.5
|
38.5
|
38.6
|
38.7
|
38.8
|
|
Maximum power current-Im(A)
|
10.03
|
10.13
|
10.26
|
10.36
|
10.47
|
10.57
|
|
Module efficiency(%)
|
19.6
|
19.9
|
20.2
|
20.4
|
20.7
|
20.9
|
|
Electrical Characteristics at NMOT
|
||||||
|
Maximum power-Pm(W)
|
290
|
294
|
297
|
301
|
305
|
309
|
|
Open circuit voltage-Voc(V)
|
44
|
44.1
|
44.1
|
44.2
|
44.3
|
44.4
|
|
Short circuit current Isc(A)
|
8.37
|
8.77
|
8.81
|
8.85
|
8.89
|
8.93
|
|
Maximum power voltage-Vm(V)
|
36.6
|
36.7
|
36.7
|
36.8
|
36.9
|
37
|
|
Maximum power current-Im(A)
|
7.92
|
8
|
8.1
|
8.18
|
8.27
|
8.35
|
|
*STC:Irradiation 1000W/㎡;AM1.5;ambient temperature 25℃ according to EN 60904-3；
*NMOT:irradiation 800W/㎡;wind speed 1m/s;ambient temperature 20℃；
*Tolerance of Pm:0~+5W;Measuring uncertainty of power: ±3%.Performance deviation of Voc ,Isc ,Vm and Im: ±3%
|
||||||
