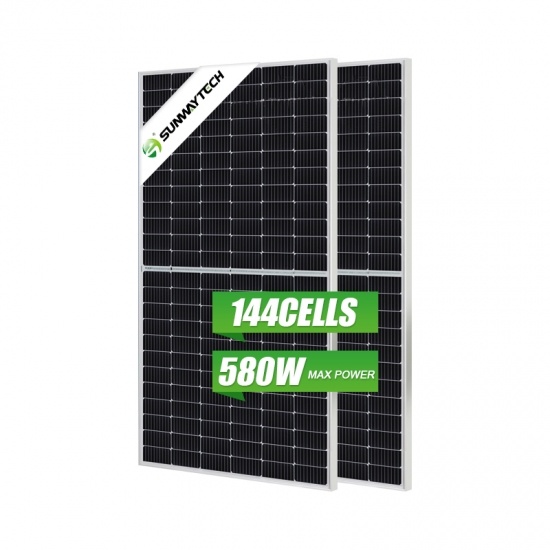

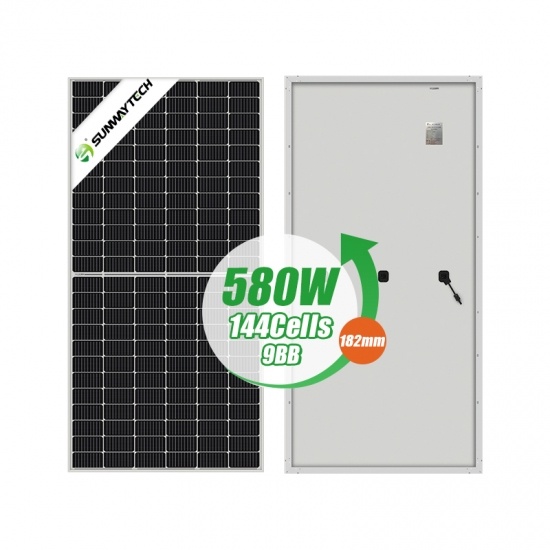

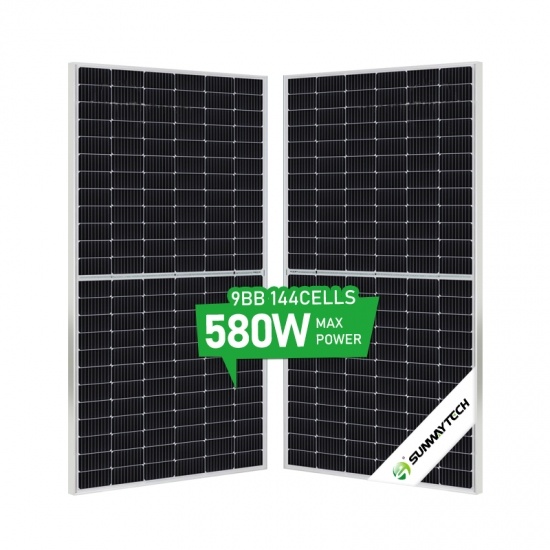

High Efficiency 10BB Cell 550W 580W Solar Panel with high power

pvcellschain 500W 550W 580W Solar Panel With new cell structure on the front without electrodes,High Efficiency 10BB Cell half-cut technology, 100% EL Double-inspection ensurec.
  • product origin:

    Anhui
  • brand:

    pvcellschain
  • item no.:

    SW580M-150
  • shipping port:

    Shanghai/Ningbo
  • color:

    Black and White
  • lead time:

    15-20 Working days
  • payment:

    T/T, L/C, Paypal, Western Union
  • Solar Cell:

    10BB
  • Number Of Cells:

    150 Cells
  • Power Range:

    555-580w
  • Certificate:

    CE/TUV/ISO
  • Lead Time:

    15 Working Days
  • Payment:

    TT, L/C, Western Union, Credit Card, Etc
  • Warranty:

    25 Years
  • product details

High Efficiency Cell 580W Solar Panel



Electrical Parameters
Module
SW555M-144 ~ SW580M-144
Encapsulation
Class/Eva/Cell/Eva/Backsheet
Maximum Power Pmax(W)
555
560
565
570
575
580
Maximum Power Voltage(Vmp/V)
41.8
42
42.2
42.4
42.6
42.8
Maximum Power Current(Imp/A)
13.29
13.35
13.41
13.47
13.53
13.59
Open Circuit Voltage(Voc/V)
50
50.2
50.4
50.6
50.8
51
Short Circuit Currrnt(Isc/A)
14.05
14.11
14.17
14.23
14.29
14.35
Module Efficiency(%)
21.7
21.9
22.1
22.3
22.5
22.7
Power Tolerance(W)
0~+5W
Temperature Coefficient of Isc(αIsc)
+0.059%/℃
Temperature Coefficient of Voc(βVoc)
-0.330%/℃
Temperature Coefficient of Pmax(γVoc)
-0.410%/℃
STC
Irradiance 1000w/㎡, Cell Temperature 25℃, Air Mass 1.5

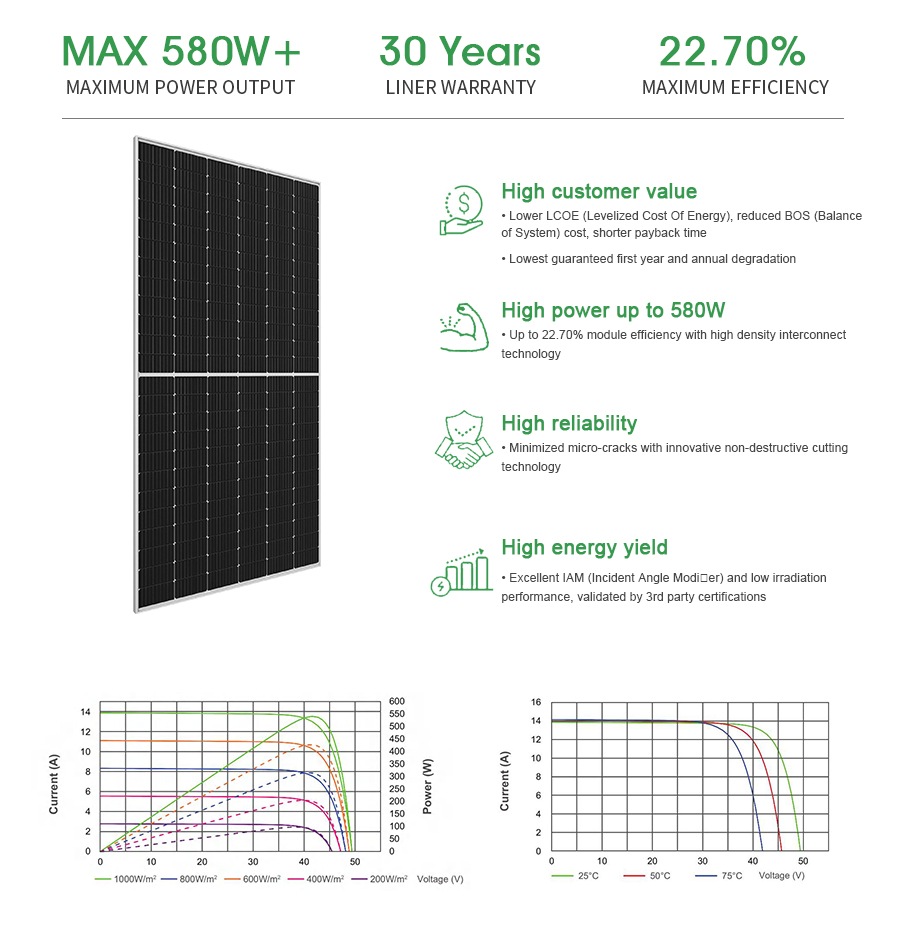

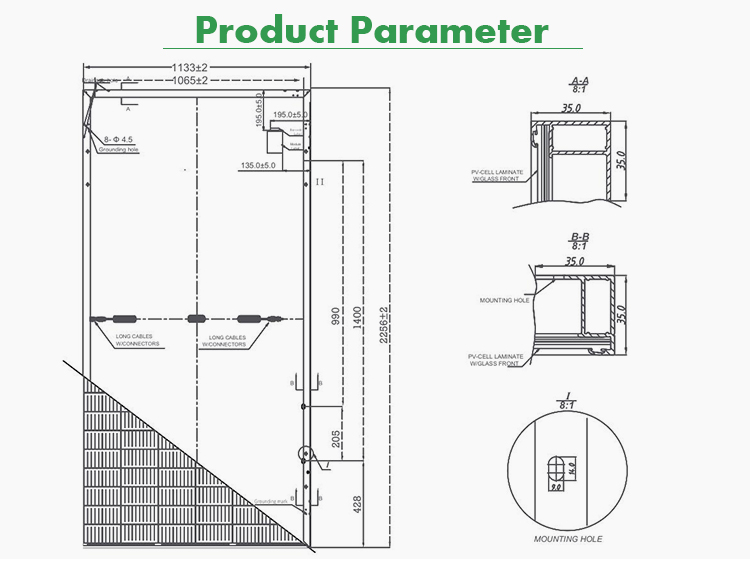

Technical Parameters of High Efficiency 10BB Cell 580W Solar Panel
