product origin:
Anhuibrand:
pvcellschainitem no.:
GBLI6532shipping port:
Shanghai Port or Any other Port in Chinapayment:
EXW, FOB, CIF, CFR, DDU, DAT, DAP, etc.,Voltage:
51.2vcapacity:
6.5kwhBattery type:
LiFePO4 Battery Pack
Product Paramenters
|
Datasheet
|

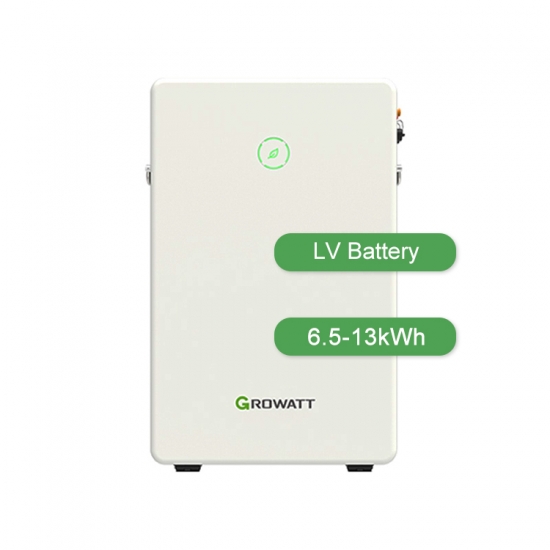

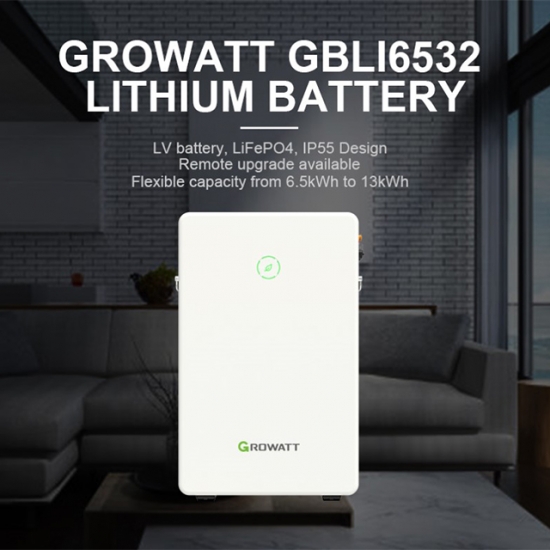

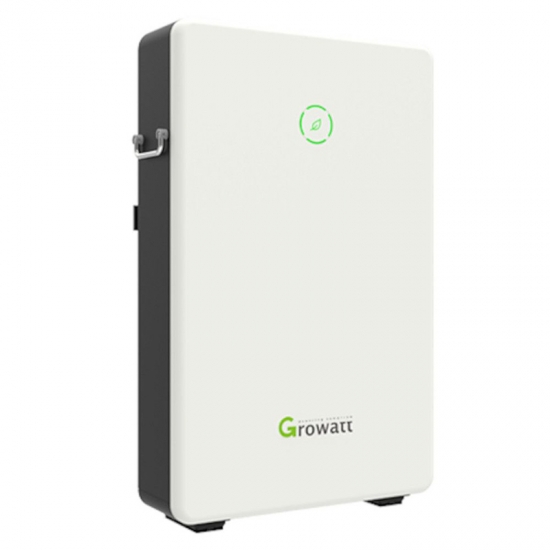

Growatt GBLI6532
|
|
Battery Date
|
|
|
Nominal Voltage
|
51.2V
|
|
Nominal Capacity
|
6.5kWh
|
|
Usable Capacity
|
6kWh
|
|
Operating Voltage
|
48-57.6V
|
|
Charging/Discharging Current
|
104.2A
|
|
Max discharge power
|
5kW
|
|
General Data
|
|
|
Dimension (W*H*D)
|
475*745*149mm
|
|
Weight
|
58KG
|
|
IP Protection
|
IP55
|
|
Working temperature
|
-10°C-+50°C
|
|
Storage temperature
|
-20°C-45°C
|
|
Features
|
|
|
Cycle Life
|
>6000
|
|
System Connection
|
Max. 2 pcs in parallel
|
|
Communication Port
|
CAN2.0/RS485
|
|
Warranty
|
10 Years
|

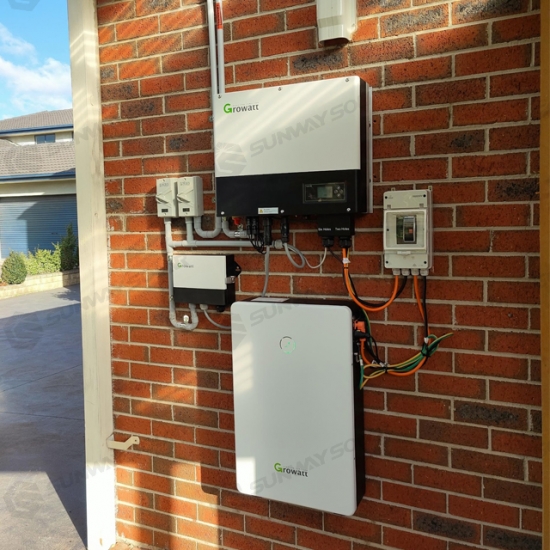

Solar Storage System,Perth,Australia
Growatt's battery ready inverter,MIN 2500-6000TL-XH now starts to go into households in Perth in Western ，
interface that can be easily extended to a storage system in the future.

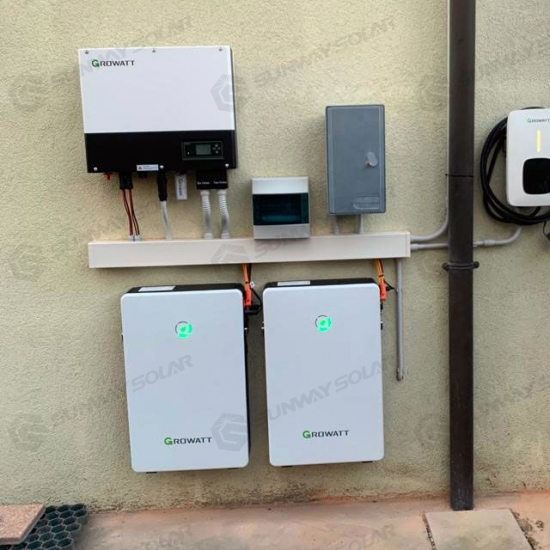

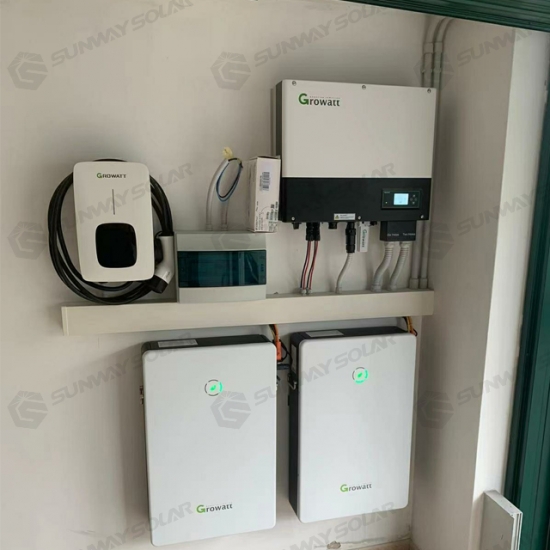

In Spain, to cut electricity bills, this family has installed Growatt's solar energy storage system
to increase PV self-consumption and storage the energy for use at night.
Our modular hydrogen systems leverage advanced electrolysis technology to efficiently produce 5 to 50 cubic meters of renewable hydrogen per hour and store for on-demand usage.
Cylindrical battery cells feature rolled anode, cathode, separator in a cylindrical can. Requires additional fixings for support which adds weight. Good quality and performance. Portable and safe.
Original new brand prismatic lithium-ion battery cells with real capacity over 230Ah. Comes with EVE official test report verifying consistent voltage and low internal resistance between cells, essential for battery packs. Ensures no quality issues like voltage dropping or rising internal resistance thanks to robust inner cell components and connections.
The Growatt 30-40kW three phase grid-tied inverter is a high efficiency, intelligent solar inverter that can convert DC power from commercial PV systems into AC for grid connection
Components SW30KW-Hybrid SW50KW-Hybrid SW100KW-Hybrid SW120KW-Hybrid SW150KW- Hybrid 580W Mono Solar Panel 51 Pieces 85 Pieces 170 Pieces 204 Pieces 255 Pieces Combiner Box 3 in 1 out 5 in 1 out 10 in 1 out 12 in 1 out 15 in 1 out Hybrid Inverter 30kw 50kw 100kw 120kw 150kw 48V 100ah (LifePO4) Battery 8 Piece 8 Pieces 16 Pieces 20 Pieces 20 Pieces DC Cable 400 Meters 800 Meters 1600 Meters 2000 Meters 2400 Meters MC4 Connector 6 Pairs 10 Pairs 20 Pairs 24 Pairs 30 Pairs Mounting System Ground or Roof ( Customized Optional ) Product Details Our Factory Application Recommend Products
A variant of these types of batteries that are valve regulated and have gel electrolyte are called OPZV. These are a maintenance free variant of OPZV.
8KW Off Grid Solar Generating Power System for Homes. Independently and whole Day-Night working. Specially Customized as client requested.
Features of pvcellschain Solar Home Battery Storage Solution 1. Adopting the latest Latest LifePo4 prismatic cell technology 2. Warranted throughout of 10MWh per 1kWh of stored capacity 3. 1C Discharge rate and 0.5C Charge rate 4. 158Wh per Kg+/-5% for cells 5. 2.6kWh 5kWh 10kWh optional 6. 5000 cycles @25℃ 0.7C conditions 7. Plug and Play functionality 8. Multiple BMS functionality allowing greater control and monitor 9. Scalable Battery Packs 10.Wall mounted and Ground type selectable 11.Multiple Energy Capacity options 12.BMS Compatible with Growatt, Goodwe, Deye, SMA, etc., 13.Wall mounted lithium battery is mainly for home energy stoarge solutions.
Hybrid solar system is a solar system, suitable for a place where is no grid network or grid power is not stable. This solar can be described as off-grid solar system with utility backup power, or grid-tied solar system with extra battery storage.
Energy Storage System(ESS)is a set solar system, suitable for a place where is no grid network or grid power is not stable. This solar can be described as off-grid solar system with utility backup power, or grid-tied solar system with extra battery storage.
Light weight and ultra-thin design Ultra high flexibility Efficient and reliable
A lithium-ion battery or Li-ion battery is a type of rechargeable battery.
