pvcellschain 18650 Lithium Prismatic LiFePO4 Battery Cells

Cylindrical battery cells feature rolled anode, cathode, separator in a cylindrical can. Requires additional fixings for support which adds weight. Good quality and performance. Portable and safe.
  • brand:

    pvcellschain
  • item no.:

    DFDLFR60130 LFP
  • Voltage:

    2.0V-3.65V
  • Cycle Life:

    6000
  • Payment:

    T/T, L/C, Alipay, Paypal, Western Union
  • Warranty:

    3-12 Months
  • Battery type:

    LFP
  • Battery Size:

    53*173*206mm
  • product details

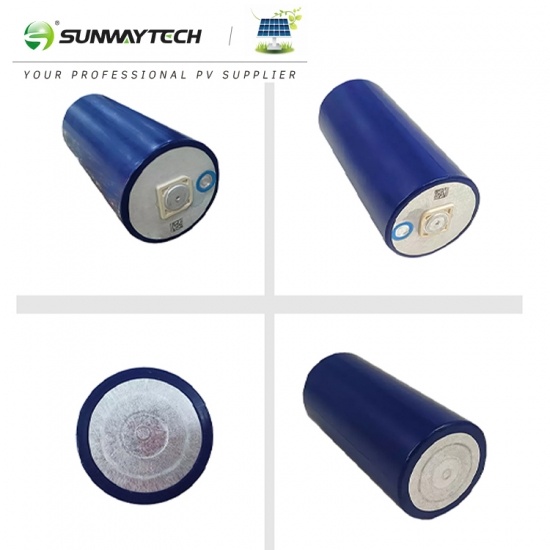

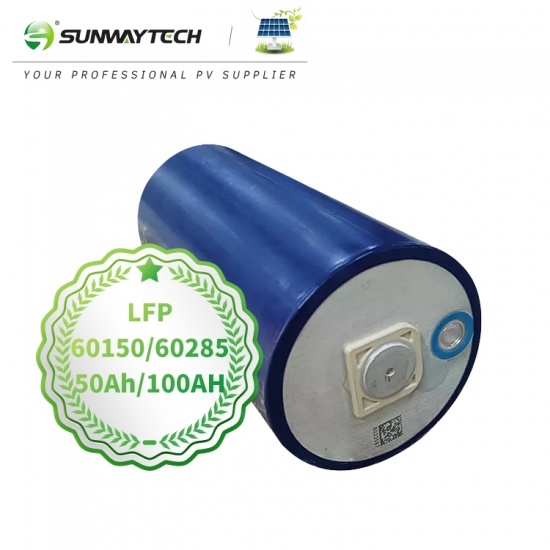

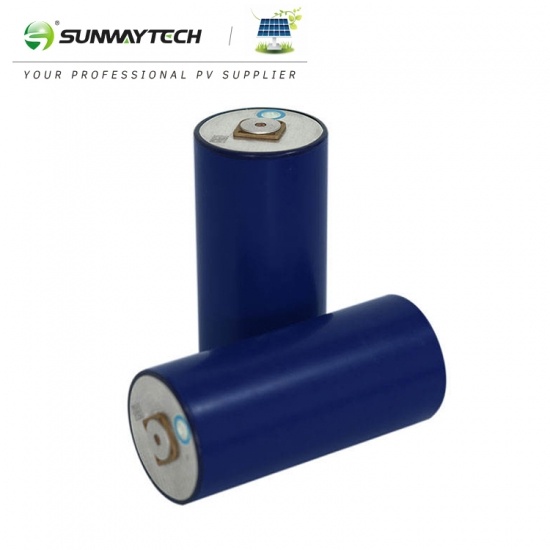

Cylindrical Cells

Cylindrical cells consist of sheet-like battery anode, cathode, and separator that are sandwiched, rolled up, and packed into a cylinder-shaped can. This type of cell is one of the first to be mass-produced and is still very popular. Cells feature multiple rows with the arrester being on opposite sides. They are adhesive-connected with busbars by welding technology and are optionally wire bonded. In this case, no support plates are necessary. Cylindrical cells have to be fixated into a battery module or packed by rigid spacers, spacer strips, or mounting brackets. Additionally, glue can be used as the primary fixation of cylindrical cells. These fixings add additional weight and complexity to the battery pack.
Type
DFDLFR60130 LFP
DFDLFR60145 LFP
DFDSNR60130 NMF
Standard Voltage
3.15V/3.20V
 RT@1C/0.33C Discharge
3.20V
 RT@0.33C Discharge
3.0V
RT@0.33C Discharge
Nominal Capacity
46.5Ah/46.5Ah
RT@1C/0.33C Discharge
50Ah/50Ah
RT@1C/0.33C Discharge
32Ah/33Ah
RT@1C/0.33C Discharge
Voltage Range
2.0V~3.65V
2.0V-3.65V
1.5-3.95V
Standard Charge
1/3C CC to 3.65V, 3.65V CC to 0.05C
1/3C CC to 3.95V,
3.95V CC to 0.05C
Max Charge Current
32.6A
50A
16A
Standard Discharge
1/3C CC to 2.0V
1/3C CC to 1.5V
Max Discharge Current
46.5A
50A
60A
TEM
Charge:-20°C - 55°C
Discharge : -30°C - 60°C
Weight
802g
920g
770g
Dimension(mm)
132*60
145*60
132*60
Density
>=178Wh/kg ,>=395wh/L RT@1C Discharge
>=175wh/kg ,>=400wh/L RT@0.33C Discharge
>=132wh/kg ,>=265wh/L RT@0.33C Discharge
Life Cycle
2000
6000
1500
