product origin:
Anhuibrand:
pvcellschainitem no.:
SW670M-132shipping port:
Shanghai/Ningbocolor:
Black and Whitelead time:
15-20 Working daysSolar Cell:
MBB 210*210mmNumber Of Cells:
132CellPower Range:
650-670wCertificate:
CE/TUV/ISOLead Time:
15 Working daysPayment:
LC, TT, Western Union, Credit Card, etc.Warranty:

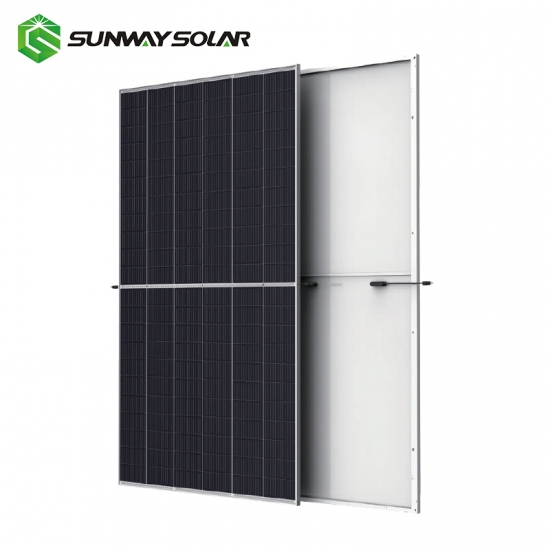

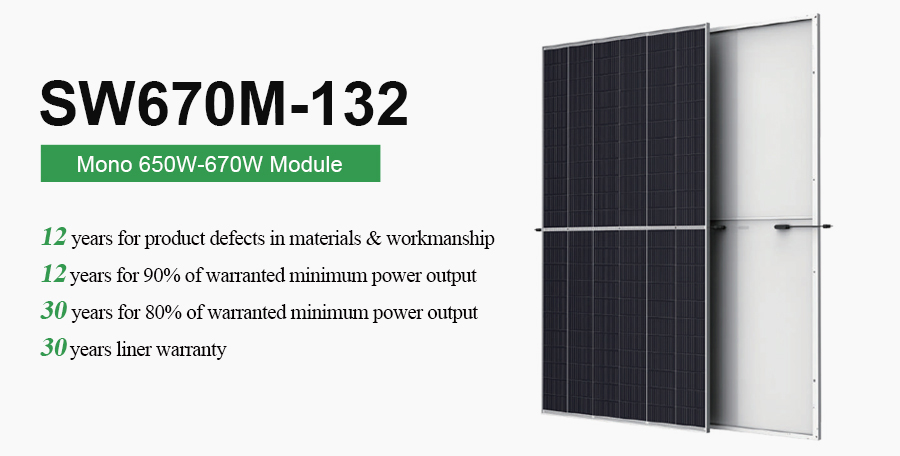

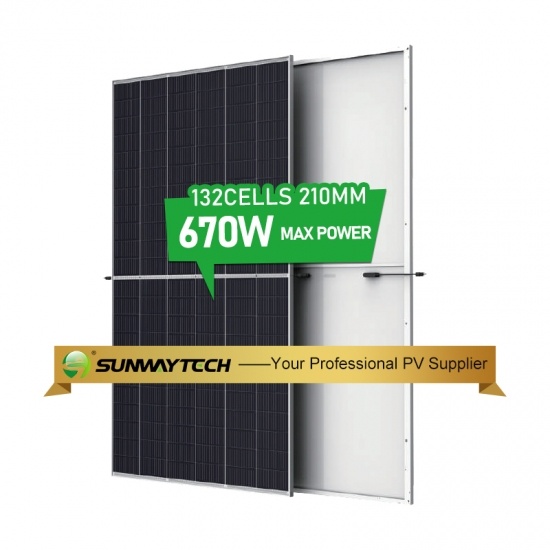

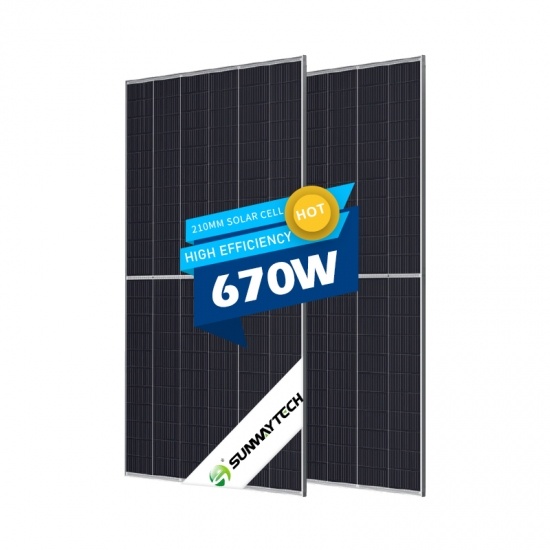

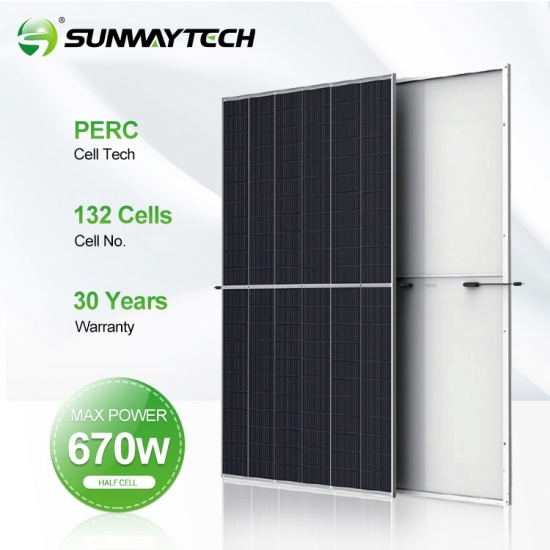

30 YearsHalf Cut 670W Solar Panel MBB Perc 132Cells 210mm Cell Size PV Monocrystalline Modules
About Half Cut 670W Solar Panel MBB Perc 132Cells 210mm Cell Size PV Monocrystalline Modules
1. By pass diode minimizes the power drop by shade
2. Unique split junction box design to minimize the loss caused by occlusion
3. Combination of series circuit and parallel circuit, reduced internal power loss
4. Solar Panel Size: 2384*1303*35mm, Solar Cell Size: 210*210mm. Technology: Perc Half Cut
5. The most rigorous test and comprehensive QC information management, ensure 3% Positive Power Tolerance

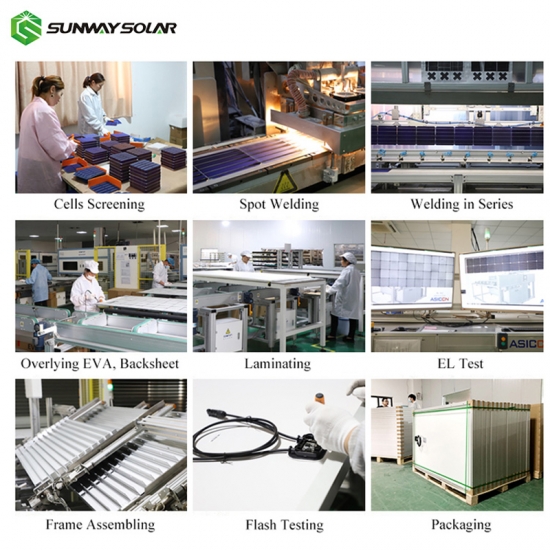

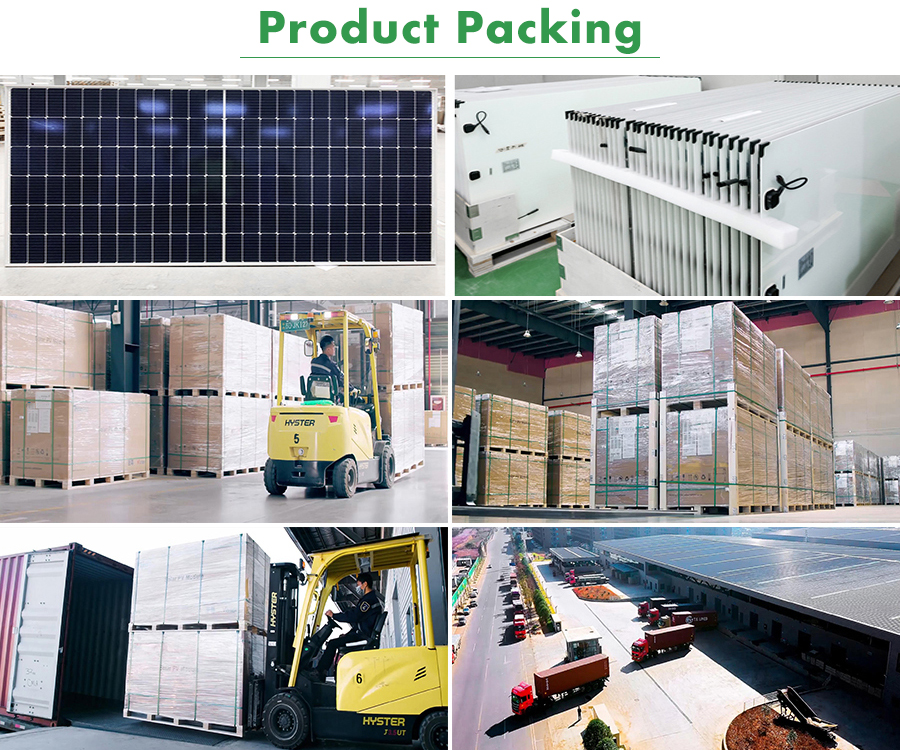

6. Professional technicians perform the fourth product quality inspection and secure and sturdy packaging
7. pvcellschain Solar panels is widely sold abroad more than 150 countries, such as Lebanon, UAE, Spain, Ukraine, Poland, South Africa, Vietnam, and so on.
Electrical Characteristics(STC) of Half Cut 670W Solar Panel MBB Perc 132Cells 210mm Cell Size PV Monocrystalline Modules
Model
SW645M-132 ~ SW670M-132
Encapsulation
Class/Eva/Cell/Eva/Backsheet
Maximum Power (Pmax)
655W
660W
665W
670W
Open-circuit Voltage (Voc)
45.40
45.60
45.80
46.00
Maximum Power Voltage (Vmp)
38.00
38.20
38.40
38.60
Short-circuit Current (Isc)
18.30
18.34
18.38
18.42
Maximum Power Current (Imp)
17.24
17.28
17.32
17.36
Module Efficiency (%)
21.1
21.3
21.4
21.6
Power Tolerance
0~+5W
Temperature Coeffcient of Isc
0.043%/ºC
Temperature Coeffcient of Voc
-0.260%/ºC
Temperature Coeffcient of Pmax
-0.360%/ºC
