product origin:
Anhuibrand:
pvcellschainitem no.:
SW-M144shipping port:
Shanghai/Ningbocolor:
Black and Whitelead time:
15-20 Working daysSolar Cell:
mono 9BB 6*24cellNumber Of Cells:
144CELLPower Range:
525W-550WCertificate:
CE/TUV/ISOLead Time:
15 Working daysPayment:
LC, TT, Western Union, Credit Card, etc.Warranty:

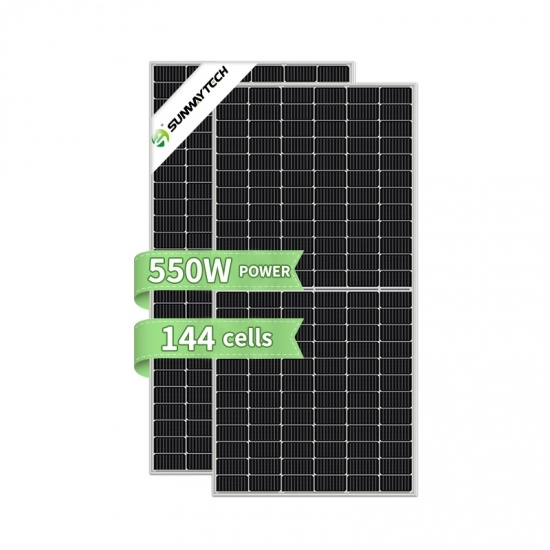

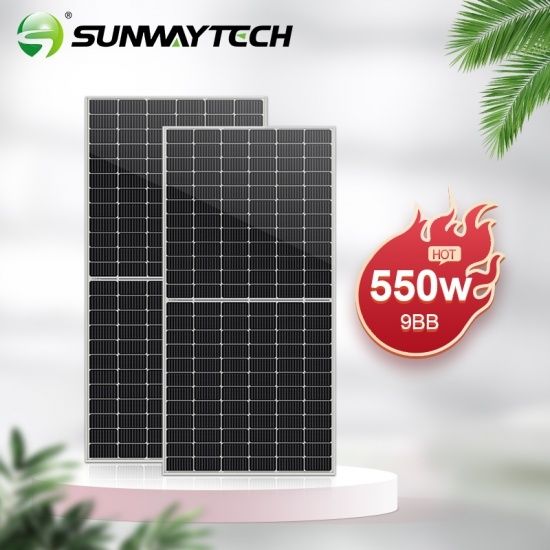

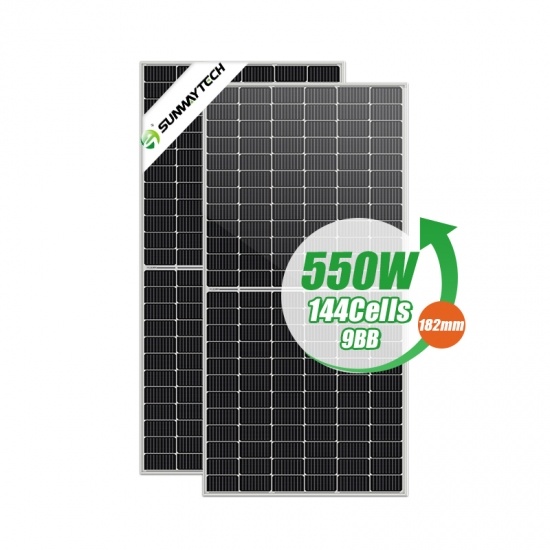

25 Years144 Cell 9BB 525W Solares Paneles Mono Manufacturing
|
Electrical Characteristics(STC)
|
||||||
|
Module Type
|
SW525M-144
|
SW530M-144
|
SW535M-144
|
SW540M-144
|
SW545M-144
|
SW550M-144
|
|
Maximum Power (Pmax)
|
525W
|
530W
|
535W
|
540W
|
545W
|
550W
|
|
Maximum Power Voltage (Vmp)
|
40.60V
|
40.80V
|
41.00V
|
41.20V
|
41.40V
|
41.60V
|
|
Maximum Power Current (Imp)
|
12.94A
|
13.00A
|
13.05A
|
13.11A
|
13.17A
|
13.23A
|
|
Open-circuit Voltage (Voc)
|
48.80V
|
49.00V
|
49.20V
|
49.40A
|
49.60A
|
49.80A
|
|
Short-circuit Current (Isc)
|
13.71A
|
13.76A
|
13.81A
|
13.87A
|
13.93A
|
13.99A
|
|
Module Efficiency (%)
|
20.50%
|
20.70%
|
20.90%
|
21.10%
|
21.30%
|
21.50%
|
|
Power Tolerance
|
0~+5W
|
|||||
|
Temperature Coeffcient of Isc
|
+0.05%/℃
|
|||||
|
Temperature Coeffcient of Voc
|
-0.29%/℃
|
|||||
|
Temperature Coeffcient of Pmax
|
-0.37%/℃
|
|||||

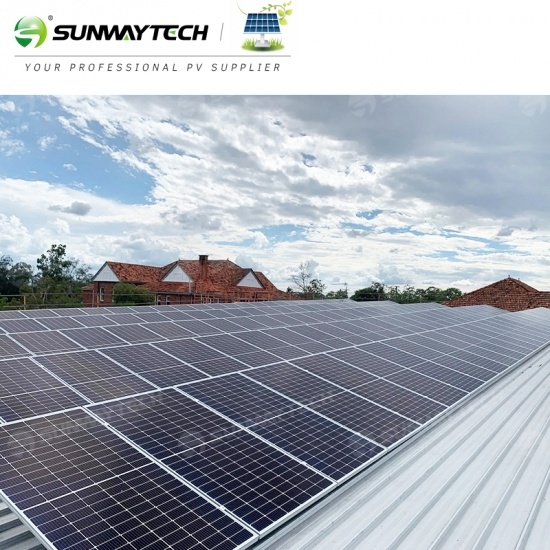

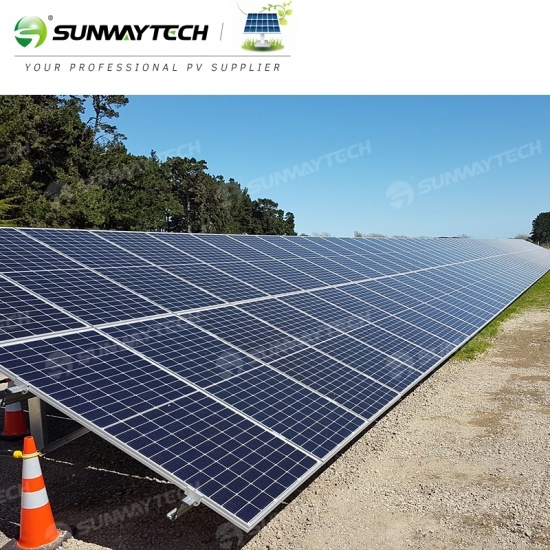

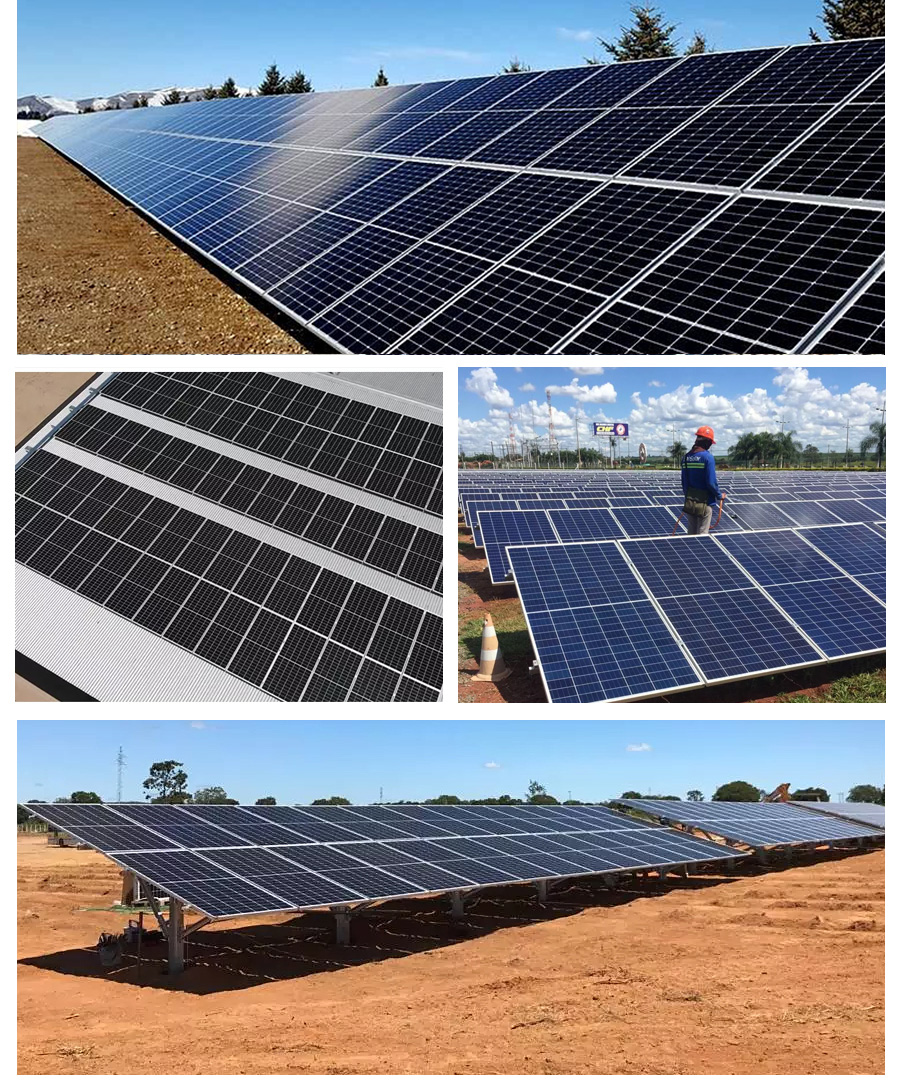

Project
pvcellschain 500W 550W 580W Solar Panel With new cell structure on the front without electrodes,High Efficiency 10BB Cell half-cut technology, 100% EL Double-inspection ensurec.
pvcellschain 550 watt Placa Solar Panels Mono 144 Cell Solar Photovoltaic. Cell number 144 cell. DC/Charger Volt Compatible 12v, 24v, 48v
Light weight and ultra-thin design Ultra high flexibility Efficient and reliable
pvcellschain 500W 550W 580W Solar Panel With new cell structure on the front without electrodes,High Efficiency 10BB Cell half-cut technology, 100% EL Double-inspection ensurec.
Premium home solar power system offers an eco-friendly 5.5KW off-grid solution with rechargeable batteries for energy independence.
pvcellschain 12V 24V 48V 30A 40A 50A 60A Mppt Solar Charge Controller Easy to set up and operate, suitable for home, industrial, commercial etc.
Growatt inverters have been installed in more than 60 countries (e.g. Australia, Brazil, India, the UK, Germany, Italy,Belgium, Spain etc.)
On Grid-Tied Solar Power Inverter 30000-50000TL3-S, Max Recommended PV Power 60000 Watt, Maximum efficiency of 99%-Dual MPP Trackers, 3-Phase Grid-Tied Solar Inverter Integrated DC Switch
3KW Off Grid Solar Power System for Home Use. Independently and whole Day-Night working. Specially Customized as client requested.
The lithium iron phosphate rechargeable battery system features wall mounting, IP65 protection for outdoor use, over 4000 charge cycles or 10-year lifespan, easy 5kWh modular expandability up to 15kWh, and compatibility with popular off-grid inverters through standard CAN and RS485 communication protocols.
25w led solar powered flood lights use high-intensity discharge lamps based on metal halides or high-pressure sodium
Front Terminal GEL Storage Battery 12V 150AH Lead Acid Battery Products Specification Model 6-GFM-150Ah 6-GFM(G)-150Ah Cells Per Unit 6 Voltage Per Unit 12 Capacity 150Ah@10hr-rate to 1.80V per cell @25°C Weight 43kg 47kg Internal Resistance Approx. 3.5 mΩ Approx. 4 mΩ Terminal F8 Max.Discharge Current 2250A (5 sec) Design Life 6~8 years 10~15 years Maximum Charging Current 37.5A Reference Capacity C10 150.0AH C3 115.0AH C1 82.8AH C10 150.0AH C3 108.7AH C1 82.4AH Float Charging Voltage 13.6 V~13.8 V @ 25°C Temperature Compensation: -20mV/°C/Cell Cycle Use Voltage 14.4 V~14.9 V @ 25°C Temperature Compensation: -30mV/°C/Cell Operating Temperature Range Discharge: -15°C~50°C Charge: 0°C~40°C Storage: -15°C~40°C Discharge: -20°C~60°C Charge: 0°C~50°C Storage: -20°C~60°C Normal Operating Temperature Range 25°C±5°C Self Discharge Less than 3% at 25°C per month Container Material A.B.S. UL94-HB, UL94-V0 Optional Detailed Images
