brand:
pvcellschainitem no.:
SW51B100TW2Cycle Life:
6000 cyclesCertificate:
MSDS,UN38.3,CE,IECWarranty:
10YEARSBattery type:
Lithium Ion, LiFePO4Usage:
Home Appliances, Electric Power Systems, Solar Energy Storage Systems, Solar System

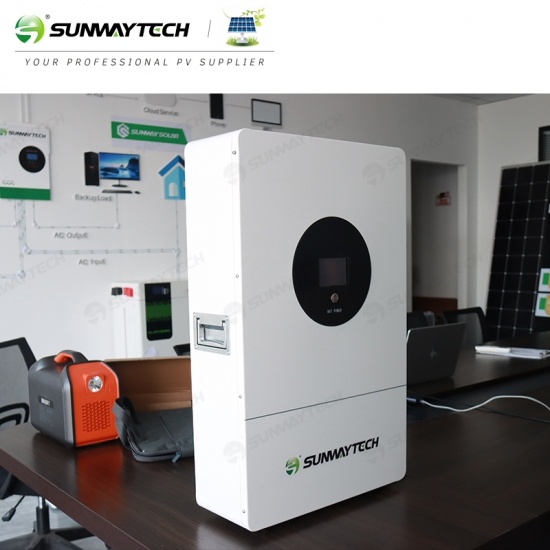

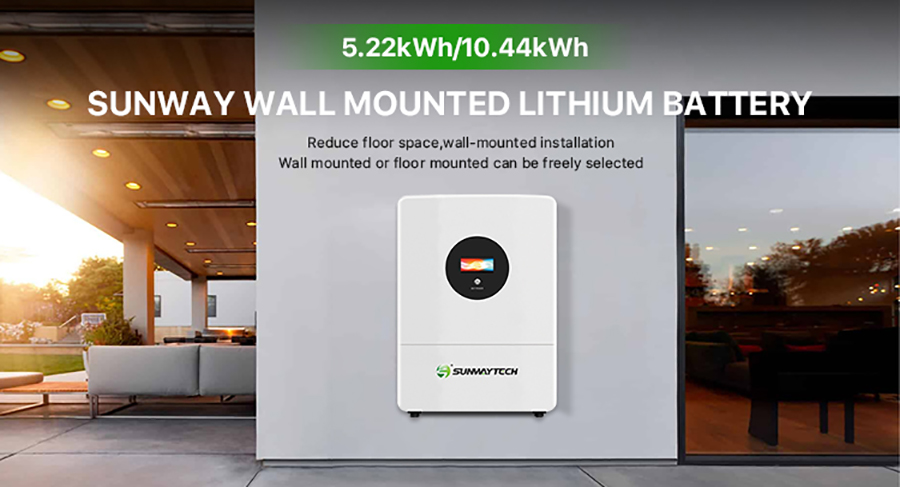

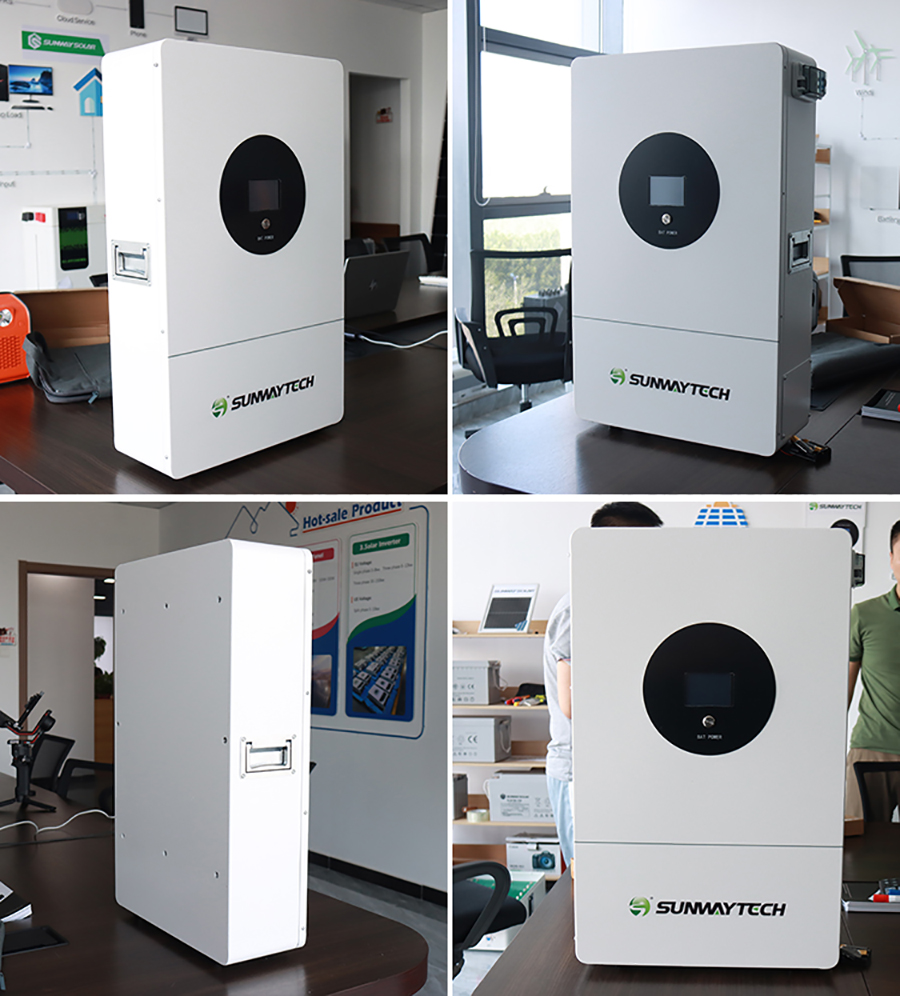

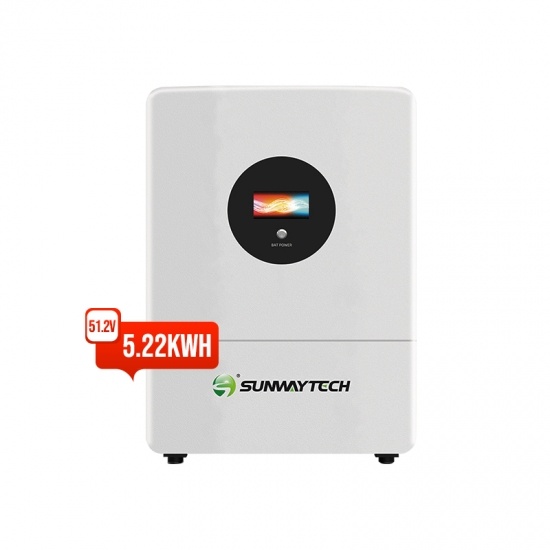

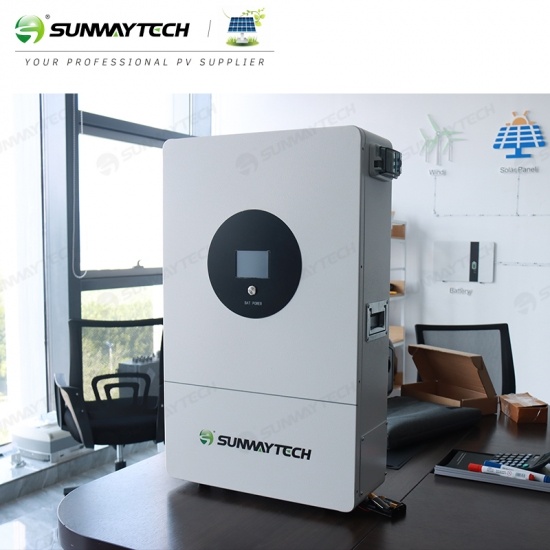

pvcellschain wall-mounted battery with a capacity of 5.22 to 10.44kWh is an innovative energy storage solution for homes and commercial buildings. This battery is sleek and compact, designed to be mounted on a wall, making it ideal for those who have limited space.
The high-performance battery can store excess energy generated by solar panels or wind turbines, allowing users to use the stored energy during peak energy demand or when renewable energy sources are not producing enough energy.
|
Models
|
SW51B100TW2
|
SW51B200TW2
|
|
Usable Capacity
|
5.22kWh
|
10.44kWh
|
|
Normal Capacity
|
102Ah
|
204Ah
|
|
Voltage
|
51.2V
|
51.2V
|
|
Discharge Voltage Range
|
43.2V~58.4V
|
43.2V~57.6V
|
|
Max.Charging/Discharging Current
|
75A
|
100A
|
|
Max.Output Power
|
3840W
|
5120W
|
|
Rated Output Power
|
3840W
|
5120W
|
|
DOD
|
90%
|
90%
|
|
Modules Connection
|
1-32 inparalle
|
1-8 inparallel
|
|
Communication
|
CAN/RS485
|
CAN/RS485
|
|
Cycle Life
|
≥6000
|
≥6000
|
|
Working Temp.Range
|
Charge: 0℃~+55℃;Discharge: -10℃~+55℃
|
Charge: 0°C~+55°C;Discharge: -10°C~+55°C
|
|
Storage Temperature
|
-10℃~+35℃
|
-10°C~+35°C
|
|
Net Weight
|
48.5kg
|
94kg
|
|
Gross Weight
|
52.5kg
|
125kg
|
|

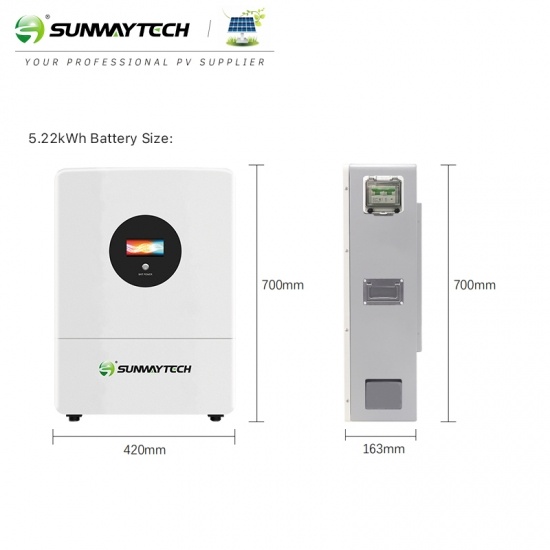

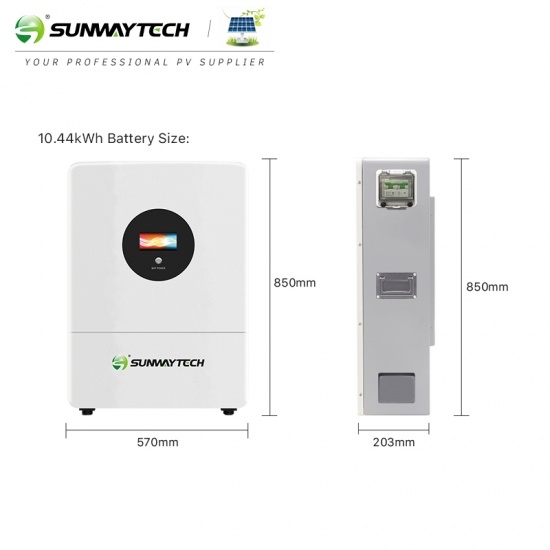

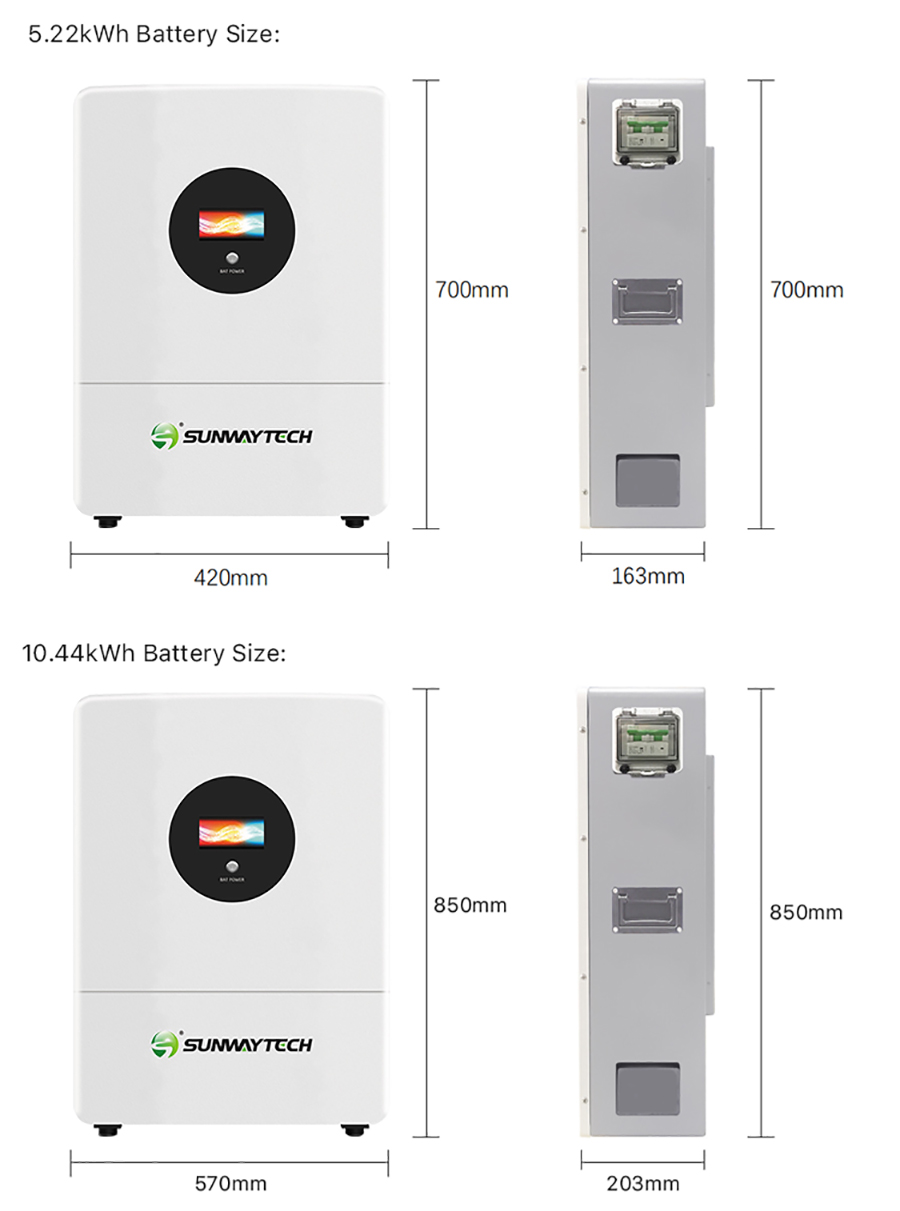

Product Dimension
|
420*163*700mm
|
850*570*203mm
|
|
Design Life
|
10years
|
|
|
Features
|
HD touch screen,active balance
|
|
The lithium iron phosphate rechargeable battery system features wall mounting, IP62 protection for outdoor use, over 6000 charge cycles or 10-year lifespan, and compatibility with popular off-grid inverters through standard CAN and RS485 communication protocols.
The lithium iron phosphate rechargeable battery system features wall mounting, IP62 protection for outdoor use, over 6000 charge cycles or 10-year lifespan, and compatibility with popular off-grid inverters through standard CAN and RS485 communication protocols.
